The fundamental power of a hydraulic press stems from its ability to achieve massive force multiplication through a simple principle of fluid dynamics. By applying a small amount of force to an incompressible liquid in a confined system, the press generates a significantly larger output force, governed by the ratio of the piston sizes within that system.
The immense force of a hydraulic press is not magic; it is a direct application of Pascal's Law. While this principle creates the power, it is the sophisticated control systems that make this power precise, repeatable, and useful for complex industrial tasks.

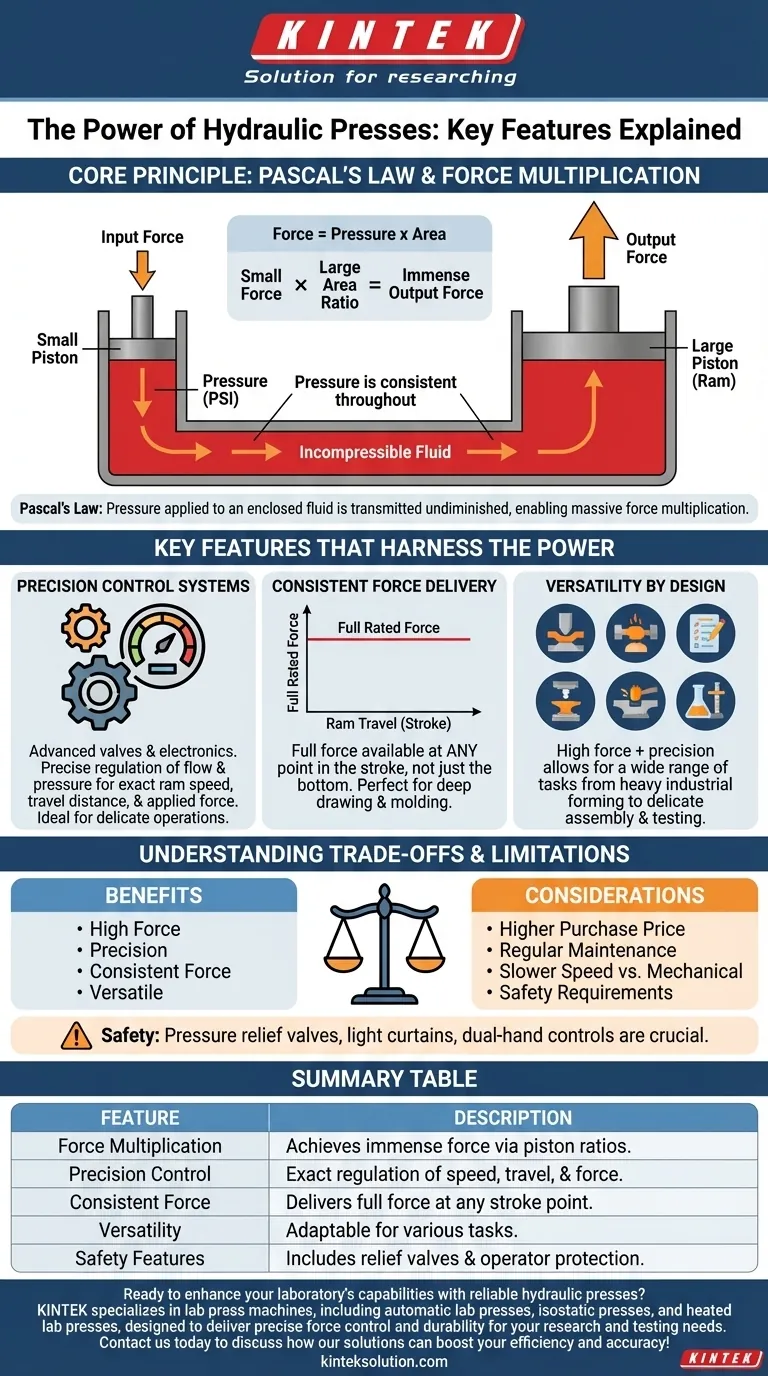

The Core Principle: Pascal's Law and Force Multiplication
The defining feature of a hydraulic press is its use of a confined fluid to transmit and multiply force. This concept, known as Pascal's Law, is the foundation of its strength.
How Pascal's Law Works
Pascal's Law states that pressure applied to an enclosed, incompressible fluid is transmitted undiminished to every portion of the fluid and the walls of the containing vessel. In a hydraulic press, this fluid is typically oil.
This means that the pressure (measured in pounds per square inch or PSI) is consistent throughout the entire hydraulic circuit.
The Power of Piston Ratios
The system uses two pistons of different sizes: a small "input" piston and a large "output" piston (the ram). When a small force is applied to the small piston, it creates pressure in the fluid.
This same pressure then acts on the much larger surface area of the output piston. Because Force = Pressure x Area, the resulting output force is multiplied by a factor equal to the ratio of the two piston areas. A small push on one end creates an immense crushing force on the other.
The Role of Hydraulic Fluid
This entire process depends on the fluid being incompressible. Hydraulic oil is used because it resists changes in volume under pressure, ensuring that the force applied is transmitted efficiently with minimal energy loss.
Key Features That Harness the Power
Raw power is useless without control. Several key features work together to make the force generated by a hydraulic press both effective and adaptable.
Precision Control Systems
Modern hydraulic presses are equipped with sophisticated valves and electronic controls. These systems allow operators to precisely regulate the flow rate and pressure of the hydraulic fluid.
This gives exact control over the ram's speed, travel distance, and the amount of force applied, enabling highly delicate and repeatable operations.
Consistent Force Delivery
Unlike a mechanical press where maximum force is only available at the very bottom of the stroke, a hydraulic press can deliver its full, rated force at any point in the ram's travel.
This makes it ideal for deep drawing, molding, or forming operations that require sustained pressure throughout the process.
Versatility by Design
The combination of high force and precision control makes hydraulic presses incredibly versatile. The same machine can be used for a wide range of applications, from high-tonnage metal forming and forging to delicate assembly and material testing.
Understanding the Trade-offs and Limitations
While powerful, hydraulic presses are not the perfect solution for every scenario. Understanding their inherent trade-offs is crucial for making an informed decision.
The Cost of Power and Precision
The components required for high-pressure hydraulic systems—pumps, hardened cylinders, and precision valves—are expensive. This results in a higher initial purchase price compared to many mechanical presses.
Furthermore, these systems require regular maintenance, including fluid changes, filter replacements, and seal inspections, to ensure longevity and prevent leaks.
Inherent Safety Requirements
The immense forces at play necessitate robust safety features. All hydraulic presses are equipped with pressure relief valves that act as a crucial failsafe, preventing the system from exceeding its maximum designed pressure and avoiding catastrophic failure.
Modern presses also feature light curtains, interlocking physical guards, and dual-hand controls to protect the operator.
The Speed vs. Power Trade-off
Generally, hydraulic presses are slower than their mechanical counterparts. Moving large volumes of oil to generate force takes more time than the direct crank action of a mechanical press, which limits their suitability for high-speed, high-volume stamping operations.
Making the Right Choice for Your Application
Choosing the right press means aligning the technology with your primary goal.
- If your primary focus is maximum force and deep drawing: A hydraulic press is the superior choice due to its ability to deliver consistent force throughout the entire stroke.
- If your primary focus is precision and control: The advanced valve systems in a hydraulic press offer unmatched control over ram speed and pressure, which is critical for complex forming or molding.
- If your primary focus is high-speed production: A mechanical press is often more suitable for rapid, repetitive tasks like blanking or punching due to its faster cycle times.
- If your primary focus is low initial cost and simple maintenance: A manual or pneumatic press might be a better fit for lower-tonnage applications.
Ultimately, understanding that a hydraulic press uses fluid to convert controlled pressure into massive, usable force is the key to leveraging its unique capabilities.
Summary Table:
| Feature | Description |
|---|---|
| Force Multiplication | Achieves immense output force through piston area ratios based on Pascal's Law. |
| Precision Control | Uses valves and electronics for exact ram speed, travel, and force regulation. |
| Consistent Force | Delivers full rated force at any point in the ram's stroke, ideal for deep drawing. |
| Versatility | Adaptable for various tasks like metal forming, forging, and material testing. |
| Safety Features | Includes pressure relief valves, light curtains, and dual-hand controls for operator protection. |
