What are the main categories of presses based on their design? Explore Power and Frame Types for Your Lab

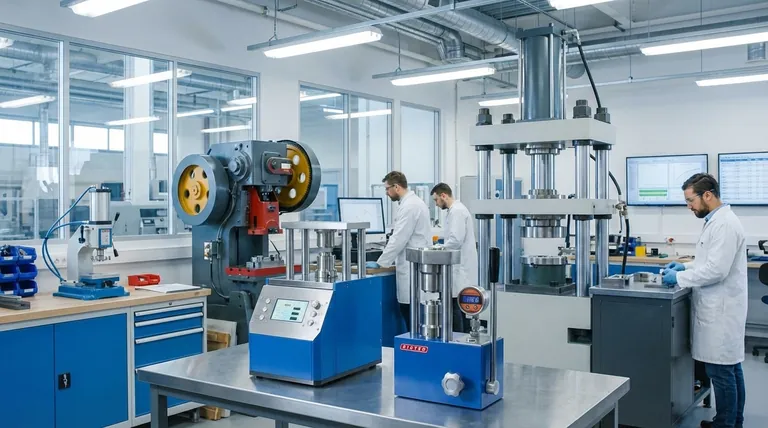

At a high level, presses are often categorized by their physical footprint as either benchtop or floor-standing models. However, these labels refer more to size and mounting than to core engineering design. The truly meaningful design categories are based on the mechanism used to generate force and the structure of the press frame itself.

To truly understand press design, you must look past its size. The critical distinctions lie in its power source (mechanical, hydraulic, pneumatic, servo) and its frame type (C-frame vs. H-frame), as these elements fundamentally dictate its speed, force, control, and suitability for a specific task.

The Two Pillars of Press Design: Power and Frame

While a press's size gives a clue to its general capacity, its internal workings and structure are what define its performance. These two aspects—the drive system and the frame—are the primary ways engineers and technicians classify presses.

Classification by Power Source

The "engine" of the press determines how it delivers force. Each type has a distinct performance profile.

  • Mechanical Presses: These use a motor to spin a heavy flywheel. When activated, a clutch connects the flywheel to a crankshaft or eccentric gear, which drives the ram in a powerful, rapid stroke. They are known for high speed and are the standard for high-volume blanking and stamping.
  • Hydraulic Presses: These use a motor-driven pump to move hydraulic fluid into a cylinder, pushing a piston to move the ram. They are prized for delivering consistent, full tonnage at any point in the stroke and can hold that pressure for extended periods. This makes them ideal for deep drawing, forming, and molding.
  • Pneumatic Presses: Operating on the same principle as hydraulics, these presses use compressed air instead of fluid. They are much faster-acting than hydraulics but are limited to lower-force applications, typically under 5 tons. They are common for light punching, crimping, and assembly.
  • Servo Presses: These represent the most advanced technology, using a high-torque electric servo motor directly linked to the drive mechanism (like a ballscrew). This eliminates the flywheel and clutch, offering complete, programmable control over the ram's speed, position, and force throughout the entire stroke.

Classification by Frame Structure

The frame is the backbone of the press, managing the immense forces at play. Its shape dictates both rigidity and accessibility.

  • C-Frame (or Gap-Frame): This design is shaped like the letter "C," providing open access on three sides. This makes it easy to load material and install tooling. Benchtop presses are almost universally C-frame designs.
  • H-Frame (or Straight-Side): This design features two or four columns, creating a solid, box-like structure. This makes the press extremely rigid and resistant to deflection under load, which is critical for precision work and maintaining tool life. Most high-tonnage presses are H-frame designs.

Understanding the Key Trade-offs

Choosing a press involves balancing competing performance characteristics that stem directly from its design.

Speed vs. Dwell and Control

A mechanical press is built for speed, completing a full stroke in a fraction of a second. However, it only reaches its rated tonnage at the very bottom of the stroke.

A hydraulic press is generally slower but can exert its full rated force at any point. More importantly, it can "dwell" under full pressure, which is essential for many forming and molding applications.

Force vs. Programmability

Hydraulic presses are the champions of raw power, capable of generating thousands of tons of force relatively economically.

Servo presses offer a lower tonnage ceiling but provide unparalleled programmability. This allows for complex stroke profiles, such as slowing down upon contact with the part to reduce shock and then applying precise force.

Accessibility vs. Rigidity

The C-frame's open design is its greatest strength, simplifying part loading and die changes. However, under extreme force, the "gap" in the C-frame can spread apart—a phenomenon known as "yawning"—which can compromise part accuracy and accelerate tool wear.

The H-frame's closed, rigid structure virtually eliminates deflection, ensuring consistent precision even with off-center loads. The trade-off is reduced access from the sides, which can complicate certain automation or loading scenarios.

Making the Right Choice for Your Goal

Your application's specific requirements will point you to the correct press design.

  • If your primary focus is high-volume stamping or blanking: A mechanical press is your default choice for its unmatched speed and efficiency.
  • If your primary focus is deep drawing, molding, or assembling large parts: A hydraulic press offers the sustained, controllable force required for these tasks.
  • If your primary focus is ultimate precision, forming exotic materials, or data collection: A servo press provides unparalleled control and feedback over the entire process.
  • If your primary focus is light assembly or punching with easy part handling: A C-frame press, often pneumatic or hydraulic, offers the best combination of access and sufficient force.

By understanding the core principles of power and frame design, you can move beyond simple size labels and confidently select the right press that functions as a precise tool for your specific manufacturing challenge.

Summary Table:

Category Key Features Ideal Applications
Power Source
Mechanical High speed, flywheel-driven High-volume stamping, blanking
Hydraulic Consistent force, dwell capability Deep drawing, molding, forming
Pneumatic Fast-acting, low force Light punching, crimping, assembly
Servo Programmable control, precise feedback Precision forming, data collection
Frame Type
C-Frame Open access, easy loading Benchtop use, light assembly
H-Frame High rigidity, minimal deflection Precision work, high-tonnage tasks
