The application note in question explains the fundamental process for preparing potassium bromide (KBr) pellets for Fourier Transform Infrared (FTIR) spectroscopy. It positions this transmission method as a valuable tool for specific applications by highlighting its key advantages over the more common Attenuated Total Reflectance (ATR) technique.
While modern ATR offers unmatched speed and convenience, the KBr pellet technique remains the gold standard for applications demanding the highest spectral resolution and accurate quantitative analysis. Understanding the trade-offs between them is crucial for obtaining reliable data.
The Fundamentals of the KBr Pellet Technique
The core objective of the KBr pellet method is to suspend a solid sample within an infrared-transparent matrix. This allows the IR beam to pass directly through the sample, a process known as transmission spectroscopy.
Why Potassium Bromide (KBr)?
Potassium bromide is the salt of choice for this technique for two primary reasons. First, it is transparent to infrared radiation across the vast majority of the mid-IR spectrum (typically 4000 cm⁻¹ to 400 cm⁻¹), ensuring it doesn't add interfering signals. Second, it is a soft, crystalline salt that flows well under pressure to form a stable, glass-like transparent disc.
The Core Process: Grinding
The first critical step is to thoroughly grind a very small amount of sample (typically 0.1% to 1.0% by weight) with pure, dry KBr powder. The goal is to reduce the sample's particle size to below the wavelength of the infrared light being used. Insufficient grinding causes light scattering, which distorts the spectrum and reduces the quality of the data.
The Core Process: Pressing
The finely ground mixture is then placed into a pellet die and pressed under high pressure (typically 7-10 tons). This immense force causes the KBr to fuse into a solid, transparent, or translucent pellet that holds the sample particles uniformly, ready for analysis in the spectrometer's sample holder.
Key Advantages of KBr Pellets Over ATR
While ATR has become the default for many labs due to its ease of use, the application note emphasizes situations where KBr pellets provide superior results.
Superior Spectral Quality
When prepared correctly, KBr pellets can yield spectra with sharper peaks and a flatter, more consistent baseline. This is because transmission is a more direct measurement, avoiding potential spectral artifacts related to the depth of penetration and crystal contact that can sometimes occur in ATR.
Gold Standard for Quantitative Analysis
The KBR pellet method is ideal for quantitative work, where the goal is to determine the concentration of a substance. This is because transmission measurements adhere more strictly to the Beer-Lambert Law, which provides a direct linear relationship between absorbance and concentration. ATR data often requires complex corrections to achieve similar linearity.
Unrestricted Spectral Range
The KBr matrix is transparent across the entire mid-infrared range. This gives you access to the full spectral "fingerprint" of your compound. Some ATR crystals, particularly Germanium (Ge), have a more limited spectral range and cut off the lower frequency region, which can contain valuable information.
Understanding the Trade-offs and Pitfalls
The power of the KBr technique comes with significant practical challenges that must be managed to produce good data.
The Challenge of Moisture
KBr is highly hygroscopic, meaning it readily absorbs water from the atmosphere. Any absorbed water will produce a large, broad absorbance band in the spectrum (around 3400 cm⁻¹) that can easily obscure important N-H or O-H stretching vibrations from the actual sample. Using oven-dried KBr and working quickly is essential.
Technique-Dependent Results
The quality of a KBr pellet spectrum is highly dependent on the skill of the analyst. Inconsistent grinding, improper sample concentration, or insufficient pressure can all lead to poor-quality, non-reproducible results. This contrasts sharply with the high reproducibility of modern ATR.
Destructive and Time-Consuming
The process of grinding and pressing is inherently destructive; the sample is intimately mixed with KBr and cannot be recovered. The entire preparation process is also far more laborious and time-consuming than placing a sample on an ATR crystal.
Making the Right Choice for Your Analysis
Choosing between KBr and ATR is not about which is "better" overall, but which is the right tool for your specific analytical goal.
- If your primary focus is speed and high-throughput analysis: Choose ATR for its unmatched convenience, minimal sample preparation, and non-destructive nature.
- If your primary focus is creating a high-quality spectral library or publication-grade data: Use the KBr pellet method to obtain high-resolution spectra with flat baselines.
- If your primary focus is quantitative analysis (measuring concentration): The KBr pellet technique is the preferred method for its adherence to the Beer-Lambert Law.
- If your sample is aqueous, a paste, or cannot be ground: ATR is your only viable option, as moisture is the enemy of KBr and liquids cannot be pressed into a pellet.
Ultimately, mastering both techniques allows you to select the optimal method based on the sample properties and the analytical question at hand.
Summary Table:
| Aspect | Details |
|---|---|
| Technique | KBr pellet preparation for FTIR spectroscopy |
| Key Advantages | Superior spectral quality, accurate quantitative analysis, unrestricted spectral range |
| Common Challenges | Moisture sensitivity, technique-dependent results, time-consuming process |
| Ideal For | High-resolution spectra, quantitative analysis, spectral library creation |
| Comparison with ATR | Better for resolution and quantification; ATR is faster and more convenient for some samples |
Enhance your laboratory's FTIR spectroscopy with KINTEK's reliable lab press machines! Whether you're preparing KBr pellets for superior spectral quality or need precise equipment for quantitative analysis, our automatic lab presses, isostatic presses, and heated lab presses are designed to meet your laboratory needs. Achieve consistent, high-quality results with our durable and efficient solutions. Contact us today to discuss how we can support your research and improve your data accuracy!

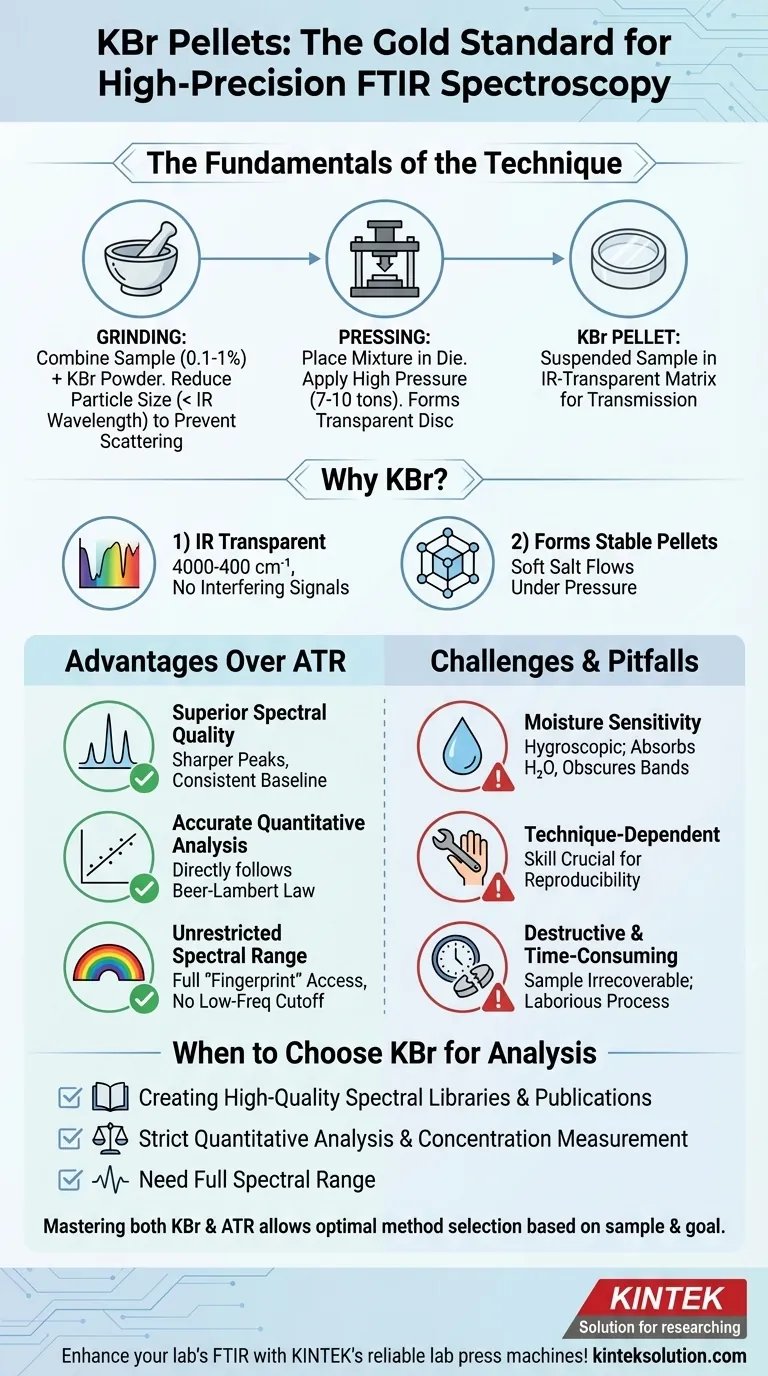

Visual Guide
