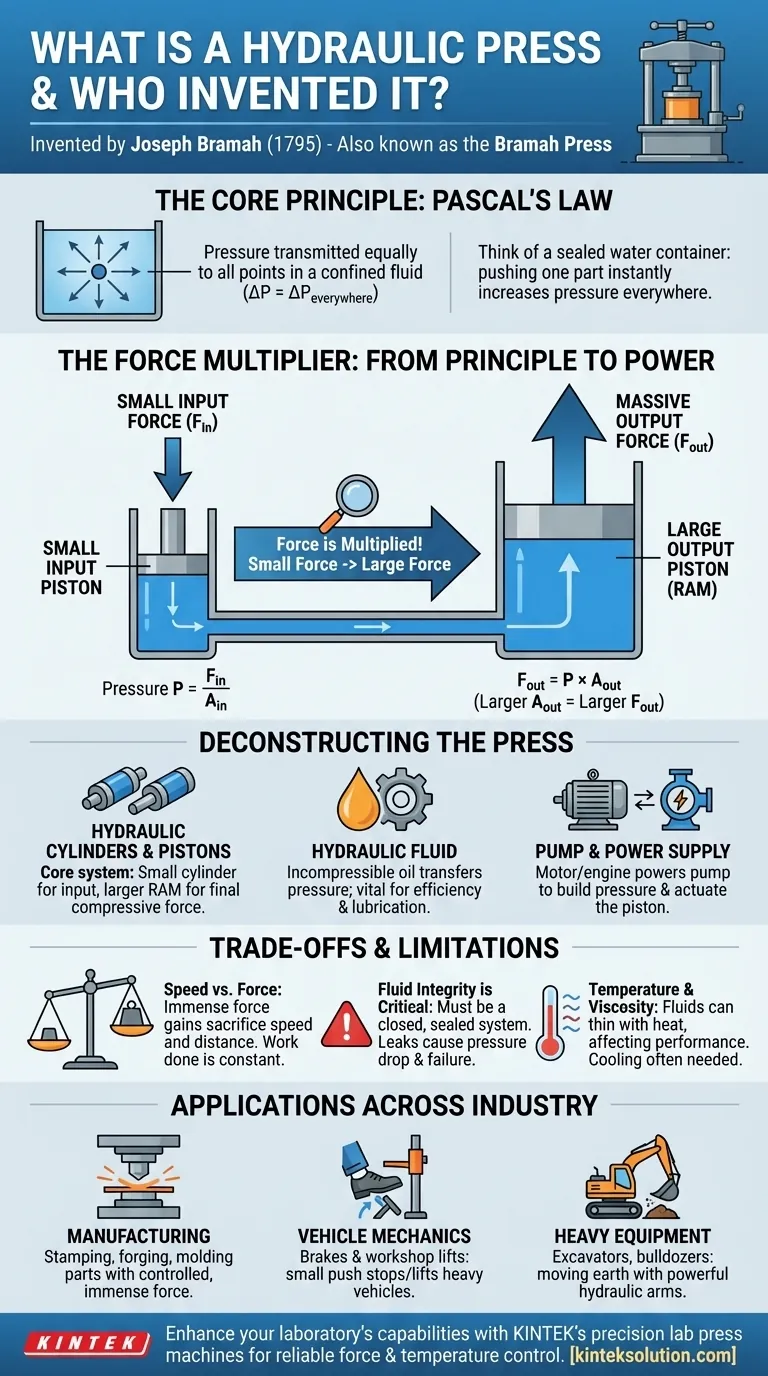

In short, a hydraulic press is a machine that uses a confined liquid to create immense compressive force. It was invented by the English inventor Joseph Bramah in 1795 and is sometimes still known as the Bramah Press. The device operates on a fundamental principle of fluid mechanics to turn a small input force into a massive output force.
The core concept is simple yet powerful: a small force applied to a fluid in a small area generates pressure. This pressure is transmitted equally throughout the fluid, and when it acts on a larger area, it produces a proportionally larger force, enabling the machine to crush, stamp, or lift with incredible power.
The Core Principle: Understanding Pascal's Law
The entire function of a hydraulic press hinges on a single, elegant law of physics discovered by Blaise Pascal in the 17th century.
What is Pascal's Law?
Pascal's Law states that a pressure change at any point in a confined, incompressible fluid is transmitted equally to all points throughout the fluid.
Think of it like a sealed container full of water. If you push on one part of the container, the pressure doesn't just stay in that spot; it instantly increases everywhere inside the container.
From Principle to Power: The Force Multiplier
This principle is what allows the press to multiply force. The system uses two connected cylinders, each with a piston, but of very different sizes.
A small force is applied to the small piston. This creates pressure in the hydraulic fluid (Pressure = Force / Area).
Because this pressure is transmitted فيلم to the large piston, the same pressure now acts on a much larger surface area. Since Output Force = Pressure × Area, a larger area results in a dramatically larger output force.
This is the magic of the hydraulic press: you trade a long, easy push on a small piston for a short, incredibly powerful push from a large one.
Deconstructing the Hydraulic Press
While designs vary, nearly all hydraulic presses are built from a few key components working in concert.
Hydraulic Cylinders and Pistons
These are the core of the machine. The system has a small cylinder for the input force and a much larger one (often called the ram) that delivers the final compressive force.
Hydraulic Fluid
This is the medium that transfers the pressure. While early versions used water, modern presses use specialized, incompressible oils designed for stability and lubrication. The fluid's inability to be compressed is critical to the system's efficiency.
The Pump and Power Supply
A pump, powered by an electric motor or engine, is used to apply the initial force to the hydraulic fluid. This pump moves the fluid into the cylinder, building the pressure needed to actuate the piston.
Understanding the Trade-offs and Limitations
The force multiplication आधुनिक hydraulic presses offer is not without its trade-offs. It is governed by the laws of physics, which demand a balanced exchange.
The Speed vs. Force Exchange
The most significant trade-off is speed. To achieve immense force, the large ram piston moves very slowly and over a much shorter distance compared to the small input piston. The work done (Force × Distance) remains constant, so gaining force means sacrificing distance and speed.
Fluid Integrity is Critical
The system is entirely dependent on being a closed, sealed system. Any leak, no matter how small, will cause a drop in pressure and a catastrophic loss of force. Robust seals and strong hosing are non-negotiable for safety and performance.
Temperature and Viscosity
Hydraulic fluids can change their viscosity (thickness) with temperature. If the system overheats, the fluid can thin out, impacting performance and potentially damaging the pump. Proper cooling is often necessary for industrial applications.
How This Principle Applies to Your Field
Understanding the hydraulic press is not just academic; it's the foundation for countless tools and systems used across modern industry.
- If your primary focus is manufacturing: You'll see hydraulic presses used for stamping sheet metal, forging parts, and molding plastics, where controlled, immense force is essential.
- If your primary focus is vehicle mechanics: You'll recognize this principle in car brakes and workshop lifts, where a small push on a pedal or lever can stop a heavy vehicle or lift it for service.
- If your primary focus is heavy equipment: You'll find this principle at work in the arms of excavators and the cylinders of bulldozers, enabling them to move tons of earth with precision.
Ultimately, the hydraulic press is a perfect demonstration of how a simple physical law can be engineered into one of the most powerful tools of industry.
Summary Table:
| Aspect | Details |
|---|---|
| Inventor | Joseph Bramah (1795) |
| Core Principle | Pascal's Law: Pressure in a confined fluid is transmitted equally |
| Key Components | Hydraulic cylinders, pistons, fluid, pump |
| Main Applications | Manufacturing (stamping, forging), vehicle brakes, heavy machinery |
| Limitations | Speed vs. force trade-off, requires sealed system, temperature sensitivity |
