The primary use of a KBr Pellet Press is to prepare solid samples for analysis via Fourier Transform Infrared (FTIR) spectroscopy. It works by compacting a finely ground mixture of the sample material and high-purity potassium bromide (KBr) powder under immense pressure. This process creates a thin, semi-transparent disc, or "pellet," that allows infrared light to pass through for accurate chemical analysis.
The core challenge in analyzing solid samples with FTIR is that they are typically opaque. The KBr press solves this by embedding the sample within a KBr matrix that is transparent to infrared radiation, allowing the spectrometer to measure the sample's chemical fingerprint without interference.
The Principle: Creating an Optically Clear Solid
Why Potassium Bromide (KBr)?
Potassium bromide is the standard for this technique because it has a crucial property: it does not absorb infrared radiation in the mid-infrared range (4000-400 cm⁻¹) where most organic and inorganic compounds show their characteristic absorption bands.
This makes KBr an ideal, invisible "window" for the spectrometer's light beam, ensuring that the resulting spectrum represents only the sample itself.
The Role of High Pressure
A KBr pellet press is a type of hydraulic press, meaning it uses fluid pressure to generate significant force. This high, uniform pressure is essential for fusing the fine KBr and sample particles together.
The force eliminates air pockets and minimizes light scattering at the particle boundaries, creating a homogenous, glass-like pellet that is mechanically stable and optically clear.
The Standard Preparation Process
The method is straightforward and effective. First, a tiny amount of the solid sample (typically 1-2 mg) is thoroughly mixed and ground with a larger amount of dry KBr powder (around 200 mg).
This mixture is then loaded into a pellet die. The die is placed in the press, and pressure is applied for a few minutes to form the final pellet, which is then ready for analysis.
Understanding the Trade-offs
Advantage: High Reproducibility
The precise control offered by a hydraulic press with an integrated pressure gauge ensures that every pellet can be made with the same density and thickness. This consistency is critical in applications like pharmaceutical quality control, where results must be highly repeatable.
Advantage: Simplicity and Cost-Effectiveness
Compared to other analytical equipment, the KBr press is mechanically simple, durable, and has a low cost of ownership. Its ease of use and compact size make it a staple in both research and teaching laboratories.
Limitation: A Highly Specific Application
This is not a general-purpose lab press. Its design and function are almost exclusively dedicated to preparing KBr pellets for FTIR spectroscopy.
Limitation: Low Throughput
The process is inherently manual and requires careful preparation for each sample. This makes it unsuitable for high-throughput environments where hundreds of samples must be analyzed daily.
Making the Right Choice for Your Goal
Ultimately, the decision to use a KBr press depends on your specific analytical needs.
- If your primary focus is research or quality control requiring high-fidelity spectra: The KBr pellet method is a gold standard for obtaining clear, reliable, and reproducible results from solid samples.
- If your primary focus is high-volume screening: A manual press will be a bottleneck; you should consider alternative FTIR sampling accessories like Attenuated Total Reflectance (ATR).
- If your primary focus is education or a budget-constrained lab: The press's low cost, durability, and straightforward operation make it an ideal and essential tool for fundamental spectroscopic analysis.
The KBr Pellet Press is a dedicated instrument that masters a single, critical task: preparing solid samples for definitive infrared analysis.
Summary Table:
| Aspect | Details |
|---|---|
| Primary Use | Prepares solid samples for FTIR spectroscopy by creating transparent KBr pellets |
| Key Principle | Uses high-purity KBr powder, transparent to IR, and high pressure for clear, stable pellets |
| Advantages | High reproducibility, simplicity, cost-effectiveness, ideal for research and education |
| Limitations | Specific to FTIR, low throughput, manual process unsuitable for high-volume screening |
| Ideal For | Labs focused on precise chemical analysis, quality control, or budget-friendly setups |
Ready to enhance your lab's FTIR analysis with reliable sample preparation? KINTEK specializes in high-quality lab press machines, including automatic, isostatic, and heated lab presses tailored for laboratory needs. Our KBr pellet presses ensure precise, reproducible results for your research or quality control workflows. Contact us today to discuss how our solutions can optimize your spectroscopic processes and boost efficiency!

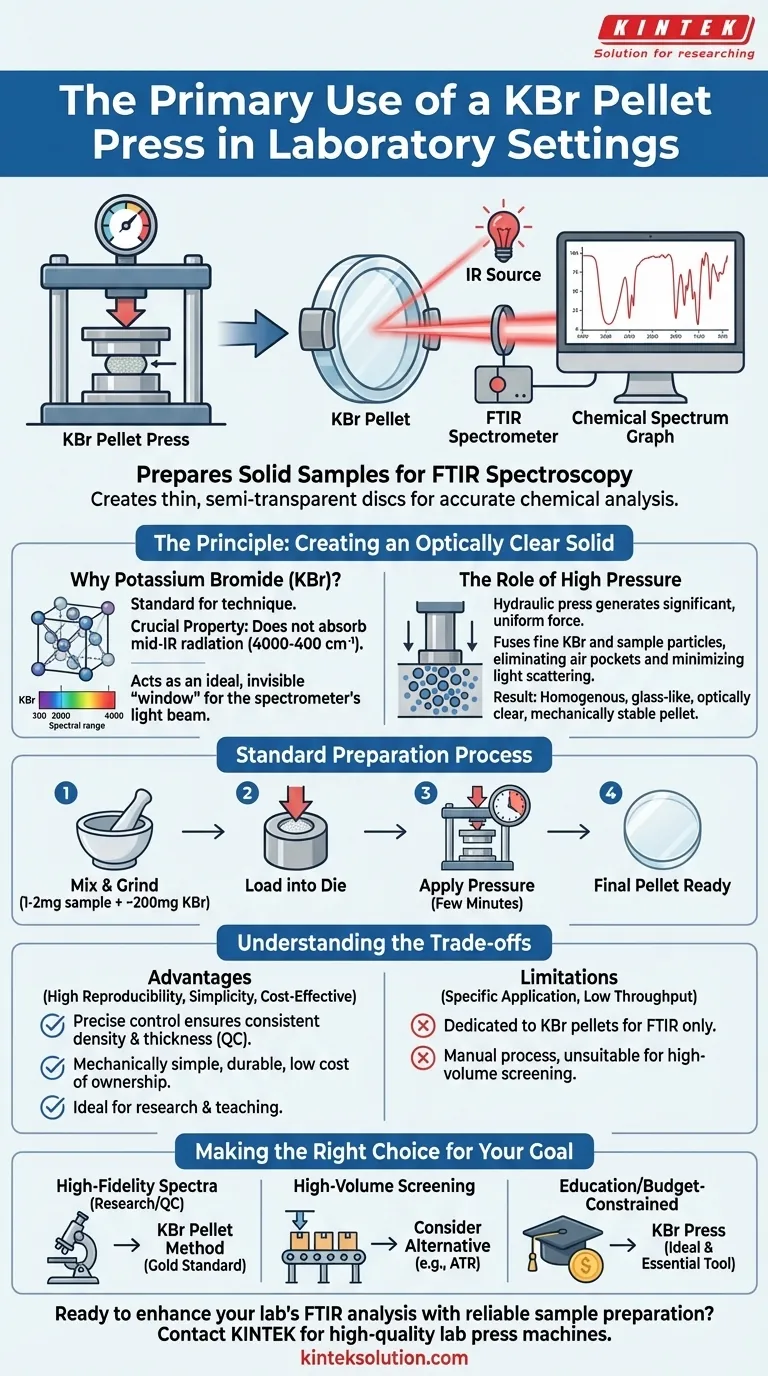

Visual Guide
