In short, Cold Isostatic Pressing (CIP) is highly versatile, commonly used for compacting powdered forms of metals, ceramics, plastics, and graphite. The process is chosen for its unique ability to apply uniform pressure, resulting in a pre-sintered component with exceptionally consistent density and strength.
The core value of Cold Isostatic Pressing is not merely its compatibility with a wide range of materials, but its ability to transform their powders into a uniform, high-density "green" compact. This makes it an indispensable preparatory step for creating superior, high-performance components.
Why CIP Excels for Powdered Materials
Cold Isostatic Pressing isn't just another shaping method; it is a specialized densification process. It solves fundamental problems encountered when trying to compact powders using traditional mechanical presses.
Achieving Uniform Density

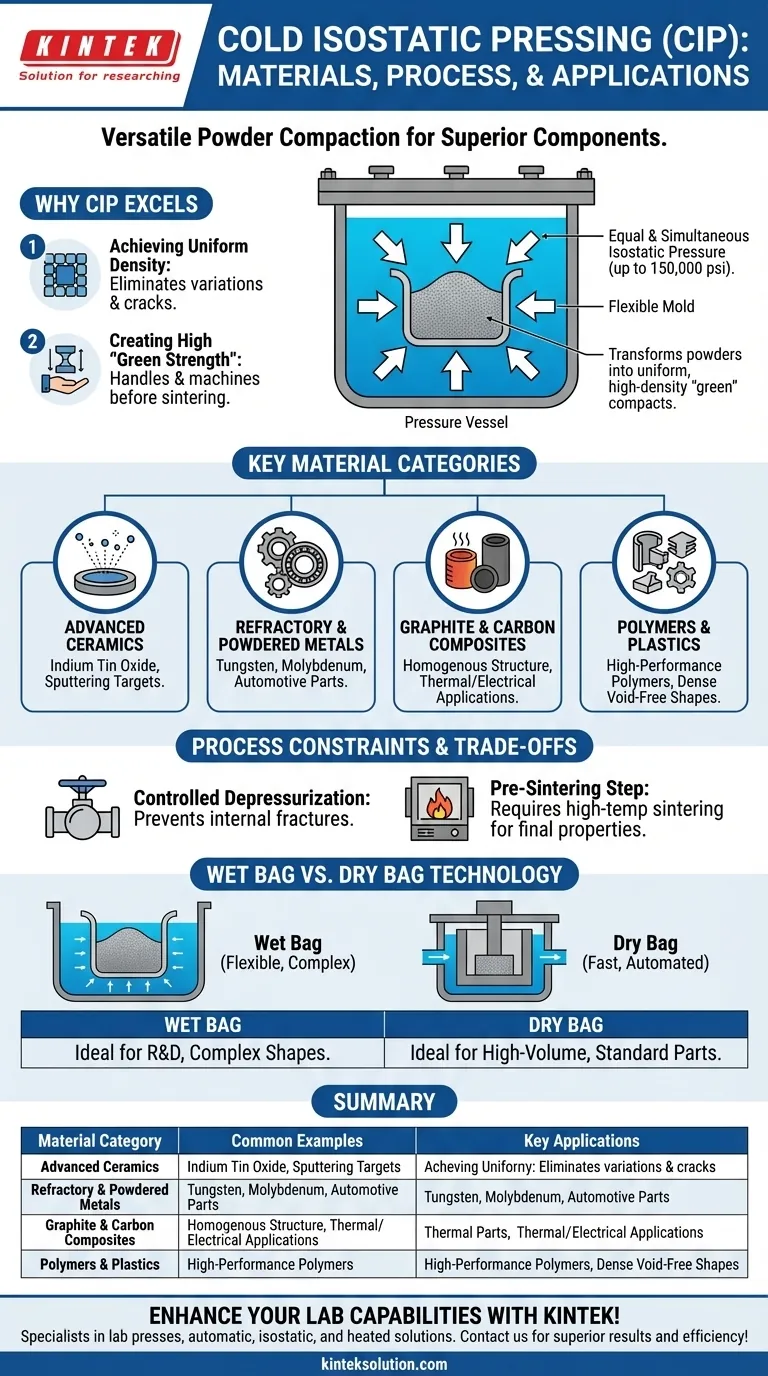

In CIP, the material powder is sealed in a flexible mold and submerged in a fluid (typically oil or water). Pressure is then applied to the fluid, which transmits it equally and simultaneously from all directions onto the mold.
This isostatic pressure, which can range from 60,000 to 150,000 psi (400 to 1000 MPa), eliminates the density variations, internal stresses, and potential cracks common in uniaxial (top-down) pressing.
Creating High "Green Strength"
The output of a CIP cycle is a "green compact." While not yet fully fused, this part has remarkable mechanical strength and integrity.
This high green strength means the component can be handled, transported, and even machined before the final, energy-intensive sintering stage, offering significant manufacturing flexibility.
Key Material Categories and Applications
CIP is not limited to a single industry. Its ability to create dense, uniform parts makes it critical for manufacturing advanced components across several fields.
Advanced Ceramics
CIP is essential for producing high-purity, high-density ceramics. A prime example is manufacturing sputtering targets, like indium tin oxide, where the process can achieve pre-sintering densities of up to 95%.
Refractory and Powdered Metals
Materials with extremely high melting points, such as tungsten, molybdenum, and tantalum, are difficult to cast or forge. CIP allows these refractory metals to be compacted from powder into a near-net shape before sintering.
It is also widely used in powder metallurgy for automotive components like bearings and oil pump gears, as well as for various aluminum, magnesium, and copper alloys.
Graphite and Carbon Composites
The uniform pressure of CIP is ideal for compacting graphite and other carbon-based materials. It ensures a homogenous structure, which is crucial for applications requiring consistent thermal and electrical properties.
Polymers and Plastics
While more commonly associated with metals and ceramics, CIP is also effective for compacting certain high-performance polymers. It provides a method for creating dense, void-free plastic shapes for specialized applications.
Understanding the Process Constraints and Trade-offs
While powerful, CIP requires precise control and an understanding of its operational trade-offs to be successful.
The Critical Role of Depressurization
Just as important as applying pressure is releasing it. The rate of depressurization must be carefully controlled. Releasing pressure too quickly can cause trapped gases to expand, leading to internal fractures and ruining the component.
Wet Bag vs. Dry Bag Technology
There are two primary CIP methods, each with distinct advantages:
- Wet Bag CIP: The sealed mold is physically submerged in the pressure fluid. This method is slower but offers maximum flexibility for complex shapes and is ideal for R&D or low-volume production.
- Dry Bag CIP: The flexible mold is integrated directly into the pressure vessel. This approach is much faster, easily automated, and suited for the high-volume production of simpler, standardized parts.
An Essential Pre-Sintering Step
It is crucial to recognize that CIP is typically a precursor to sintering. The green compact does not have the final properties of a fully dense part. It must undergo a subsequent high-temperature sintering cycle to bond the material particles and achieve its final strength and hardness.
Making the Right Choice for Your Goal
Your specific manufacturing goal will determine how you leverage Cold Isostatic Pressing.
- If your primary focus is maximum density and complex shapes: Wet Bag CIP is the ideal choice for creating prototypes or intricate components where uniformity is paramount.
- If your primary focus is high-volume, cost-effective production: Dry Bag CIP is the superior method for automating the manufacturing of simpler, standardized parts.
- If your primary focus is processing high-melting-point materials: CIP is an essential step before sintering for refractory metals and advanced ceramics that cannot be processed with traditional methods.
Ultimately, Cold Isostatic Pressing empowers you to create high-integrity components from materials that would otherwise be impossible to form.
Summary Table:
| Material Category | Common Examples | Key Applications |
|---|---|---|
| Advanced Ceramics | Indium Tin Oxide | Sputtering Targets |
| Refractory Metals | Tungsten, Molybdenum | Automotive Components |
| Graphite | Carbon-based Materials | Thermal/Electrical Parts |
| Polymers | High-performance Plastics | Specialized Shapes |
