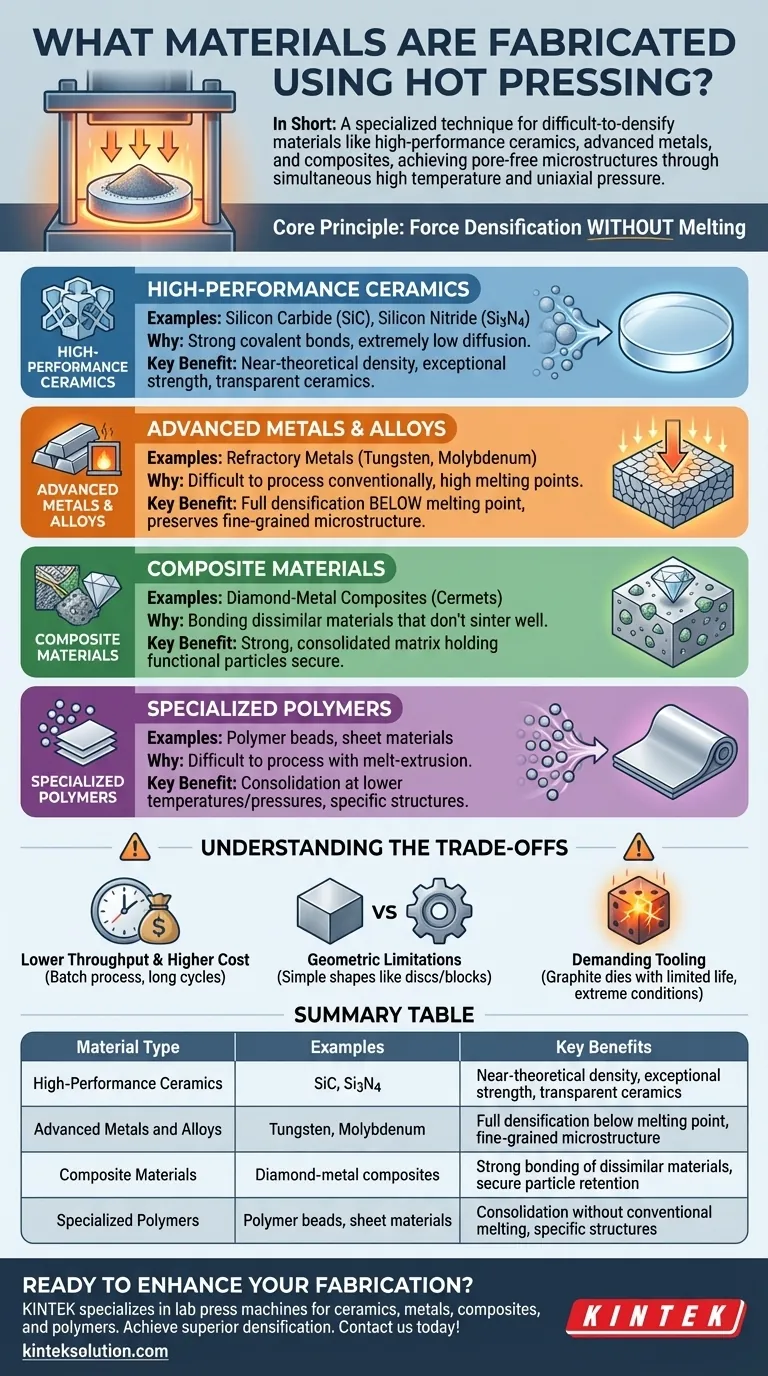

In short, hot pressing is a specialized fabrication technique primarily used for materials that are difficult to densify using other methods. The most common candidates are high-performance ceramics, advanced metals and their alloys, and composites that require a pore-free microstructure to achieve superior mechanical or functional properties. It is also adapted for processing certain polymers, though under less extreme conditions.
The core principle is simple: hot pressing is the method of choice when you need to force material densification without melting. It is selected for materials with low natural diffusion rates or for applications where achieving near-perfect density is more critical than production speed or cost.
Why These Materials Demand Hot Pressing
Hot pressing applies simultaneous high temperature and uniaxial pressure to a material, typically in powder form. This combination dramatically accelerates the diffusion and plastic deformation processes that consolidate the powder into a dense, solid part.
For High-Performance Ceramics
Many advanced ceramics, such as silicon carbide (SiC) and silicon nitride (Si3N4), possess very strong covalent bonds. This results in extremely low diffusion coefficients, meaning their atoms are reluctant to move even at high temperatures.
Conventional sintering, which relies only on heat, is often insufficient to eliminate porosity in these materials. Hot pressing physically forces the powder particles together, closing internal voids to achieve near-theoretical density and exceptional strength. This is also critical for producing transparent ceramics, where any residual porosity would scatter light.
For Advanced Metals and Refractory Alloys
Hot pressing is used for metals that are difficult to process conventionally, such as refractory metals (e.g., tungsten, molybdenum) and certain high-strength alloys.
The key advantage here is achieving full densification at temperatures below the material's melting point. This prevents unwanted grain growth, phase transformations, or segregation of alloying elements, preserving the material's fine-grained microstructure and superior mechanical properties.
For Composite Materials
This technique is essential for fabricating composites by bonding dissimilar materials, such as a ceramic and a metal (a cermet). A prime example is diamond-metal composite cutting tools.
Neither material would sinter well together under normal conditions. Hot pressing provides the necessary energy and force to create a strong, consolidated matrix that securely holds the functional particles (like diamond grit) in place.
For Specialized Polymers
While less common, hot pressing can be used to consolidate polymer beads or sheet materials. The process parameters are significantly different, involving much lower temperatures and pressures compared to ceramics or metals.
It is typically chosen for polymers that are difficult to process with conventional melt-extrusion or injection molding techniques, or for creating specific composite polymer structures.
Understanding the Trade-offs
Hot pressing is a powerful but not universal solution. Its benefits come with significant practical and economic considerations.
Lower Throughput and Higher Cost
Hot pressing is almost always a batch process, not a continuous one. The cycle times for heating, pressing, and cooling can be long, making it significantly slower and more expensive per part compared to high-volume methods like conventional sintering or injection molding.
Geometric Limitations
The use of uniaxial pressure generally restricts hot pressing to producing simple shapes, such as discs, cylinders, or rectangular blocks. Complex, near-net-shape parts are very difficult to achieve, often requiring extensive post-process machining, which adds to the final cost.
Demanding Tooling Requirements
The dies and punches used in hot pressing must withstand extreme temperatures and pressures. Graphite is a common choice, but it has a limited lifespan and can be expensive. For reactive materials, more exotic and costly die materials like tungsten carbide or ceramic composites may be necessary.
Making the Right Choice for Your Goal
Deciding whether to use hot pressing depends entirely on your material and performance objectives.
- If your primary focus is achieving maximum density and superior mechanical properties: Hot pressing is the premier choice for materials like technical ceramics or refractory metals where eliminating porosity is non-negotiable.
- If your primary focus is bonding dissimilar materials into a dense part: Use hot pressing to create high-performance composites, such as cermets or metal matrix composites that cannot be formed otherwise.
- If your primary focus is mass production of geometrically complex parts: You should investigate other methods like powder injection molding (PIM) for metals/ceramics or injection molding for polymers first.
Ultimately, hot pressing is a precision tool for creating elite materials where performance justifies the cost.
Summary Table:
| Material Type | Examples | Key Benefits |
|---|---|---|
| High-Performance Ceramics | Silicon Carbide (SiC), Silicon Nitride (Si3N4) | Near-theoretical density, exceptional strength, transparent ceramics |
| Advanced Metals and Alloys | Tungsten, Molybdenum | Full densification below melting point, fine-grained microstructure |
| Composite Materials | Diamond-metal composites (cermets) | Strong bonding of dissimilar materials, secure particle retention |
| Specialized Polymers | Polymer beads, sheet materials | Consolidation without conventional melting, specific composite structures |
