At its core, a hydraulic press operates on a fundamental principle of fluid mechanics known as Pascal's Law. This law states that pressure applied to an enclosed, incompressible fluid is transmitted undiminished to every portion of the fluid and the walls of the containing vessel. This simple principle allows the machine to convert a small input force into an immensely powerful output force.
A hydraulic press does not create energy, but it masterfully multiplies force. It achieves this by applying the pressure generated by a small force over a small area to a much larger area, resulting in a proportionally larger output force.
Deconstructing Pascal's Law
To understand a hydraulic press, you must first understand the physics that governs it. The entire system is an elegant application of a single, powerful concept.
The Core Idea: Pressure and Confined Fluids
Pascal's Law is specific to fluids (like liquids or gases) that are confined in a sealed system.
When you apply pressure to one point in that system, that exact same amount of pressure is felt everywhere else within the fluid. The fluid acts as a perfect transmitter of that pressure.
The Defining Formula: Pressure = Force / Area
Pressure is simply the amount of force exerted over a specific area. A key insight is that for the same amount of force, you can generate very high pressure by concentrating it on a very small area. Think of how a thumbtack works—your thumb's gentle push creates immense pressure at the tiny tip.
A hydraulic press uses this relationship in reverse to multiply force.
How a Hydraulic Press Applies This Principle
The genius of the hydraulic press is in its mechanical design, which is built to exploit Pascal's Law for practical work.

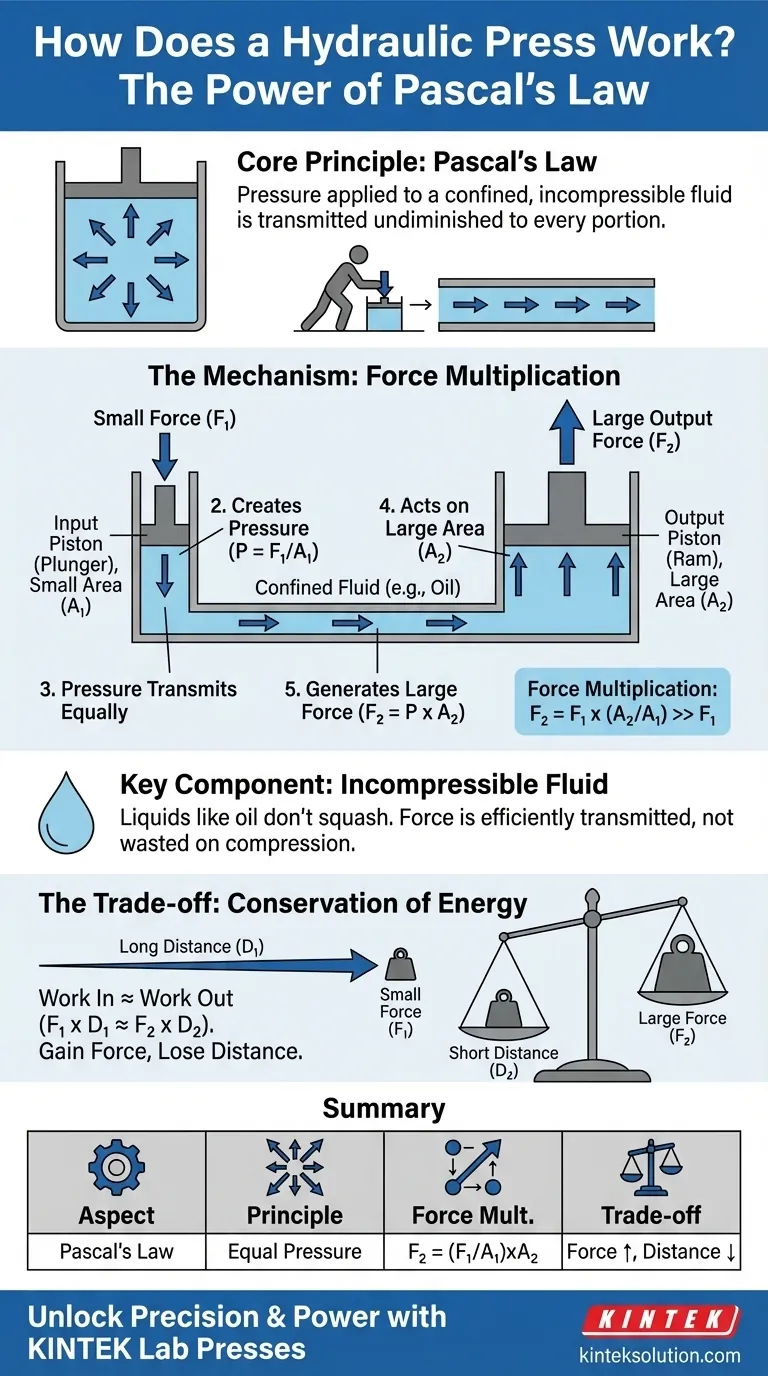

The Two-Piston System
A simple hydraulic press consists of two cylindrical pistons of different sizes, connected by a pipe filled with an incompressible fluid, typically oil.
- The Input Piston (Plunger): This is the smaller piston where a modest initial force is applied.
- The Output Piston (Ram): This is the larger piston that delivers the amplified force to do work, such as crushing a car or shaping a metal sheet.
The Mechanism of Force Multiplication
The process is a straightforward application of the pressure formula.
A small force (F₁) is applied to the small input piston, which has a small area (A₁). This creates a pressure in the fluid: P = F₁ / A₁.
According to Pascal's Law, this pressure (P) is transmitted equally throughout the entire fluid. This same pressure now pushes up on the large output piston, which has a much larger area (A₂).
The resulting output force (F₂) is therefore the pressure multiplied by this larger area: F₂ = P x A₂. Because the pressure is the same, we can see that a larger area directly results in a larger force.
The Role of the Incompressible Fluid
Using a liquid like oil is critical. Liquids are incompressible, meaning they don't squash down when pressure is applied.
This property ensures that the force applied to the input piston is efficiently transmitted to the output piston without being wasted on compressing the fluid itself.
Understanding the Trade-offs
The force multiplication achieved by a hydraulic press seems almost magical, but it is governed by the fundamental laws of physics. There is no "free lunch."
Conservation of Energy: The Distance Trade-off
While the press multiplies force, it does so at the expense of distance. The law of conservation of energy dictates that the work done on the input piston must equal the work done by the output piston (in an ideal, frictionless system).
Work is calculated as Force x Distance.
To generate a massive output force, the large piston will only move a fraction of the distance that the small piston travels. You trade a long-distance, low-force push for a powerful, short-distance shove.
Real-World Inefficiencies
In any mechanical system, some energy is lost. In a hydraulic press, this can occur due to:
- Friction: Between the pistons and the cylinder walls.
- Fluid Leaks: Imperfect seals can allow fluid to escape, reducing pressure.
These factors mean the actual output force will always be slightly less than the theoretical maximum.
Making the Right Choice for Your Goal
Understanding this principle is key, whether you are studying physics or operating machinery. Your focus will determine which aspect of the principle is most important.
- If your primary focus is physics: The key is the direct relationship
F₁/A₁ = F₂/A₂, which perfectly demonstrates force multiplication while obeying the conservation of work. - If your primary focus is engineering or operation: The principle means the mechanical advantage is determined by the ratio of the piston areas, and system efficiency depends on minimizing friction and leaks.
- If your primary focus is general knowledge: A hydraulic press cleverly uses a trapped liquid to trade a long, easy push for a short, powerful one.
Ultimately, the hydraulic press is a masterful application of fluid physics, transforming a small effort into a monumental force.
Summary Table:
| Aspect | Description |
|---|---|
| Operating Principle | Based on Pascal's Law, pressure in a confined fluid is transmitted equally, enabling force multiplication. |
| Key Components | Two pistons (input and output) connected by fluid-filled pipe; uses incompressible fluid like oil. |
| Force Multiplication | Achieved via area ratio: F₂ = (F₁ / A₁) × A₂, where F₂ is output force, F₁ is input force, A₁ and A₂ are piston areas. |
| Trade-offs | Force increase comes with distance decrease to conserve energy; real-world inefficiencies include friction and fluid leaks. |
| Applications | Ideal for crushing, shaping, and pressing tasks in laboratories and industries requiring high force. |
