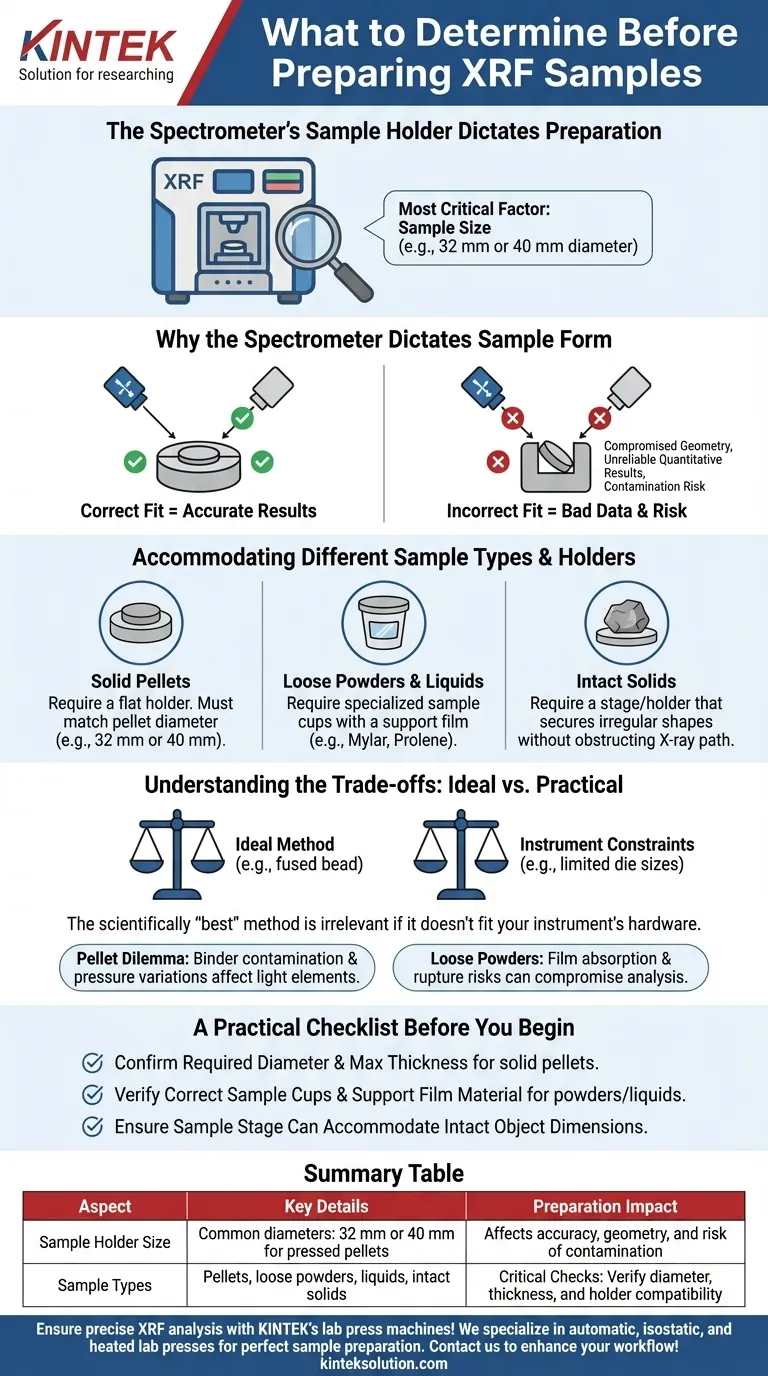

Before preparing any XRF sample, you must first determine the physical requirements of your spectrometer's sample holder. The most critical factor is the sample size the instrument will accept, as this dictates the entire preparation process. The most common sizes for pressed pellets, for example, are 32 mm and 40 mm in diameter.
Preparing a sample that doesn't fit the spectrometer is a common and preventable error that wastes valuable time and materials. The instrument's physical design is the first and most important constraint that governs your entire sample preparation strategy.
Why the Spectrometer Dictates Sample Form
Understanding the relationship between the instrument's hardware and the sample is fundamental to achieving accurate XRF results. The physical interface is non-negotiable.
The Critical Role of the Sample Holder
The sample holder is the component that positions your sample for analysis. Its design dictates the required dimensions, most commonly the diameter for round samples.
An instrument configured for 40 mm samples cannot properly analyze a 32 mm sample, and vice versa. Using the wrong size will lead to incorrect positioning and invalid results.
Accommodating Different Sample Types
Spectrometers are often equipped with different holders or inserts for various sample forms. Your choice of preparation method must align with the hardware you have available.
- Solid Pellets: Require a flat holder that matches the pellet's diameter (e.g., 32 mm or 40 mm).
- Loose Powders & Liquids: Require specialized sample cups, which consist of a ring and a thin-film support window.
- Intact Solids: Require a stage or holder that can secure an irregularly shaped object in a consistent position.
The Impact on Analytical Accuracy
A sample that fits poorly does not just risk falling; it guarantees bad data. XRF geometry relies on a precise and repeatable distance and angle between the X-ray source, the sample surface, and the detector.
If a sample is too small for its holder, sits at an angle, or is not perfectly flat against the analysis window, this geometry is compromised, rendering the quantitative results unreliable.
Understanding the Trade-offs
Choosing a preparation method is often a balance between analytical ideals and the practical constraints imposed by your instrument and sample type.
Ideal Preparation vs. Instrument Limitations
The scientifically "best" method, such as creating a fused bead for perfect homogeneity, is irrelevant if your spectrometer can only accept 40 mm pressed pellets and you only have a 32 mm die.
You must always start with the question, "What physical form can my instrument analyze?" before you decide on a preparation technique.
The Pellet Dilemma: Binder and Pressure
When making pellets, you grind the sample and mix it with a binding agent before compressing it. The trade-off here is creating a durable pellet versus potential contamination.
The binder can introduce trace elements or dilute your sample, affecting the analysis of light elements. Inconsistent pressure during compression can also create density variations, impacting results.
Loose Powders and Films: A Quick but Risky Alternative
Using a sample cup with a support film is fast and requires minimal sample mass. However, this convenience comes with risks.
The film itself can absorb or scatter low-energy X-rays, making the analysis of light elements like Sodium (Na) or Magnesium (Mg) difficult. Furthermore, a film rupture can lead to catastrophic contamination of the spectrometer's internal components.
A Practical Checklist Before You Begin
Answering these simple questions before you start will prevent the most common preparation failures.
- If your primary focus is preparing solid pellets: Confirm the required diameter (e.g., 32 mm vs. 40 mm) and any maximum thickness constraints for your sample holder.
- If your primary focus is analyzing liquids or loose powders: Verify you have the correct sample cups and the appropriate support film material (e.g., Mylar, Prolene) for your elements of interest.
- If your primary focus is analyzing intact solid samples: Ensure the sample stage can accommodate the object's dimensions and weight without obstructing the X-ray path.
Verifying these physical parameters first ensures your sample preparation efforts lead to accurate and reliable results.
Summary Table:
| Aspect | Key Details |
|---|---|
| Sample Holder Size | Common diameters: 32 mm or 40 mm for pressed pellets |
| Sample Types | Pellets, loose powders, liquids, intact solids |
| Preparation Impact | Affects accuracy, geometry, and risk of contamination |
| Critical Checks | Verify diameter, thickness, and holder compatibility |
