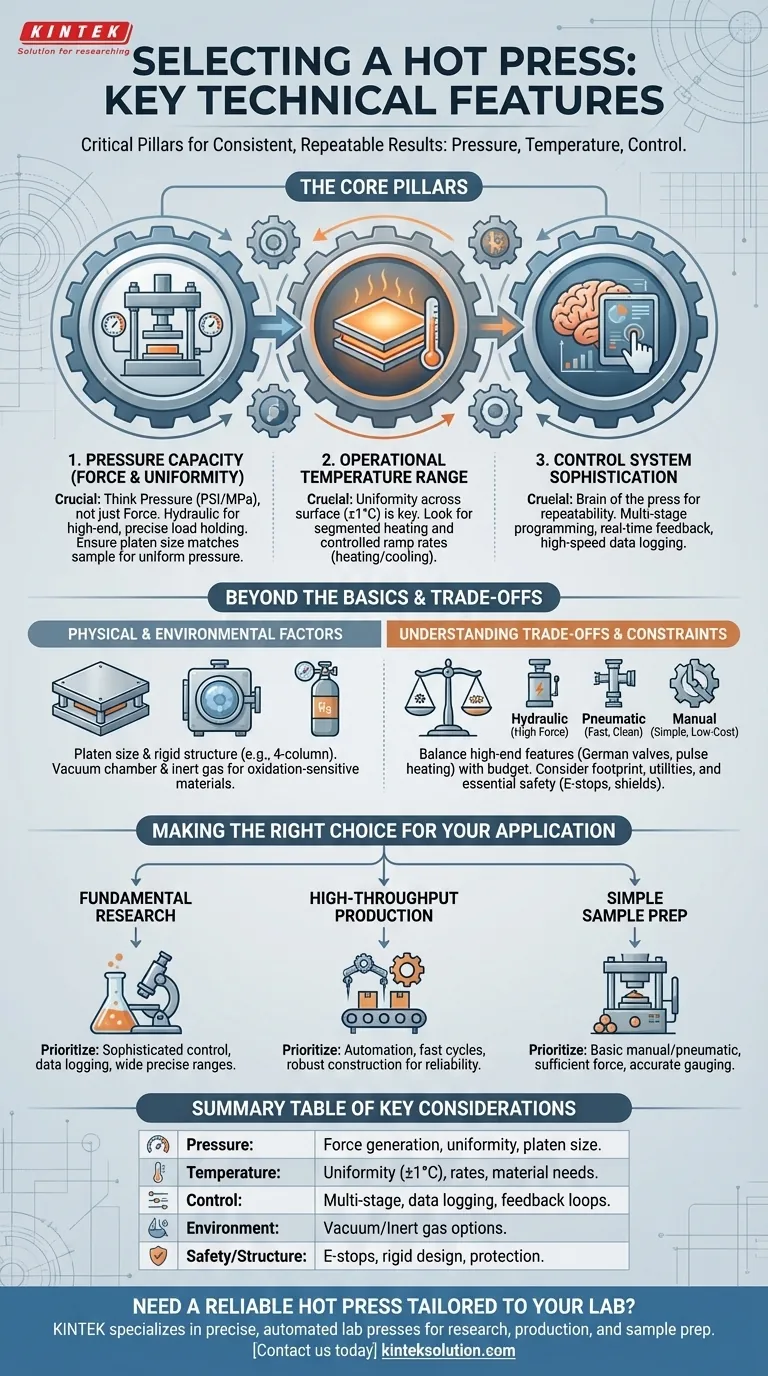

What Technical Features Should Be Considered When Selecting A Hot Press? Key Factors For Precision And Performance

When selecting a hot press, the most critical technical features to evaluate are its pressure capacity, its operational temperature range, and the sophistication of its control system. These three pillars directly dictate the machine's ability to process your specific materials effectively and, more importantly, to produce consistent, repeatable results.

A hot press is not just a machine that gets hot and squeezes. It is a precision instrument. The goal is to move beyond a simple list of specifications and select a system whose features for pressure, temperature, and control are perfectly matched to the demands of your material and process.

The Core Pillars: Force, Heat, and Control

Every hot press application, from bonding composites to molding polymers, is a balance of these three fundamental parameters. Understanding how they interact is the key to a successful purchase.

Defining Your Pressure Requirements

The required force is the most common starting point, but it's crucial to think in terms of pressure (force per unit area, e.g., PSI or MPa).

A press with high tonnage is useless if its platens are too large to deliver the required pressure on your sample. The system that generates the force—hydraulic, pneumatic, or manual—also has major implications for performance and complexity.

High-end systems use hydraulic power for maximum force and feature components like automatic pressure replenishment to hold a precise load over long cycles.

Matching Temperature to Your Materials

While a wide temperature range offers flexibility, temperature uniformity across the entire platen surface is far more important for quality control. Inconsistent heating leads to failed bonds and warped parts.

Look for specifications on temperature accuracy (e.g., ±1°C) and features like segmented heating systems or high-conductivity platens (e.g., titanium) that ensure even heat distribution.

The heating and cooling rate (ramp rate) is also a critical process parameter. Some applications require rapid heating, while others need a slow, controlled thermal cycle to prevent material stress.

The Critical Role of the Control System

The control system is the brain of the hot press and is the single biggest factor in ensuring repeatability.

Basic controllers may only allow you to set a single temperature and pressure point. Advanced systems offer multi-stage programming, allowing you to define complex cycles with varying ramp rates, pressures, and dwell times.

For research and development, features like high-speed data logging, real-time temperature and pressure display, and precise feedback loops are essential for process optimization and validation.

Beyond the Basics: Physical and Environmental Factors

Once the core parameters are defined, you must consider the physical machine and its operating environment.

Platen Size and Structural Integrity

The platen size must be large enough to accommodate your largest sample or mold.

Equally important is the press's mechanical structure. A rigid four-column, three-plate structure, for example, is designed to resist deflection under high loads, ensuring the platens remain perfectly parallel for uniform pressure application.

Specialized Process Environments

Standard hot presses operate in ambient air. If your materials are sensitive to oxygen at high temperatures, you will need a press with a vacuum chamber.

This feature allows you to remove atmosphere, preventing oxidation and voids in the final product. Some systems also allow for back-filling with an inert gas like nitrogen or argon for further process control.

Understanding the Trade-offs and Practical Constraints

An ideal press has infinite control and capacity, but real-world decisions involve balancing performance with budget and practical limitations.

Precision vs. Cost

Advanced features like German-made hydraulic valves, pulse-heating technology, and high-resolution controllers deliver superior precision and reliability. However, they come at a significant cost. You must objectively determine if your application truly requires that level of control.

Power Systems: Hydraulic, Pneumatic, or Manual

Hydraulic presses offer the highest force but require more maintenance and can be messy. Pneumatic presses are cleaner and often faster but are limited to lower-force applications. Manual presses are simple and low-cost but lack automation and repeatability.

Laboratory Footprint and Utilities

Do not overlook the basics. Confirm the machine’s physical dimensions will fit in your lab and that you can meet its electrical requirements (e.g., voltage and phase). Water-cooled presses will also require a dedicated water supply and drain.

Safety and Operational Overhead

Safety is not an optional feature. Look for essential mechanisms like emergency stop switches, safety shields or doors, and over-pressure/over-temperature protection. Remember that even the safest machine requires trained personnel, proper ventilation, and a regular maintenance schedule to be operated safely.

Making the Right Choice for Your Application

Systematically evaluate your needs against the features available to find the right balance of performance and cost.

If your primary focus is fundamental materials research: Prioritize a press with a sophisticated control system, data logging, and a wide, precisely controlled range of temperatures and pressures.
If your primary focus is high-throughput production or QC: Emphasize automation, fast cycle times (heating/cooling), and robust construction for maximum repeatability and reliability.
If your primary focus is simple sample preparation (e.g., spectroscopy pellets): A basic manual or pneumatic press with sufficient force and accurate pressure gauging is likely all you need.

By systematically aligning these technical features with your specific application, you can confidently select a tool that delivers reliable and accurate results for years to come.

Summary Table:

Feature	Key Considerations
Pressure Capacity	Force generation (hydraulic, pneumatic, manual), pressure uniformity, and platen size for effective load distribution.
Temperature Range	Uniformity across platens, accuracy (±1°C), heating/cooling rates, and material-specific requirements.
Control System	Multi-stage programming, data logging, feedback loops for repeatability and process optimization.
Special Environments	Vacuum chambers and inert gas options for oxidation-sensitive materials.
Safety and Structure	Emergency stops, over-pressure protection, rigid designs (e.g., four-column) for stability.
