Coulometric Karl Fischer Moisture Titrator with Headspace Karl Fischer Oven for Trace Water Analysis
Item Number : DS20
Price varies based on specs and customizations
- Measurement Range
- 10 µg – 200 mg H2O
- Maximum Titration Speed
- 2.24 mg H2O/min
- Power Supply
- 220 VAC
Shipping:
Contact us to get shipping details Enjoy On-time Dispatch Guarantee.
Why Choose Us
Easy ordering process, quality products, and dedicated support for your business success.
Product Overview

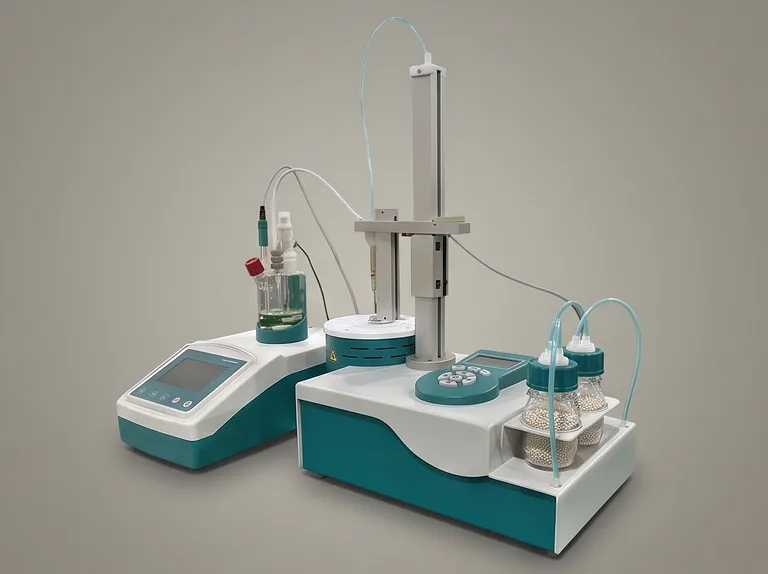

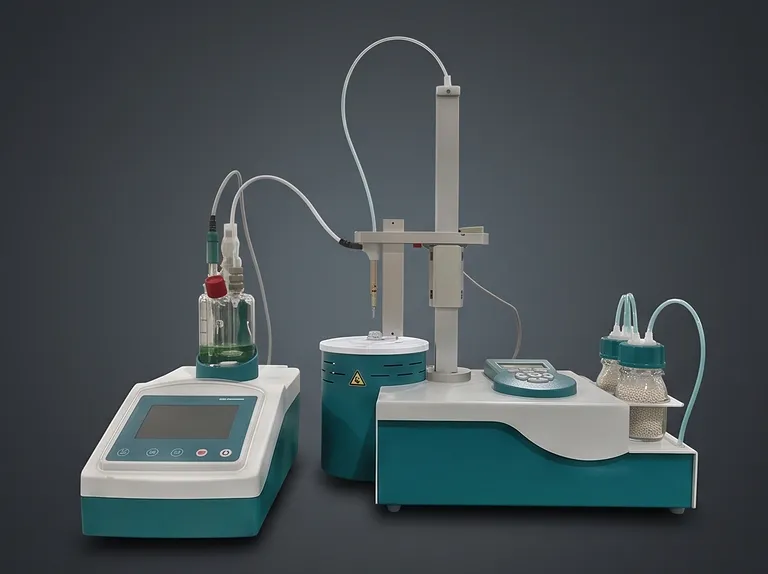

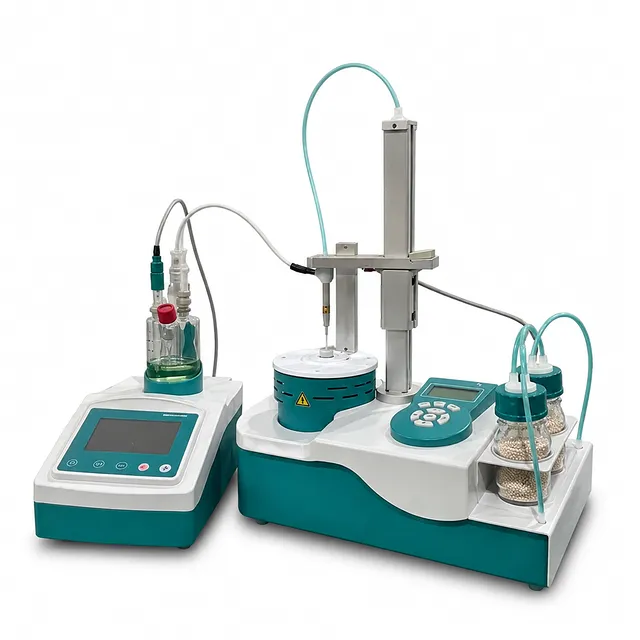

This analytical moisture determination system combines an advanced coulometric Karl Fischer titrator with an automated headspace thermal extraction oven to deliver high-precision trace moisture quantification. Engineered specifically for challenging solid and liquid matrices, the combined apparatus isolates moisture from insoluble or chemically reactive matrices by thermally extracting volatile water vapor directly into a sealed titration cell via a dry carrier gas stream. This dual-unit configuration eliminates side reactions, prevents matrix fouling of the titration reagents, and provides microgram-level detection accuracy essential for advanced materials characterization.
Designed primarily for energy storage research, battery manufacturing, fine chemical production, and quality assurance laboratories, the equipment excels in testing battery cathode and anode powders, separator membranes, and organic liquid electrolytes. By integrating direct coulometric titration capabilities with automated headspace heating, researchers and quality managers can seamlessly transition between pure liquid samples and complex solid compounds without manual reagent contamination or tedious extraction protocols.
Built for high-throughput testing environments, the instrumentation features robust digital control systems, precision heating blocks, and rigorous electronic titration algorithms that maintain reproducible baseline stability. Full compliance with strict Good Laboratory Practice (GLP) and ISO 900x protocols ensures complete data traceability and audit readiness, delivering absolute measurement integrity across continuous industrial operating shifts and mission-critical research cycles.
Key Features
- Integrated Coulometric Titration Cell: High-sensitivity coulometric generation system measures trace water content down to 10 micrograms with exceptional electrochemical precision and drift compensation.
- Automated Headspace Thermal Extraction: Sealed-vial sample heating processor transfers liberated moisture directly to the titration vessel via controlled carrier gas, preventing insoluble solids from fouling electrolyte reagents.
- Real-Time Dynamic Moisture-Time Graphing: Integrated full-color touchscreen interface plots real-time extraction and titration curves, enabling operators to observe reaction kinetics and optimize heating profiles instantly.
- Comprehensive GLP/ISO Compliance Statistics: Automated software modules calculate mean values, absolute standard deviations, and relative standard deviations (RSD) to satisfy stringent quality auditing protocols.
- High-Speed Quantitative Performance: Rapid electrolytic titration capability handles moisture measurement rates up to 2.24 mg of water per minute, accelerating overall batch testing cycle times.
- Direct Analytical Balance Interfacing: Dedicated digital communication port connects to external laboratory balances to transfer sample weight data automatically, eliminating manual transcription errors.
- Independent Thermal and Flow Controls: Front-panel digital regulation provides precise control over extraction heating temperatures and carrier gas flow rates for optimized outgassing parameters across varied sample types.

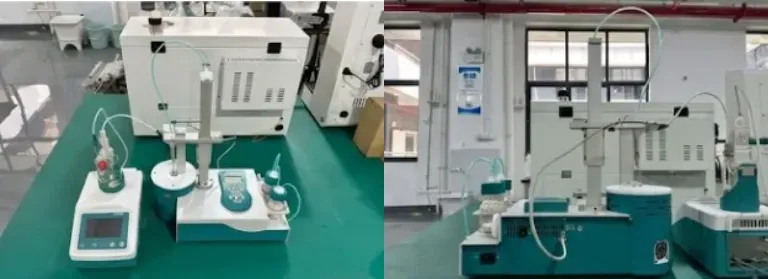

- Compact Dual-Unit Modular Architecture: Space-efficient footprint allows flexible benchtop arrangement while maintaining thermal separation between the high-temperature oven and sensitive coulometric titration glassware.
Applications
| Application | Description | Key Benefit |
|---|---|---|
| Battery Cathode and Anode Active Materials | Thermal extraction and titration of trace structural or adsorbed moisture in Li-ion electrode powders (LFP, NCM, graphite). | Prevents hydrofluoric acid generation and cell degradation by ensuring sub-ppm moisture verification prior to slurry mixing. |
| Battery Liquid Electrolyte Verification | Direct coulometric injection testing of non-aqueous organic carbonate electrolytes and functional additives. | Delivers rapid microgram-level quantification without thermal volatility side reactions, maintaining strict electrochemical stability standards. |
| Polymeric Battery Separators | Thermal desorption of residual surface and internal moisture from porous polyolefin and coated separator films. | Ensures uniform dielectric properties and eliminates vapor expansion hazards during cell formation and sealing. |
| Solid-State Electrolytes and Precursors | Enclosed headspace extraction of moisture from air-sensitive sulfide, oxide, or polymer solid electrolyte powders. | Protects reactive compounds from atmospheric exposure while obtaining reliable moisture content down to trace detection limits. |
| Pharmaceutical Active Ingredients (APIs) | Headspace analysis of thermally stable solid powders, excipients, and lyophilized drugs with low moisture solubility. | Eliminates sample dissolution issues and side reactions with Karl Fischer reagents, meeting pharmacopeia testing standards. |
| Technical Polymers and Engineering Plastics | Desorption moisture analysis of hygroscopic pellets, polyamides, and resin compounds prior to injection molding. | Prevents hydrolytic polymer degradation and structural voids in finished high-performance engineering components. |
| Fine Chemicals and Industrial Solvents | Routine quality control screening of anhydrous solvents, reagents, and specialty chemical formulations. | Fast, reagent-efficient testing with maximum titration speeds up to 2.24 mg H2O/min for accelerated batch turnaround. |
Technical Specifications
| Parameter | Coulometric Titrator Unit | Headspace Karl Fischer Oven Unit |
|---|---|---|
| Item Identifier | DS20-Titrator | DS20-Oven |
| Measurement Method | Coulometric Karl Fischer Titration | Headspace Thermal Extraction / Carrier Gas Evaporation |
| Measurement Range | 10 µg to 200 mg H2O | Applied to solid samples compatible with 10 µg – 200 mg range |
| Maximum Titration Speed | 2.24 mg H2O / min | Dependent on sample outgassing kinetics |
| Display & User Interface | Color Touchscreen with dynamic "Moisture–Time" curve | Digital control panel for temperature & flow settings |
| Statistical Functions | Mean, Absolute Standard Deviation, Relative Standard Deviation (RSD) | Process status tracking and timing indicators |
| Regulatory Compliance | GLP, ISO 900x compliant reporting | GLP, ISO 900x workflow integration |
| External Interface | Balance connection for automated sample weight acquisition | Automated initiation triggering upon cycle start |
| Operating Power Supply | 220 VAC | 220 VAC |
| Operating Temperature | 0 °C to 40 °C | 0 °C to 40 °C |
| Operating Relative Humidity | < 85% RH | < 85% RH |
| External Dimensions (W × D × H) | 178 mm × 138 mm × 311 mm | 280 mm × 450 mm × 460 mm |
| Equipment Net Weight | 3 kg | 12 kg |
Why Choose This Product
- Engineered Electrochemical Accuracy: The titrator delivers rigorous microgram-level quantification with rapid drift compensation, ensuring precise moisture detection across both liquid formulations and thermally extracted solids.
- Protection Against Matrix Interference: Utilizing the automated headspace heating processor prevents insoluble particles, matrix additives, and side-reacting chemicals from entering the Karl Fischer cell, prolonging electrolyte lifespan and reducing operational reagent costs.
- Full Audit Traceability and GLP Conformance: Built-in statistical processing and direct electronic balance data acquisition safeguard data integrity by eliminating manual calculation steps and typographical errors.
- Robust Industrial Build Quality: Constructed with premium mechanical and electronic assemblies designed for continuous duty cycles, ensuring high operational uptime in analytical QC labs, battery pilot lines, and research centers.
Contact our technical sales team today to request a detailed quotation, discuss custom sample handling accessories, or evaluate how this system can enhance your quality assurance workflows.
