At its core, geological samples are prepared for XRF (X-ray fluorescence) analysis by being crushed into a very fine powder, mixed with a binding agent, and compacted into a dense, flat disc using a hydraulic press. This process transforms a rough, heterogeneous rock into a perfectly smooth and homogeneous pellet suitable for yielding accurate and repeatable measurements.
The fundamental challenge of XRF is that it analyzes a very small surface area of a sample. Therefore, meticulous preparation is not just a preliminary step—it is the critical process that ensures the tiny analyzed spot is a true representation of the entire bulk sample's chemical composition.
The Goal: From Heterogeneous Rock to Homogeneous Pellet
A raw geological sample is inherently inconsistent. It contains different minerals, grain sizes, voids, and surface textures that can severely compromise the quality of an XRF analysis. The goal of preparation is to eliminate this variability.
Overcoming Mineral Heterogeneity
A rock is a composite of many different minerals, each with its own chemistry. Analyzing a raw surface might cause the X-ray beam to hit a single large crystal, giving a result that is not representative of the whole rock.
Grinding the sample into a fine powder, typically to a few tens of microns, breaks down these individual components. Thoroughly mixing this powder ensures the final sample is a statistically uniform average of all the minerals that were present.
Eliminating Physical Surface Effects
The XRF spectrometer requires a perfectly flat and smooth surface for analysis. A rough, natural surface causes X-rays to scatter unpredictably, weakening the signal and introducing significant error.
Creating a pressed pellet provides an ideal analytical surface. This dense, glass-like finish ensures that the interaction between the X-ray beam and the sample is consistent and measurable.
Mitigating Particle Size and Matrix Effects
Even in a powder, variations in particle size and density can skew results. Larger grains can shadow smaller ones, and the way X-rays are absorbed and re-emitted is influenced by the surrounding atoms (the matrix).
By grinding everything to a uniform fine powder and pressing it to a consistent density, these matrix effects are standardized across all samples in a batch, making their results directly comparable.
The Standard Preparation Workflow
Achieving a high-quality pellet for quantitative analysis follows a well-defined process. Consistency is the most important principle; every sample must be treated identically.
Step 1: Crushing and Grinding
The bulk sample is first crushed into smaller pieces before being placed in a mill (e.g., a puck mill or shatterbox). The goal is to reduce the material to a fine, flour-like powder.
This stage is the most critical for eliminating the effects of mineral heterogeneity.
Step 2: Adding a Binding Agent
Geological powders, being composed of hard minerals, do not stick together well under pressure. A binding agent like cellulose wax or boric acid is added, typically in a small, precise ratio.
This binder acts as a glue, helping the powder particles adhere to one another during pressing to form a durable pellet.
Step 3: Pressing the Pellet
The powder-binder mixture is poured into a steel die set. A hydraulic laboratory press is then used to apply immense pressure (typically 15-25 tons).
This force compacts the powder, removes void spaces, and creates a dense, solid disc with a flawless surface ready for the spectrometer.
Common Pitfalls and Considerations
While the pressed pellet method is the gold standard, it is important to understand its context and potential issues.
Loose Powder vs. Pressed Pellet
In some cases, loose powder is analyzed directly in a sample cup. This is faster but far less accurate.
The void spaces between powder grains are large and inconsistent, leading to poor signal strength and results that are often only qualitative. This method should be avoided for any serious quantitative work.
The Risk of Contamination
The grinding and pressing process can introduce contaminants. Grinding vessels (e.g., tungsten carbide) can shed trace metals into the sample.
For high-precision trace element analysis, the composition of the grinding media must be known. Likewise, the binder adds organic material, which dilutes the sample and must be accounted for in the calculations.
The Mandate for Consistency
Any variation in the preparation process will introduce error. The grinding time, amount of binder, and pressure used must be kept identical for every sample in a study.
Without this consistency, it becomes impossible to know if a difference between two samples is real or simply an artifact of preparation.
Making the Right Choice for Your Goal
Your analytical objective determines the necessary level of preparation rigor.
- If your primary focus is high-accuracy quantitative analysis: The pressed pellet method is non-negotiable. It is the only way to minimize physical and matrix effects to produce trustworthy, publication-quality data.
- If your primary focus is rapid qualitative screening: Analyzing loose powder may be acceptable for simply identifying major elements present, but you must accept that the results have a high degree of uncertainty.
- If your primary focus is analyzing a solid, metallic, or fused sample: The key is still surface preparation. The sample must be cut and then ground or lathed to create a perfectly flat, smooth surface comparable to that of a pressed pellet.
Ultimately, rigorous and consistent sample preparation is the foundation upon which all reliable XRF-based geological data is built.
Summary Table:
| Step | Description | Key Benefit |
|---|---|---|
| Crushing and Grinding | Reduce sample to fine powder | Eliminates mineral heterogeneity |
| Adding Binding Agent | Mix with cellulose wax or boric acid | Ensures pellet durability and cohesion |
| Pressing the Pellet | Apply high pressure with hydraulic press | Creates dense, flat surface for accurate analysis |
Need reliable sample preparation for your lab? KINTEK specializes in lab press machines, including automatic, isostatic, and heated presses, designed to meet the rigorous demands of geological XRF analysis. Our equipment ensures consistent, high-quality pellets for accurate results. Contact us today to enhance your laboratory's efficiency and precision!

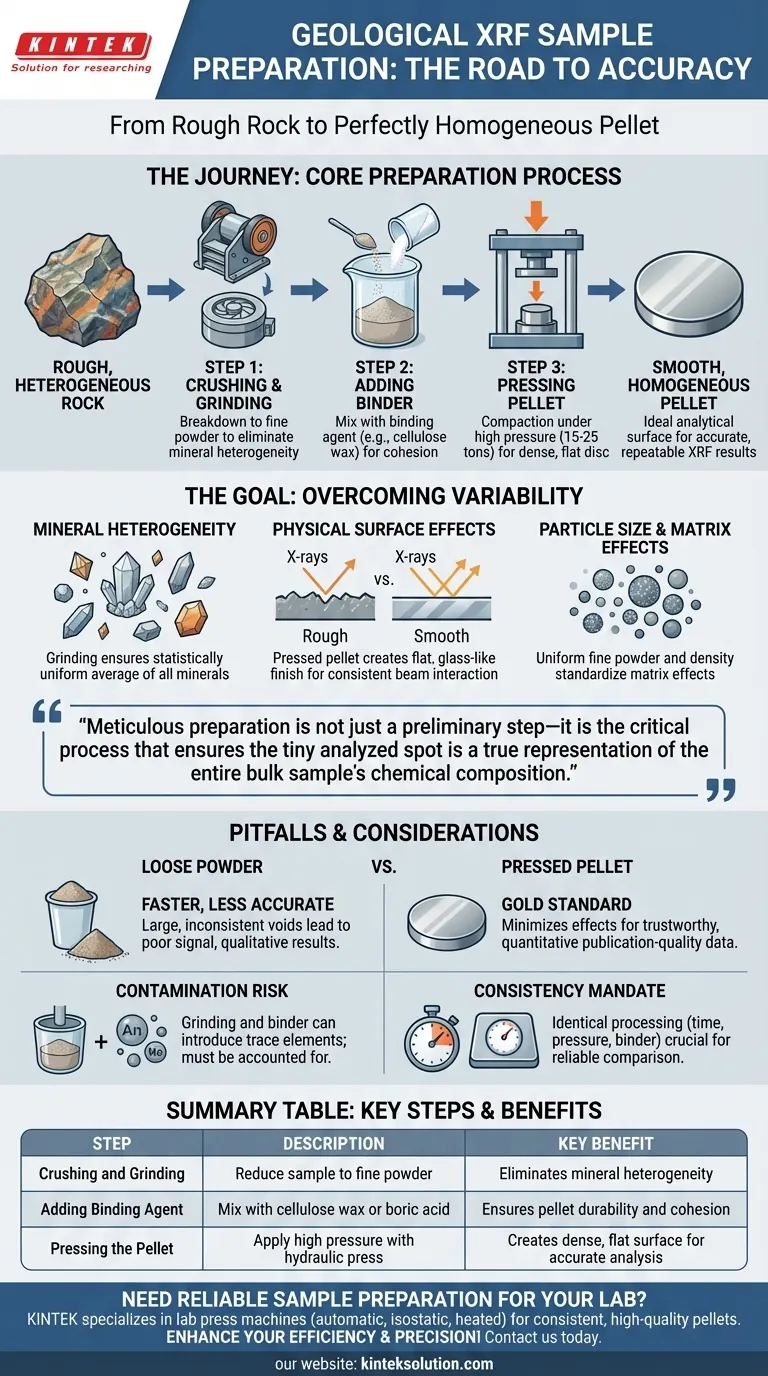

Visual Guide
