At its core, a hydraulic lab press operates on a fundamental law of physics to achieve massive force multiplication. It uses an incompressible fluid within a sealed system to transform a small, manageable force—often applied by simply pumping a handle—into an immense compressive force capable of pressing materials into dense pellets or testing their structural limits.
The power of a hydraulic press lies not just in generating force, but in its ability to do so with exceptional control. By exploiting Pascal's principle, it converts a small input effort into a large, precise, and repeatable output, making it an indispensable tool for modern sample preparation and material science.
The Core Mechanism: Pascal's Principle in Action
A hydraulic lab press is a direct application of a principle first identified in the 17th century. Understanding this concept is key to understanding the machine's function.
What is Pascal's Principle?
Pascal's principle states that when pressure is applied to a confined, incompressible fluid, that pressure is transmitted equally and undiminished throughout the entire fluid.
Think of it like squeezing a sealed water balloon. The pressure you apply with your fingers is felt uniformly across the entire inner surface of the balloon.
From Small Input to Large Output
The press utilizes two pistons of different sizes within a shared, sealed hydraulic system.
- A small force is applied to a small piston (the input, or pump).
- This generates pressure in the hydraulic fluid.
- Because the pressure is transmitted equally everywhere, the same pressure pushes up on a much larger piston (the output, or ram).
Since Force = Pressure × Area, the larger surface area of the output piston multiplies the initial force significantly. A small effort on the pump handle results in tons of force at the pressing surface.
The Role of the Hydraulic Fluid
The fluid is the medium that transmits the pressure. It must be incompressible to work efficiently.
Common fluids include specialized hydraulic oils, which are chosen for their stability, lubrication properties, and resistance to corrosion. Water or other synthetic fluids can also be used in some designs.
Anatomy of a Typical Lab Press
While designs vary, most manual lab presses share a few critical components that work together to generate and contain the force.
The Hydraulic Pump
This is the input mechanism, usually a lever-action handle. Each pump of the handle forces a small amount of fluid into the main cylinder, incrementally increasing the pressure and force.
The Cylinder and Ram
This is the output assembly. The cylinder is the large chamber that contains the main body of hydraulic fluid, and the ram (or piston) is the component that moves out of the cylinder to apply the compressive force to the sample.
The Press Frame
The frame is the heavy, rigid structure that surrounds the work area. It must be incredibly strong to safely withstand the immense forces being generated internally by the hydraulic system.
The Pressure Gauge
A crucial component for scientific work, the pressure gauge displays the pressure within the system. This allows for repeatable and quantifiable force application, which is essential for consistent sample preparation and testing.
Understanding the Trade-offs and Limitations
Hydraulic presses are powerful tools, but they are not without their operational trade-offs. Being aware of these helps in their proper application.
Force vs. Speed
The primary trade-off is power for speed. The force multiplication that makes hydraulic presses so powerful also means the output ram moves very slowly and over a short distance. They are designed for static compression, not high-speed cycling.
The Importance of Fluid Integrity
The hydraulic system is sealed for a reason. Air bubbles in the fluid can compress, leading to a "spongy" and inefficient feel. Likewise, leaks not only create a mess but also prevent the system from reaching its target pressure.
Manual vs. Automated Operation
Manual presses are simple, robust, and cost-effective for many applications. However, achieving a precise force or holding it for an extended period can be challenging.
Automated or motorized presses offer superior control, allowing users to program specific force profiles, ramp rates, and hold times, ensuring maximum repeatability.
Heated Platens
Some advanced presses include heated platens. This feature allows for the processing of polymers, composites, and other materials that require both heat and pressure to cure or form properly.
Making the Right Choice for Your Goal
To select the appropriate press, you must first define your primary laboratory task. The operational principle is the same, but features and specifications are tailored to different needs.
- If your primary focus is routine sample preparation (e.g., KBr pellets for FTIR): A standard, manual 10-15 ton press is typically sufficient, cost-effective, and easy to operate.
- If your primary focus is materials R&D: Consider an automated press with programmable controls and optional heated platens for process control and developing new material formulations.
- If your primary focus is operating in a controlled atmosphere: Look for a compact press specifically designed for use inside a vacuum glove box.
By understanding the fundamental principle of force multiplication, you can master the hydraulic press as a tool for precise and powerful material processing.
Summary Table:
| Feature | Description |
|---|---|
| Core Principle | Pascal's Law: Pressure in fluid transmits equally, multiplying force |
| Key Components | Hydraulic pump, cylinder/ram, press frame, pressure gauge |
| Force Generation | Small input force on small piston creates large output force on large piston |
| Applications | Sample preparation (e.g., KBr pellets), materials testing, R&D |
| Limitations | Slow speed, requires sealed fluid system, manual vs. automated trade-offs |
Ready to enhance your laboratory's capabilities with a reliable hydraulic press? KINTEK specializes in lab press machines, including automatic lab presses, isostatic presses, and heated lab presses, designed to meet your specific needs for sample preparation and material science. Our equipment ensures precise force control, durability, and efficiency, helping you achieve consistent results in research and testing. Contact us today to discuss how our solutions can benefit your lab!

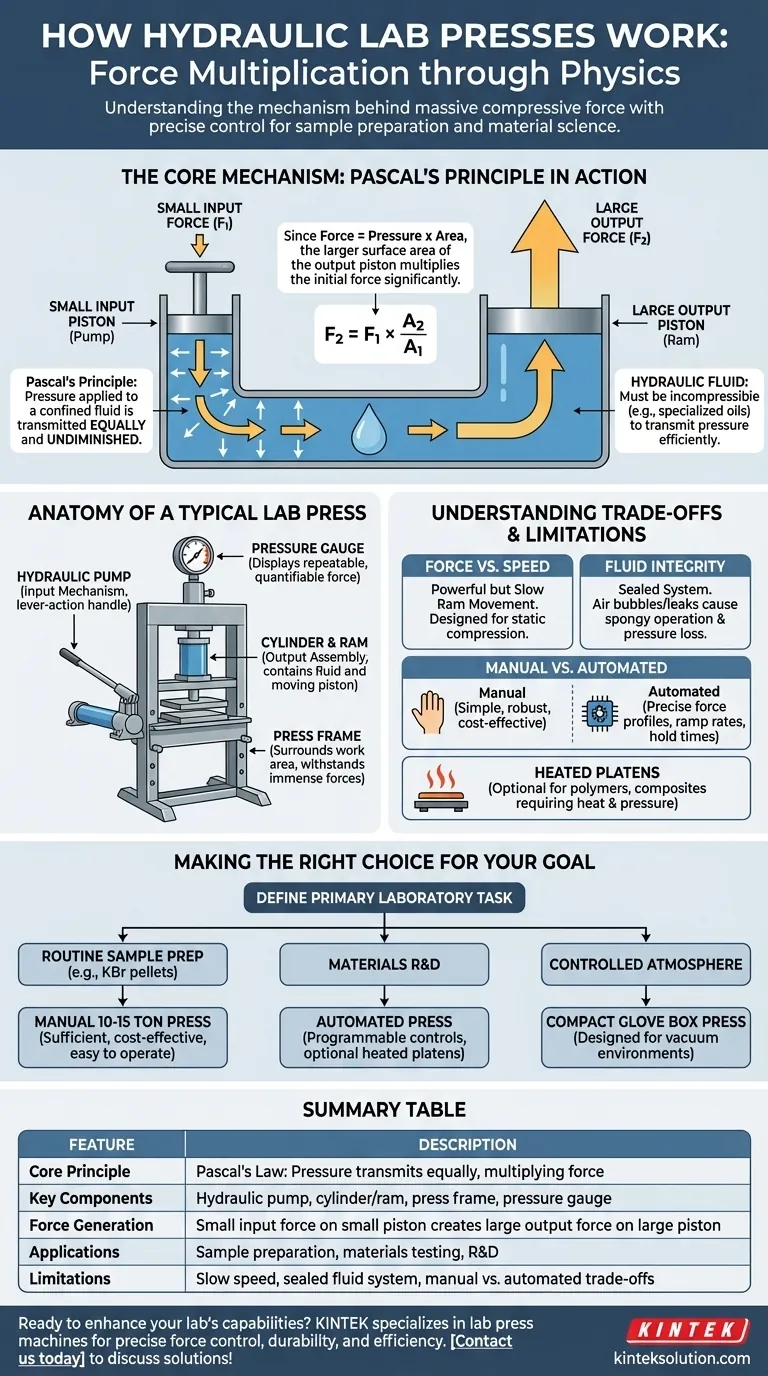

Visual Guide
