How Do Pressed Pellets Improve Sample Homogeneity In Xrf Analysis? Enhance Accuracy And Precision

In short, pressing a powdered sample into a pellet improves homogeneity by using high pressure to eliminate inconsistencies in the material's physical form. This process compacts the particles into a solid disc of uniform density and creates a perfectly flat analytical surface, ensuring the X-ray beam interacts with a truly representative portion of the sample.

The core challenge in X-Ray Fluorescence (XRF) is ensuring the small area analyzed by the X-ray beam is identical to the bulk sample. Creating a pressed pellet is a fundamental method to overcome this challenge by standardizing the sample's physical properties, thereby minimizing errors caused by particle size, voids, and uneven element distribution.

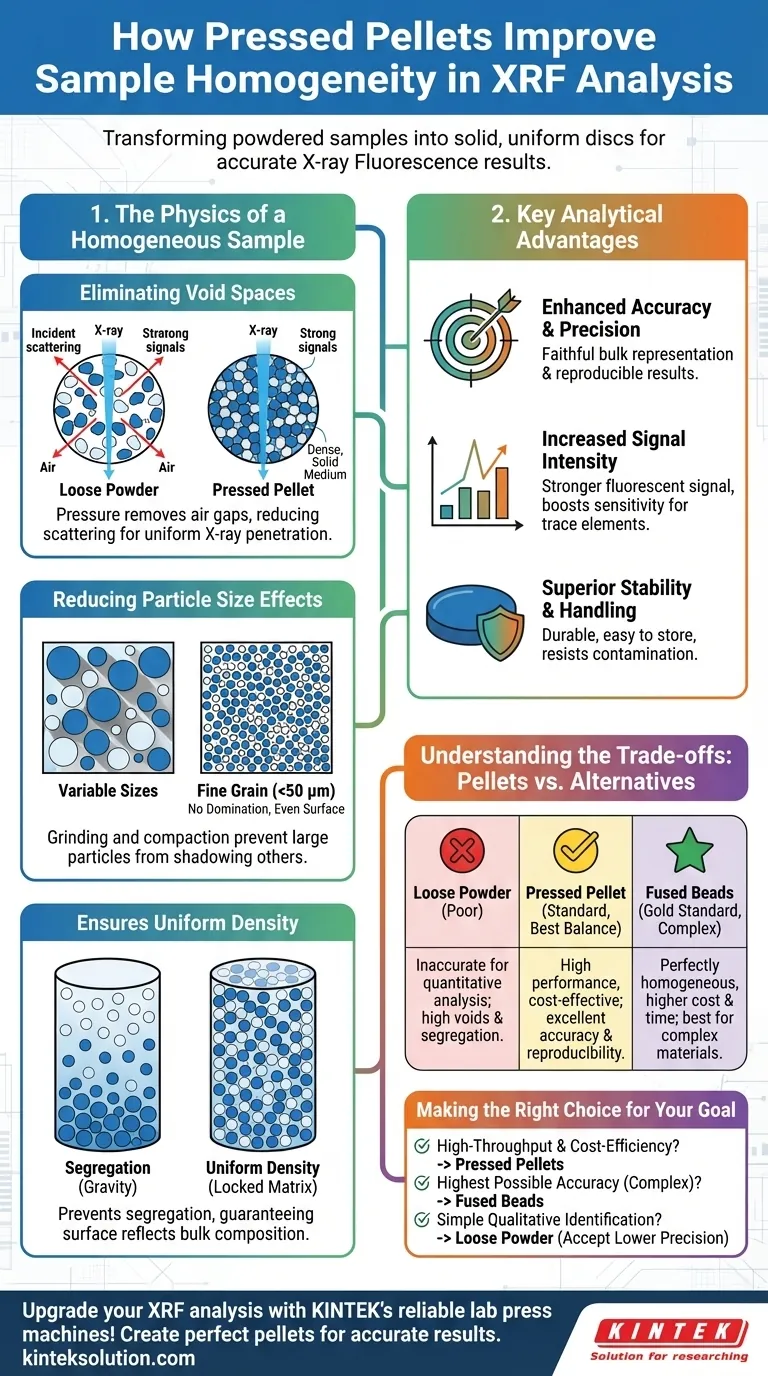

How do pressed pellets improve sample homogeneity in XRF analysis? Enhance Accuracy and Precision

The Physics of a Homogeneous Sample

An XRF spectrometer analyzes a very small and shallow portion of the sample surface. If this surface isn't perfectly representative of the entire sample, the results will be inaccurate. Pressed pellets directly address the primary sources of this non-homogeneity.

Eliminating Void Spaces

Loose powders contain a significant amount of air between particles. These void spaces are not uniform and cause the X-ray beam to be scattered or absorbed inconsistently, weakening the signal that returns to the detector and introducing random error.

By compressing the powder under tons of pressure, these air gaps are almost entirely eliminated, creating a dense, solid medium for the X-rays to penetrate uniformly.

Reducing Particle Size Effects

In a powder, larger particles of a certain mineral can cast "shadows" over smaller particles, preventing them from being properly analyzed. This effect disproportionately represents certain elements while under-representing others.

To create a good pellet, the sample is first ground to a very fine powder, typically less than 50 micrometers. This fine grain, combined with high-pressure compaction, ensures that no single particle can dominate the analytical surface.

Ensuring Uniform Density

Gravity can cause denser, heavier particles to settle toward the bottom of a loose powder sample, a process known as segregation. This means the surface is no longer representative of the bulk material.

Pressing the sample locks all particles into a fixed matrix. It forces them into a state of uniform density, preventing any segregation and guaranteeing the surface composition reflects the overall composition.

Key Analytical Advantages

Standardizing the sample's physical form with a pressed pellet translates directly into better data quality.

Enhanced Accuracy and Precision

Accuracy (closeness to the true value) is improved because the analyzed surface is a faithful representation of the bulk sample.

Precision (reproducibility of results) is improved because every pellet is prepared in the same way, and the solid surface is stable. You can measure it multiple times and get the same result.

Increased Signal Intensity

A dense, void-free surface presents more material to the primary X-ray beam. This generates a stronger fluorescent signal, which is critical for improving the sensitivity of the analysis.

This boost in signal intensity is especially important for detecting and quantifying trace elements that may be present in parts-per-million (ppm) concentrations.

Superior Stability and Handling

Pressed pellets are solid, durable, and easy to handle, label, and store for future re-analysis. Loose powders are prone to spillage, contamination, and changes in composition over time.

Understanding the Trade-offs: Pellets vs. Alternatives

Pressed pellets represent a balance between performance and cost, making them a standard method, but they are not the only option.

Versus Loose Powder

For any quantitative analysis, pressed pellets are vastly superior to unprepared loose powders. The elimination of voids, particle size effects, and segregation provides a level of accuracy and reproducibility that loose powder simply cannot match.

Versus Fused Beads

Fused beads are considered the "gold standard" for XRF sample preparation. This method involves dissolving the sample in a molten lithium borate flux, which creates a perfectly homogeneous glass disc.

Fusion completely eliminates all particle size and mineralogical effects. However, it is a more complex, time-consuming, and expensive process that requires high-temperature furnaces and platinum crucibles, introducing higher operational and maintenance costs.

Making the Right Choice for Your Goal

The best sample preparation method depends entirely on your analytical requirements and operational constraints.

If your primary focus is high-throughput and cost-efficiency: Pressed pellets offer the best balance of speed, cost, and high-quality results for most routine quality control and screening applications.
If your primary focus is the highest possible accuracy for complex materials: Fused beads are the superior choice, as they fully eliminate mineralogical effects that pellets can only reduce.
If your primary focus is simple, qualitative identification: A loose powder may suffice, but you must accept that the results will have significantly lower precision and accuracy.

Ultimately, preparing a pressed pellet is a fundamental step in controlling variables to ensure your XRF results are both reliable and defensible.

Summary Table:

Advantage	Description
Eliminates Void Spaces	Compresses powder to remove air gaps, reducing X-ray scattering and improving signal uniformity.
Reduces Particle Size Effects	Grinds and compacts particles to under 50 micrometers, preventing element misrepresentation.
Ensures Uniform Density	Locks particles in place to prevent segregation, making the surface representative of the bulk sample.
Enhances Accuracy and Precision	Provides a stable, reproducible surface for consistent and true-to-bulk measurements.
Increases Signal Intensity	Boosts fluorescent signal for better sensitivity, especially for trace elements.
Improves Stability and Handling	Creates durable, easy-to-store pellets that resist contamination and allow re-analysis.
