In X-Ray Fluorescence (XRF) spectroscopy, a hydraulic press is the primary tool used to transform powdered or granular materials into dense, solid pellets. This process is not merely for convenience; it is a critical step that ensures the sample is perfectly homogenous and has a uniform surface, which is essential for obtaining accurate and repeatable elemental analysis.
The core purpose of using a hydraulic press in XRF is to eliminate physical inconsistencies within a sample. By creating a standardized, compacted pellet, the press removes variables like particle size and surface voids that would otherwise introduce significant errors into your analytical results.
The Problem: Why Raw Samples Undermine XRF Accuracy
To understand the role of the press, you must first understand the challenges of analyzing unprepared samples. XRF determines elemental composition by bombarding a material with X-rays and measuring the unique fluorescent energy that each element emits. The accuracy of this measurement is highly sensitive to the physical state of the sample.
The Challenge of Inconsistent Density
A loose powder sample is filled with air pockets and voids. When the X-ray beam hits the sample, these voids can cause inconsistent scattering and absorption, leading to a weaker and less representative signal reaching the detector.
This results in an underestimation of the true elemental concentrations.
The Impact of Particle Size Effects
In a powder mixture, finer particles tend to settle differently than coarser ones. This segregation means the surface layer being analyzed may not have the same composition as the bulk material, a phenomenon known as the "particle size effect."
Different particle sizes also absorb and scatter X-rays differently, adding another layer of unpredictable error.
The Issue of Surface Irregularity
A raw powder sample has an uneven, rough surface. This means the distance from the X-ray source and detector to any given point on the sample surface varies, altering the intensity of both the incident and fluorescent X-rays.
This lack of a flat, uniform plane makes it impossible to achieve the repeatable measurements required for high-quality quantitative analysis.

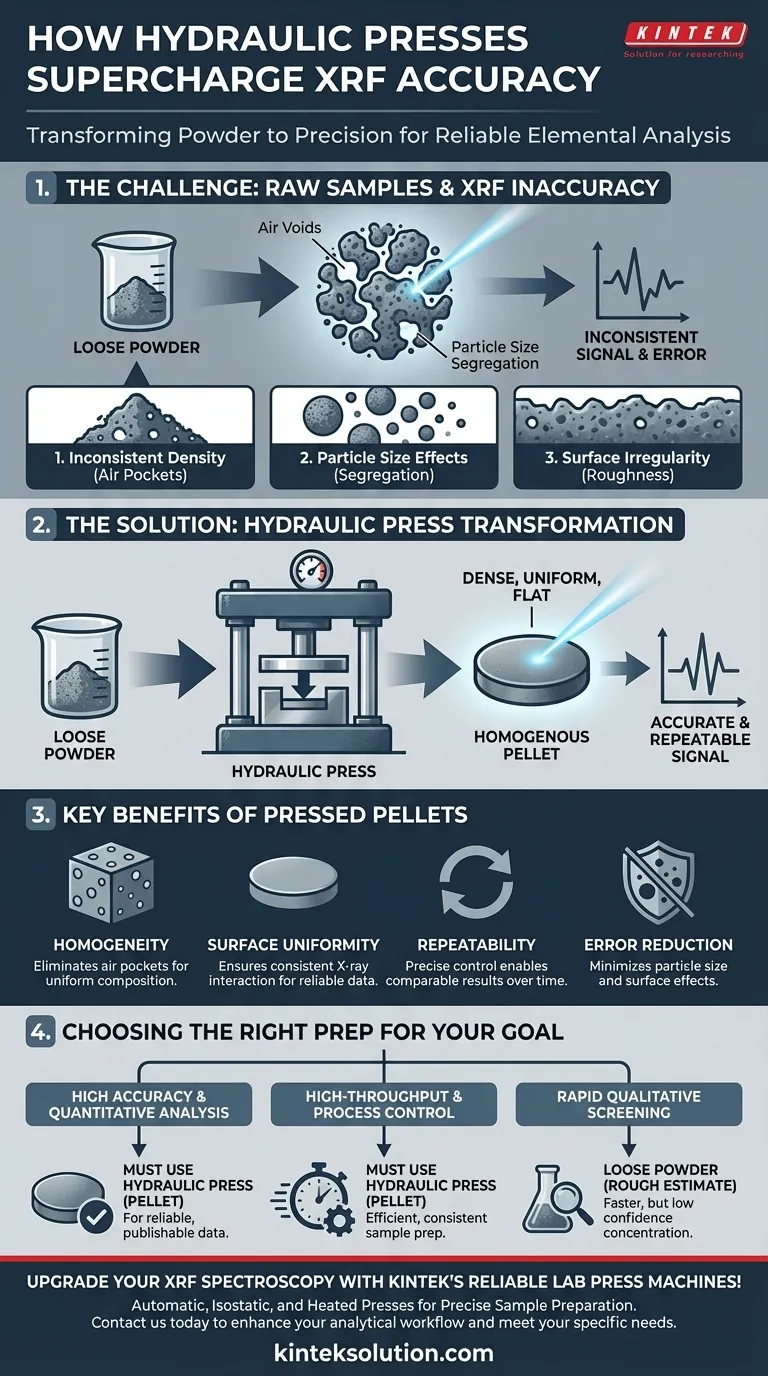

The Hydraulic Press as the Definitive Solution
A hydraulic press systematically overcomes these challenges by creating an ideal sample form factor. The high, evenly distributed pressure fundamentally changes the sample's physical properties for the better.
Creating a Homogenous, High-Density Pellet
By applying immense pressure, the press forces the individual particles of the sample together, expelling air and minimizing voids. This creates a dense, homogenous pellet that is a much more accurate representation of the bulk material.
Ensuring a Flat, Uniform Surface
When used with a pellet die, the press molds the sample into a disc with a perfectly flat and smooth surface. This standardized geometry ensures that the X-ray beam interacts with the sample in a consistent and repeatable manner every time.
Maximizing Analytical Integrity
The compacted pellet is solid and robust, preventing the sample from shifting or segregating during handling and analysis. Often, a binding or grinding aid is mixed with the sample powder to help the pellet maintain its structural integrity.
Achieving Repeatable Consistency
Hydraulic presses allow for precise and adjustable control over the applied force. This guarantees that every pellet, whether made today or next year, can be prepared under the exact same conditions, which is the cornerstone of reliable, comparable data.
Understanding the Trade-offs
While essential for accuracy, the pelletizing process requires careful consideration to avoid introducing new sources of error.
Choosing the Right Pressure
The goal is to apply enough pressure to create a stable pellet, but excessive force can sometimes damage the sample cup or, in rare cases, affect the material's structure. Consistent pressure is more important than maximum pressure.
The Risk of Binder Contamination
The binding agent used to hold the pellet together must be chosen carefully. If the binder contains any of the elements you are trying to measure in your sample, it will contaminate the reading and produce falsely high results.
Pressed Pellets vs. Loose Powder Analysis
Analyzing loose powder is faster and requires no press. However, this method is only suitable for rough, qualitative estimates where high accuracy is not a concern. For any quantitative work, pressed pellets are the industry standard.
Making the Right Choice for Your Goal
Your sample preparation method should align directly with your analytical objective.
- If your primary focus is high-accuracy quantitative analysis: Using a hydraulic press to create a solid pellet is non-negotiable. It is the only way to minimize physical errors and produce reliable, publishable data.
- If your primary focus is rapid, qualitative screening: Analyzing loose powder may be sufficient for simply identifying what major elements are present, but the reported concentrations will have a low degree of confidence.
- If your primary focus is high-throughput and process control: A hydraulic press provides the efficiency and consistency needed to prepare many samples quickly while ensuring the data is reliable enough for quality control decisions.
Ultimately, mastering the use of the hydraulic press is foundational to achieving accurate and trustworthy XRF results.
Summary Table:
| Benefit | Description |
|---|---|
| Homogeneity | Creates a uniform sample by eliminating air pockets and voids |
| Surface Uniformity | Produces a flat, smooth surface for consistent X-ray interaction |
| Repeatability | Allows precise control for reliable, comparable results across analyses |
| Error Reduction | Minimizes particle size effects and surface irregularities |
