The fundamental difference between an automatic and a manual hydraulic press lies in how pressure is generated and controlled. A manual press requires an operator to physically pump a lever to build force, whereas an automatic press uses an electric motor and programmable controls to achieve a precise, repeatable force without direct manual effort.
The decision between a manual and automatic press is a classic engineering trade-off. It forces a choice between the lower cost and simplicity of a manual system versus the superior precision, efficiency, and repeatability offered by an automated one.
The Core Difference: How Force is Generated and Controlled
The operational principle of a hydraulic press is consistent, but the method of applying force and controlling the system is what sets these two types apart.
Manual Presses: Direct Physical Effort
A manual hydraulic press is a purely mechanical device with no electronic components. It operates based on the classic Bramah Press design.
The operator uses a hand-operated lever to pump oil into the hydraulic fluid system. This repeated physical action manually generates pressure, which can create immense force—sometimes as great as 25 tons. A simple hand valve is used to relieve the pressure when the task is complete.
Automatic Presses: Programmable Electric Power
An automatic hydraulic press replaces manual labor with an automated system. It uses an electric motor to drive the hydraulic pump and electric switches to control the valves.
Instead of a lever, the operator uses buttons or a programmable interface to set the desired force. The machine operates autonomously to reach and maintain that pressure, often using an integrated manometer for precise control.
Operational Impact: Efficiency and Consistency
The choice between manual and automatic has significant consequences for workflow efficiency, labor, and the quality of the results.
The Manual Workflow: Hands-On and Deliberate
Operating a manual press is a time-consuming process. A technician must dedicate their full attention to pumping the lever, monitoring the pressure gauge, and manually releasing the load.
This hands-on involvement makes it suitable for infrequent tasks but creates a bottleneck in environments requiring high throughput.
The Automatic Workflow: Set-and-Forget Autonomy
An automatic press dramatically increases efficiency. Once programmed, it runs the cycle on its own, freeing the technician to prepare the next sample or perform other critical tasks.
This automation reduces the potential for human error and is a key advantage in busy, high-throughput laboratories or production lines.
The Impact on Results: Precision and Repeatability
Because an automatic press is controlled by a program, it can execute the exact same pressure cycle every time. This leads to far greater consistency and reliability in results compared to a manual press, where pressure application can vary between operators or even between cycles by the same operator.
This high degree of accuracy and repeatability is often essential for scientific sample preparation and quality control processes.
Understanding the Trade-offs
Neither press is inherently "better"; they are simply tools optimized for different priorities. Your decision will depend on balancing cost against performance needs.
The Advantage of Manual Presses: Affordability
The primary benefit of a manual press is its lower cost. With no motors, electronics, or complex control systems, it is a more affordable and cost-effective option.
This makes it the ideal choice for labs, workshops, or educational settings with infrequent use, smaller budgets, or where absolute precision is not the highest priority.
The Investment in Automatic Presses: Throughput and Reliability
While more expensive, the investment in an automatic press is justified by its performance benefits. The ability to increase efficiency, reduce labor costs, and produce more consistent, reliable results provides a clear return on investment in high-volume environments.
Making the Right Choice for Your Goal
To select the correct press, you must first define your most critical operational need.
- If your primary focus is cost-effectiveness and infrequent use: A manual press is the clear and logical choice due to its simplicity and lower initial investment.
- If your primary focus is high throughput and efficiency: An automatic press is superior, as it allows operators to multitask and significantly increases sample processing speed.
- If your primary focus is maximum precision and repeatability: An automatic press is essential for eliminating human variability and ensuring every cycle is identical.
Ultimately, choosing the right hydraulic press is about aligning the tool's capabilities with your specific application's demands for budget, speed, and accuracy.
Summary Table:
| Feature | Manual Hydraulic Press | Automatic Hydraulic Press |
|---|---|---|
| Force Generation | Hand-operated lever | Electric motor with programmable controls |
| Control | Manual pumping and valve release | Programmable interface for precise settings |
| Efficiency | Lower, requires full operator attention | High, allows multitasking and automation |
| Precision | Variable, prone to human error | High, ensures repeatable results |
| Cost | Lower initial investment | Higher, but offers ROI in high-throughput settings |
| Ideal Use Cases | Infrequent tasks, smaller budgets | High-volume labs, quality control, scientific prep |
Upgrade your laboratory's efficiency and precision with KINTEK's advanced hydraulic presses! Whether you need an automatic lab press for high-throughput tasks or a manual option for cost-effective solutions, our machines deliver reliable performance tailored to your needs. Contact us today to discuss how we can enhance your sample preparation and workflow!

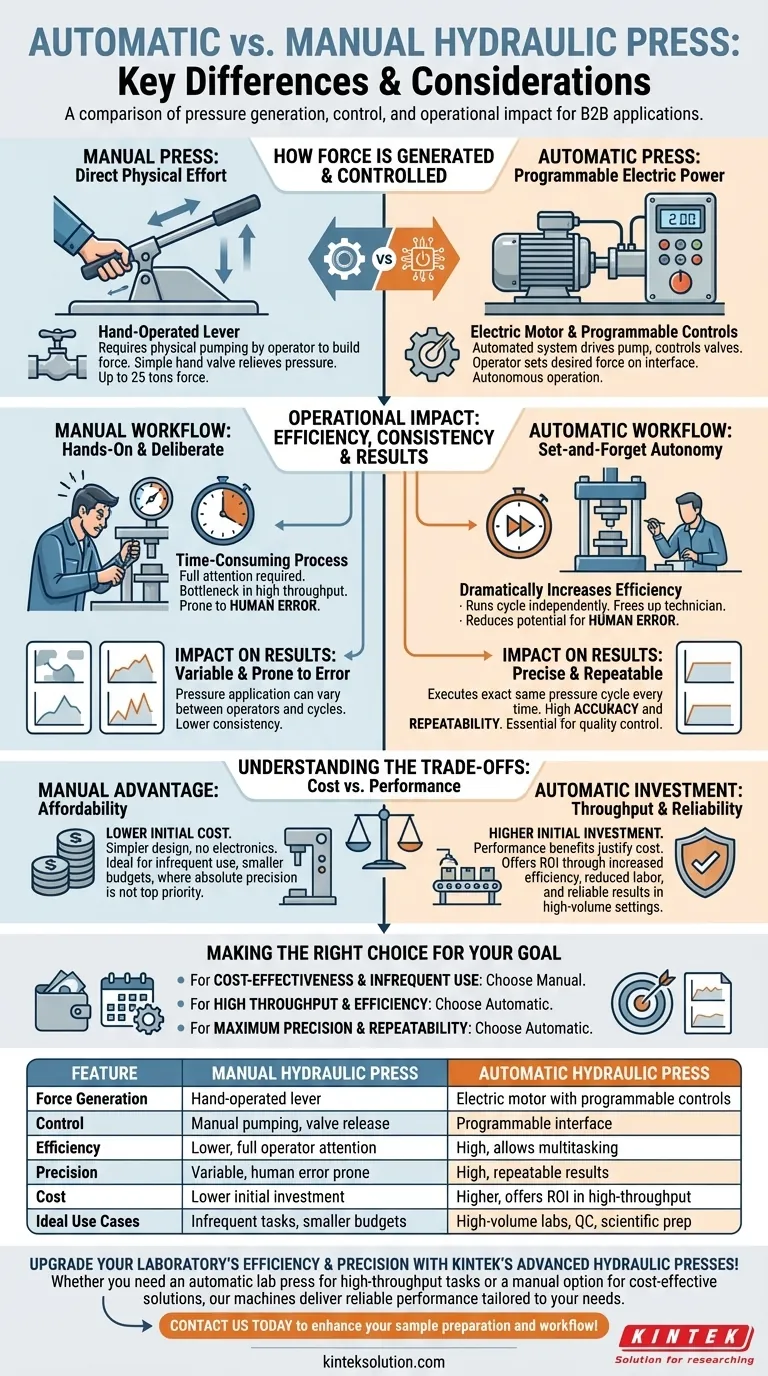

Visual Guide
