How Does Force Multiplication Work In A Hydraulic Press? Unlock High-Power Compression For Your Lab

At its core, a hydraulic press multiplies force by using a confined fluid to convert pressure into a powerful output. A small force applied to a small piston generates pressure throughout the fluid. This same pressure then acts on a much larger piston, and because force equals pressure multiplied by area, the resulting output force is magnified proportionally to the difference in piston sizes.

The fundamental principle is that pressure is constant throughout a hydraulic system. By applying this constant pressure to a larger surface area, you generate a larger force—this is the essence of force multiplication, governed by Pascal's Law.

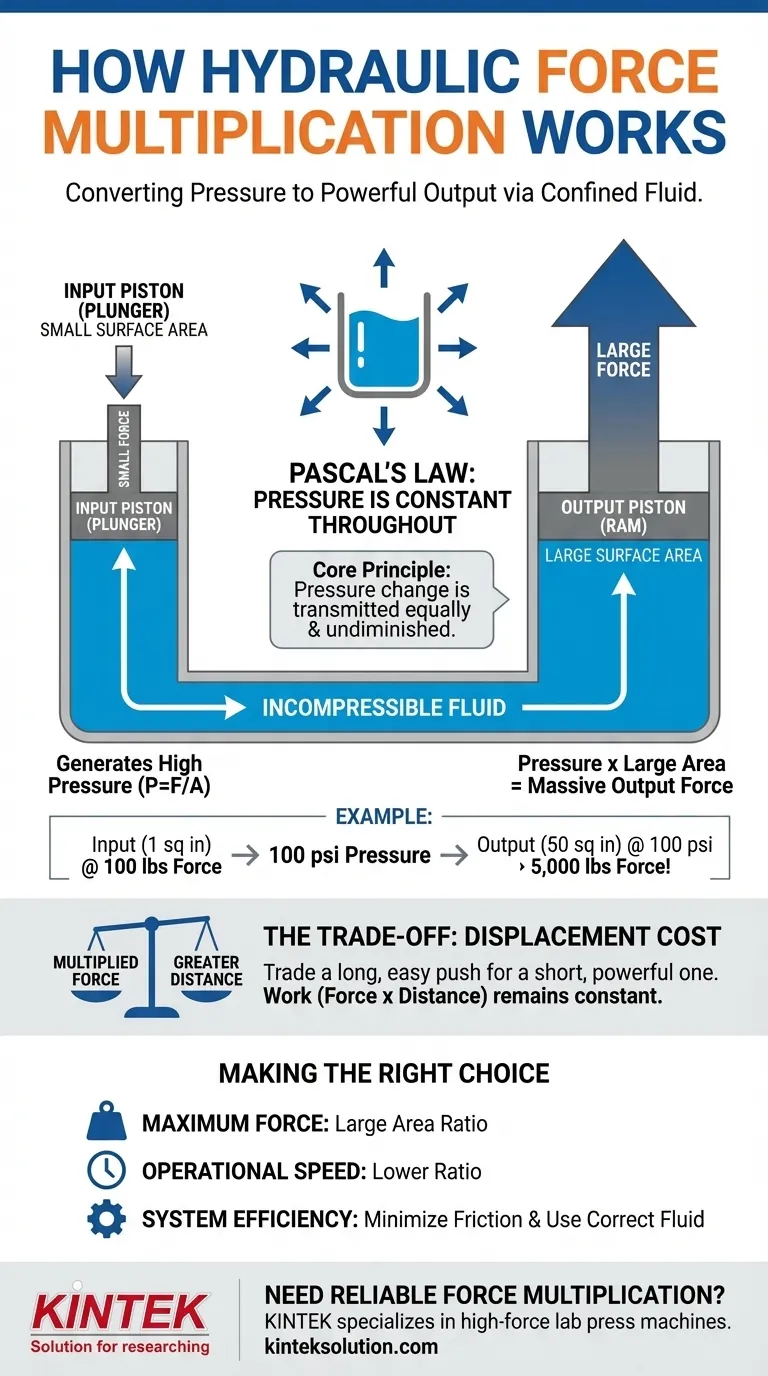

How does force multiplication work in a hydraulic press? Unlock High-Power Compression for Your Lab

The Core Principle: Pascal's Law

The entire function of a hydraulic press is built on a simple, yet profound, law of physics discovered by Blaise Pascal. Understanding this law is key to understanding the machine.

What is Pascal's Law?

Pascal's Law states that a pressure change at any point in a confined, incompressible fluid is transmitted equally and undiminished to every portion of the fluid and the walls of its container.

In simple terms, if you create pressure in one part of a sealed hydraulic system, that exact same pressure is felt everywhere else in the system.

Pressure: The Great Equalizer

Pressure is defined as Force divided by Area (P = F/A). This relationship is the key that unlocks force multiplication.

The pressure you create on the input side is the same pressure that is available on the output side. It acts as the constant linking the two ends of the system.

The Role of Incompressible Fluid

Hydraulic systems use liquids, like oil, because they are effectively incompressible. Unlike a gas, a liquid does not easily squeeze into a smaller volume.

This property ensures that when you push on the fluid, the energy is used to transmit pressure instantly, not wasted on compressing the fluid itself.

How Force is Multiplied in Practice

With Pascal's Law as the foundation, the mechanical design of the press does the rest. It's a tale of two pistons.

The Input Piston (Plunger)

The process begins when you apply a small input force to a small piston, often called the plunger.

Because this piston has a small surface area, even a modest force generates a very high pressure within the fluid (P = small Force / small Area).

The Output Piston (Ram)

This high pressure is transmitted through the fluid to a much larger piston, known as the ram.

Because the output piston has a large surface area, the same pressure exerts a massive total force (large Force = Pressure x large Area).

A Simple Mathematical Example

Imagine the input piston has an area of 1 square inch and the output piston has an area of 50 square inches.

If you apply just 100 pounds of force to the input piston, you create a pressure of 100 pounds per square inch (psi). That 100 psi is transmitted everywhere. On the output piston, that pressure results in a force of 5,000 pounds (100 psi x 50 square inches).

Understanding the Trade-offs

Force multiplication does not create energy from nothing. This advantage comes with an inherent trade-off, as dictated by the conservation of energy.

The Displacement Cost

The price you pay for multiplying force is distance. To move the large output piston up by 1 inch, you must push the small input piston a much greater distance (50 inches in our earlier example).

Force is multiplied, but the work done (Force x Distance) remains the same, minus any efficiency losses. You are trading a long, easy push for a short, powerful one.

System Inefficiencies

In the real world, no system is perfectly efficient. Factors like friction between the piston seals and the cylinder walls, as well as the viscosity of the hydraulic fluid, will slightly reduce the actual output force compared to the theoretical calculation.

Making the Right Choice for Your Goal

Understanding this principle allows you to see how hydraulic systems can be tailored for different applications.

If your primary focus is maximum force: Prioritize the largest possible area ratio between the output and input pistons.
If your primary focus is operational speed: Recognize that a very high force-multiplication ratio will result in a slow output piston.
If your primary focus is system efficiency: Ensure proper lubrication, use high-quality seals to minimize friction, and select a hydraulic fluid with the correct viscosity for your operating temperatures.

By mastering the relationship between force, pressure, and area, you can leverage simple physics to accomplish monumental tasks.

Summary Table:

Aspect	Key Information
Core Principle	Pascal's Law: Pressure in a confined fluid is transmitted equally, enabling force multiplication.
Force Multiplication	Output force = Pressure × Area of output piston; magnified by piston size difference.
Example	Input force of 100 lbs on 1 sq in piston → 100 psi → 5,000 lbs output on 50 sq in piston.
Trade-offs	Force increases, but distance decreases; energy conserved with efficiency losses from friction.
Applications	Ideal for labs needing high force for compression, molding, or material testing.
