In Warm Isostatic Pressing (WIP), the heating process works by using the pressurizing liquid itself as the heat transfer medium. This liquid, typically water or oil, is heated externally by a heat generator and then continuously injected into the sealed pressure vessel. This method ensures that the component being pressed is subjected to both uniform pressure and consistent, controlled temperature simultaneously.
The core challenge in Warm Isostatic Pressing is applying uniform heat and pressure at the same time. The process solves this by ingeniously using the liquid that creates the pressure to also deliver the heat, ensuring consistent densification of the material.
The Mechanics of Heat Transfer in WIP
To understand the process, it's helpful to break it down into its key mechanical stages. The entire system is designed for thermal precision and stability.
Pre-heating the Liquid Medium
The process begins outside the main pressing cylinder. A dedicated heat generator warms the liquid medium to the precise temperature required for the specific material being processed.
This initial step is critical, as the temperature of the liquid directly influences its viscosity and its ability to effectively transfer thermal energy to the powdered component.
Injection via the Booster Source
Once heated, the liquid is not simply poured in. A booster source injects the heated medium into the sealed pressing vessel at a controlled rate and pressure.
This active injection serves two purposes: it rapidly brings the component and the internal environment up to the target temperature, and it begins the pressurization cycle.
Maintaining Thermal Stability
During the pressing cycle, the system must compensate for any potential heat loss. This is achieved by continuously injecting or circulating the heated liquid.
The heat generator works in concert with this circulation, ensuring the liquid medium remains within a very tight temperature tolerance. This guarantees that every surface of the component experiences the same thermal conditions, leading to uniform compaction.
Why Temperature is Critical for Densification
Applying heat is not just about making the material pliable; it fundamentally alters the physics of the compaction process at a microscopic level. The temperature is a primary driver of the final product's quality.
Reducing Material Free Energy
At an atomic level, powders have a high surface area and therefore high surface free energy. Applying heat reduces the material's total free energy.
This energetic shift makes it more favorable for the powder particles to bond together, creating a new, lower-energy solid-solid interface. This is the fundamental principle driving densification.
Enhancing Particle Bonding
The thermal energy causes the formation of strong bonds at the contact points between individual powder particles. This process eliminates voids and microscopic air pockets far more effectively than pressure alone.
The influence of temperature is even more significant for finer powders, which have a naturally higher surface area to begin with.
Understanding the Trade-offs
While heating is beneficial, its application requires careful control and a clear understanding of the material's limitations.
Temperature vs. Material Properties
The chosen temperature must be a precise balance. It needs to be high enough to promote optimal densification but low enough to avoid undesirable changes to the material's microstructure, grain growth, or phase.
Every material has a specific temperature window for ideal WIP processing.
The Role of the Medium
The most common mediums are liquids like water or oil, which offer excellent heat transfer. However, for higher temperatures, specialized systems may use a gas like argon.
Gas Warm Isostatic Presses can operate at temperatures up to 500°C, enabling the processing of materials that require more thermal energy than standard liquids can provide.
The Importance of Precision Control
Even small variations in temperature across the part can lead to inconsistencies in density and mechanical properties. This makes the accuracy and reliability of the temperature control system a non-negotiable factor for achieving high-quality, repeatable results.
Making the Right Choice for Your Process
Optimizing the heating process depends entirely on your end goal. Use these principles to guide your approach.
- If your primary focus is achieving maximum density: Focus on increasing the temperature to the upper limit of the material's safe processing window to maximize free energy reduction and particle bonding.
- If your primary focus is dimensional accuracy and uniformity: Prioritize the stability of your temperature control system to ensure absolutely even heating and consistent compaction throughout the part.
- If you are working with a temperature-sensitive material: Your goal is to identify the minimum effective temperature that achieves the necessary densification without altering the material's inherent properties.
Mastering temperature control is the key to unlocking the full potential of the Warm Isostatic Pressing process.
Summary Table:
| Aspect | Details |
|---|---|
| Heating Medium | Liquid (e.g., water, oil) or gas (e.g., argon) |
| Heat Transfer | External heating and continuous injection for uniform temperature |
| Key Benefits | Consistent densification, reduced material free energy, strong particle bonding |
| Temperature Range | Up to 500°C with gas systems |
| Critical Control | Precise temperature and pressure for material integrity |
Unlock superior material densification with KINTEK's advanced lab press machines! Our automatic lab presses, isostatic presses, and heated lab presses are engineered for precise temperature and pressure control, ensuring uniform results for your laboratory needs. Whether you're working with sensitive materials or aiming for maximum density, KINTEK delivers reliable solutions tailored to your process. Contact us today to discuss how our equipment can enhance your lab's efficiency and output quality!

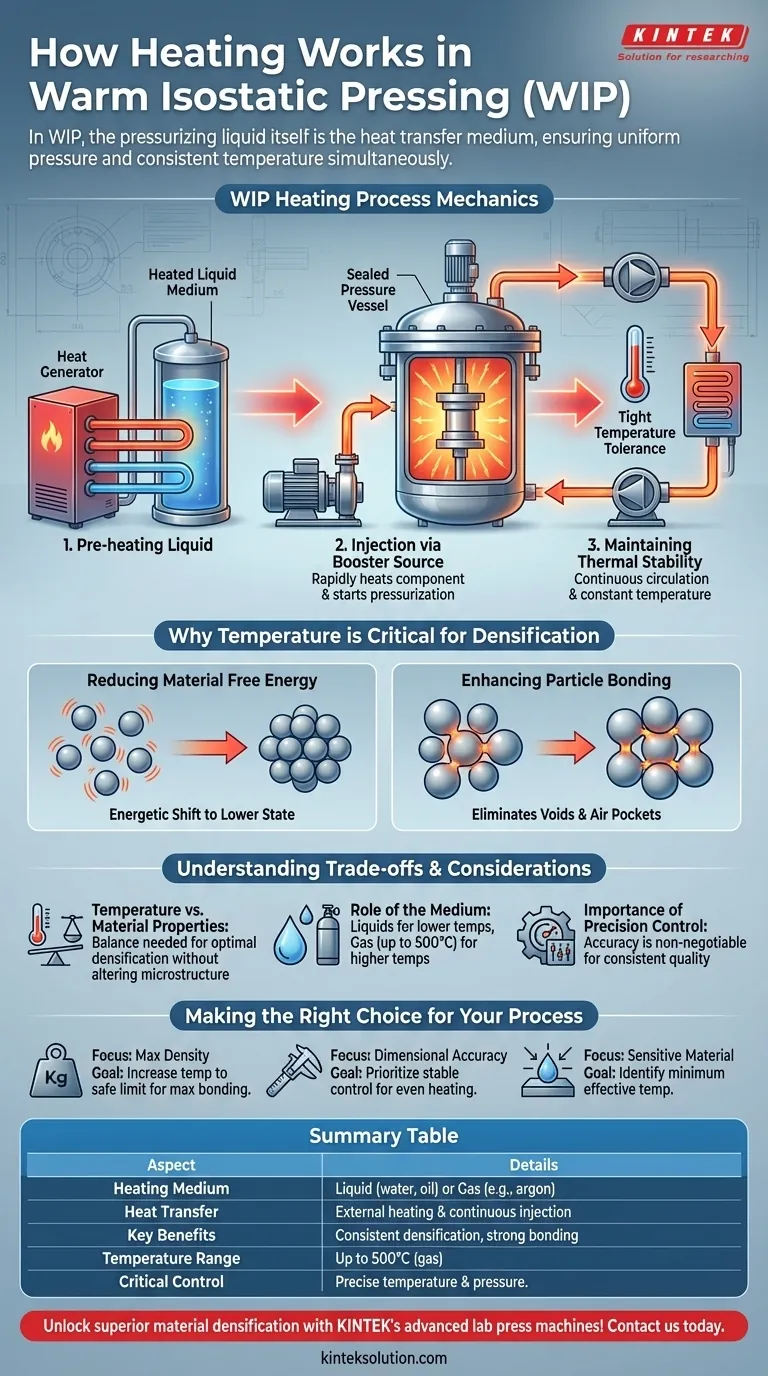

Visual Guide
