How Does A Heated Hydraulic Press Assist In Thin Film Preparation? Achieve Uniform Films For Accurate Analysis

At its core, a heated hydraulic press transforms powdered or bulk materials into a uniform thin film by applying immense, controlled force and precise thermal energy simultaneously. This combination is not merely about flattening a sample; it is a process of consolidation that eliminates internal voids and surface imperfections, creating a film with consistent density and composition.

The primary value of a heated hydraulic press is its ability to produce a perfectly homogenous and dense sample. This uniformity is the critical factor that enables accurate spectroscopic analysis and ensures predictable performance in advanced material applications.

How does a heated hydraulic press assist in thin film preparation? Achieve Uniform Films for Accurate Analysis

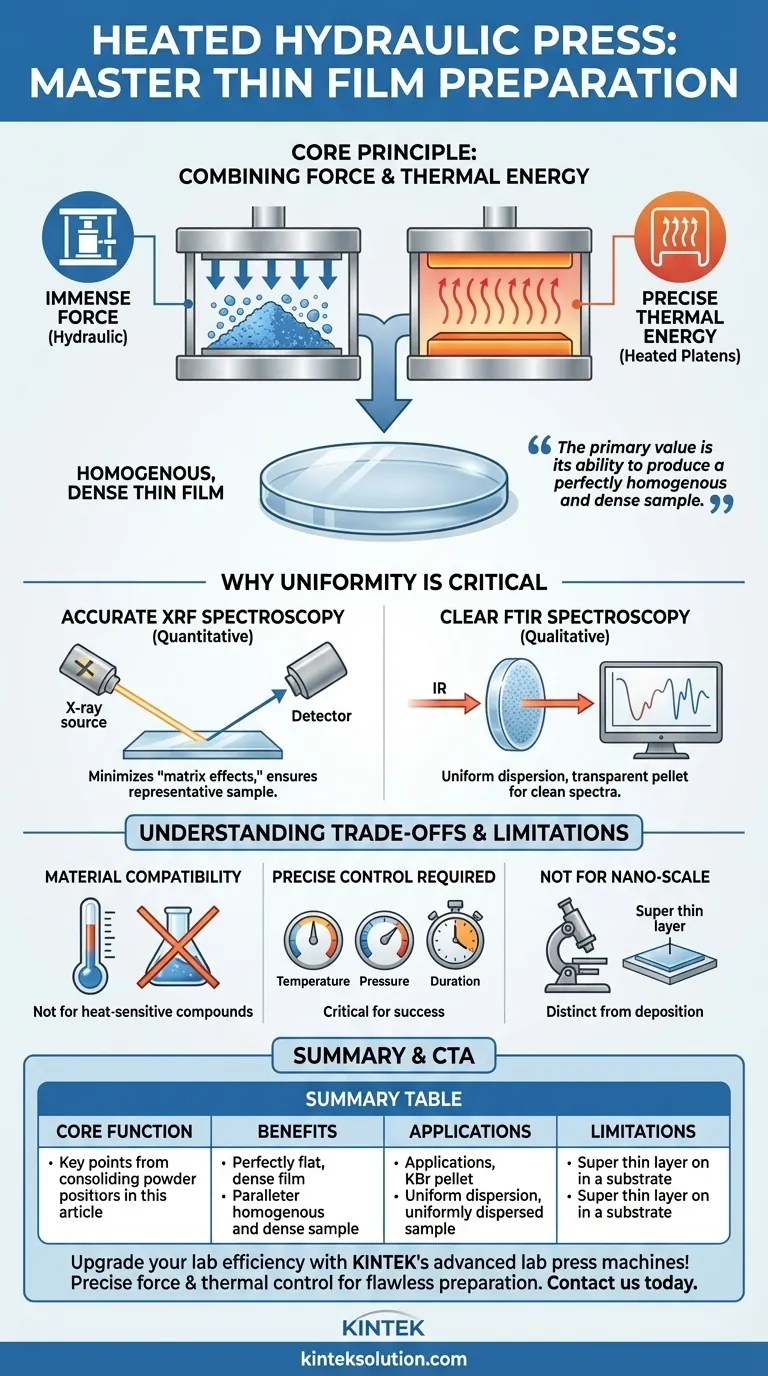

The Core Principle: Combining Force and Thermal Energy

A heated hydraulic press operates on a simple yet powerful synergistic principle. The hydraulic system provides the force, while integrated heating elements (platens) provide the thermal energy.

How Pressure Creates Density

The hydraulic press exerts a high, evenly distributed force across the sample material. This immense pressure physically compacts the material, forcing individual particles together and eliminating air gaps or voids. The result is a solid, densified disc or film from what was once a loose powder.

How Heat Enables Material Flow

Applying heat lowers the material's viscosity or softens it, especially in polymers or materials mixed with a binder. This thermal softening allows the material to flow on a microscopic level, filling in any remaining microscopic gaps that pressure alone cannot close. This ensures an ultra-smooth, uniform surface.

The Synergistic Effect

Neither heat nor pressure alone is sufficient to create a high-quality thin film from a powder. Pressure provides the raw compaction, while heat enables the fine-level material flow needed to achieve true homogeneity and a glass-like finish. Together, they create a dense, void-free sample with consistent thickness.

Why Uniformity Is Critical for Analysis

In a laboratory setting, sample quality directly dictates the quality of the analytical data. Heated hydraulic presses are essential for preparing samples for spectroscopic techniques where consistency is non-negotiable.

Preparing Samples for XRF Spectroscopy

X-ray Fluorescence (XRF) determines a sample's elemental composition. This technique is highly sensitive to surface texture and density.

A press creates a pellet with a perfectly flat and homogenous surface. This minimizes "matrix effects"—analytical errors caused by surface variations or inconsistent density—ensuring the X-ray beam interacts with a truly representative sample area for accurate quantitative results.

Creating Pellets for FTIR Spectroscopy

Fourier Transform Infrared (FTIR) spectroscopy identifies chemical bonds within a sample. For solid samples, this often involves mixing the sample powder with a transparent salt, like Potassium Bromide (KBr), and pressing it into a thin pellet.

The heated press ensures the sample is uniformly dispersed within the KBr and that the resulting pellet has a consistent density and thickness. This guarantees the infrared beam travels through a uniform path, preventing light scattering and producing a clean, interpretable spectrum free of distortions.

Understanding the Trade-offs and Limitations

While powerful, this technique is not a universal solution. Understanding its limitations is key to proper application.

Material Compatibility Is Crucial

The process is only suitable for materials that can withstand the required heat and pressure without decomposing or undergoing undesirable chemical changes. Thermally sensitive or volatile compounds may be damaged during preparation.

Process Control Is Demanding

Success depends on the precise control of three variables: temperature, pressure, and duration. Incorrect parameters can lead to cracked pellets, incomplete consolidation, or thermal degradation of the sample, rendering it useless for analysis.

Not Suited for All Film Types

This method excels at creating self-supporting pellets or relatively thick films from powders. It is distinct from thin-film deposition techniques (like sputtering or chemical vapor deposition) used to apply Angstrom- or nanometer-scale layers onto a substrate.

Making the Right Choice for Your Goal

To apply this technique effectively, align your process with your specific analytical or manufacturing objective.

If your primary focus is quantitative analysis (like XRF): Your goal is to use the press to eliminate surface and density variations that cause analytical errors and skewed results.
If your primary focus is qualitative analysis (like FTIR): You should use the press to create a transparent, homogenous pellet that provides a clear, interpretable spectrum with minimal signal noise.
If your primary focus is materials development: The press serves as a tool for prototyping and testing the mechanical or physical properties of a material when compacted under specific thermal and pressure conditions.

Mastering this preparation technique is fundamental to producing reliable data and high-quality material samples.

Summary Table:

Aspect	Key Details
Core Function	Applies controlled force and heat to transform powders into uniform thin films, eliminating voids and imperfections.
Benefits	Ensures consistent density, homogeneity, and smooth surfaces for accurate spectroscopic analysis.
Applications	Ideal for XRF and FTIR spectroscopy, materials development, and prototyping.
Limitations	Not suitable for thermally sensitive materials or nanometer-scale thin films; requires precise control of temperature, pressure, and duration.

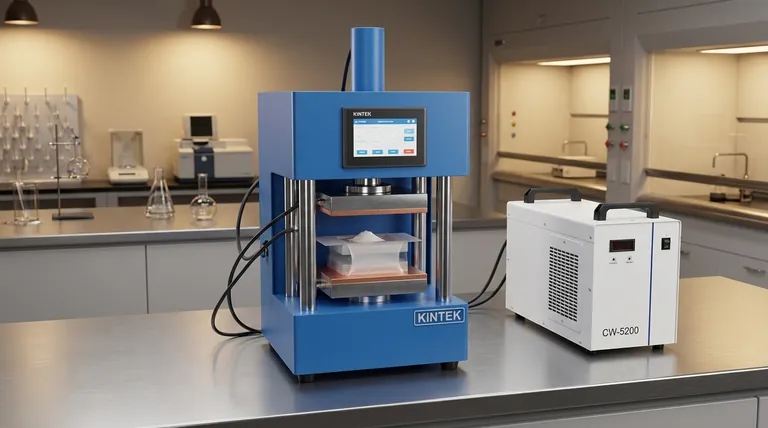

Upgrade your laboratory efficiency with KINTEK's advanced lab press machines! Whether you're conducting XRF, FTIR, or materials research, our automatic lab presses, isostatic presses, and heated lab presses deliver precise force and thermal control for flawless thin film preparation. Experience enhanced sample uniformity, reduced analytical errors, and faster results. Contact us today to discuss how our solutions can meet your specific lab needs and drive your success!
