At its core, the hydraulic principle demonstrates efficiency by using an incompressible fluid as a nearly perfect transmitter of energy. Because the fluid cannot be squeezed into a smaller volume, any force applied to it is instantly converted into pressure that performs work elsewhere in the system, enabling immense force multiplication with minimal energy loss.
The true efficiency of a hydraulic system stems from one key property: the fluid's refusal to be compressed. This turns the fluid into a rigid medium that trades a small force applied over a long distance for a massive force exerted over a short distance.
The Core Mechanism: Pascal's Law in Action
To understand hydraulic efficiency, you must first understand the physics governing the fluid itself. The entire system is an elegant application of a principle discovered in the 17th century.
What "Incompressible" Really Means
An incompressible fluid is one whose volume does not meaningfully decrease under pressure. While no fluid is perfectly incompressible, hydraulic oils are extremely close.
This property is the foundation of efficiency. It ensures that the energy you put into the system isn't wasted on the "overhead" of squeezing the fluid itself. Instead, that energy is immediately available to do work.
Pressure as the Equalizer
Hydraulic systems operate on Pascal's Law, which states that pressure applied to an enclosed fluid is transmitted undiminished to every portion of the fluid and the walls of the containing vessel.
The formula for pressure is simple: Pressure = Force / Area (P = F/A). In a sealed hydraulic system, the pressure is constant everywhere.
How Force Is Multiplied
This constant pressure is what allows for force multiplication. Imagine a system with two pistons: a small input piston (Area 1) and a large output piston (Area 2).
Because the pressure is equal, we can say F1/A1 = F2/A2. If Area 2 is ten times larger than Area 1, the output Force 2 will be ten times greater than the input Force 1. The fluid acts like a lever, amplifying your initial effort.
Why Incompressibility Equals Efficiency
The term "efficiency" can be misleading. In this context, it refers to how effectively input energy is converted to useful output force, not creating energy from nothing.
Minimizing Wasted Energy
Contrast this with a compressible fluid like air (pneumatics). When you first apply force to a pneumatic system, a significant portion of the initial energy is spent just compressing the air to a point where it can begin to move a piston.
In hydraulics, this "waste" is nearly zero. The force is immediately converted to pressure and then back into output force.
Predictable and Rigid Response
Because the fluid doesn't change volume, the system's response is immediate, rigid, and highly predictable. Pushing the input piston one inch results in a precise and instantaneous movement of the output piston.
This "stiffness" is critical for heavy machinery like excavators or presses that require both immense power and fine control.
High Power Density
The ability of an incompressible fluid to handle extremely high pressures allows hydraulic systems to transmit enormous amounts of power in a relatively small and lightweight package. This is why hydraulics are ubiquitous in aerospace, construction equipment, and industrial machinery.
Understanding the Trade-offs
This force multiplication does not violate the laws of physics. There is a necessary trade-off that is crucial to understand.
The Cost of Movement
While you get more force out, you get less distance. To move the large piston by one inch, the small piston must travel a much greater distance.
The work done remains constant (ignoring minor frictional losses). Work is calculated as Force x Distance. A small force applied over a long distance equals a large force exerted over a short distance.
System Complexity and Maintenance
Hydraulic systems must be perfectly sealed to function. They are vulnerable to leaks, which can be an environmental concern and a point of failure.
The hydraulic fluid itself can also degrade over time due to heat and contamination, requiring regular maintenance and replacement.
Thermal Considerations
The high pressures and friction within a hydraulic system generate significant heat. This heat must often be managed with coolers or heat exchangers, adding complexity and another potential point of failure to the overall system design.
Making the Right Choice for Your Goal
Understanding this principle allows you to evaluate where a hydraulic system is the superior choice.
- If your primary focus is maximum force multiplication: A hydraulic system is unmatched; prioritize increasing the area ratio between your input and output pistons.
- If your primary focus is precision and responsive control under heavy load: The rigid, incompressible nature of hydraulic fluid provides the stiffness necessary for fine adjustments.
- If your primary focus is system simplicity and low maintenance: For low-force applications, a simpler mechanical lever or a pneumatic system may be more practical and cost-effective.
By mastering the relationship between force, pressure, and area, you unlock the ability to design and implement exceptionally powerful and precise systems.
Summary Table:
| Aspect | Key Insight |
|---|---|
| Core Principle | Incompressible fluids transmit force instantly via Pascal's Law, enabling efficient energy transfer with minimal loss. |
| Force Multiplication | Achieved through area differences in pistons (e.g., small input force over large area yields high output force). |
| Efficiency Benefits | Immediate response, rigid control, high power density, and reduced energy waste compared to compressible fluids. |
| Trade-offs | Distance reduction for force gain; requires sealing, maintenance, and heat management due to system complexity. |
| Ideal Applications | Best for high-force tasks, precision under load, and compact power transmission in machinery and labs. |
Unlock the power of hydraulic efficiency for your laboratory! KINTEK specializes in advanced lab press machines, including automatic lab presses, isostatic presses, and heated lab presses, designed to leverage incompressible fluids for superior force multiplication, precise control, and reliable performance in research and testing. Whether you need high-pressure processing or exacting material handling, our equipment delivers unmatched efficiency and durability. Contact us today to discuss how KINTEK can enhance your lab's capabilities and drive your projects forward!

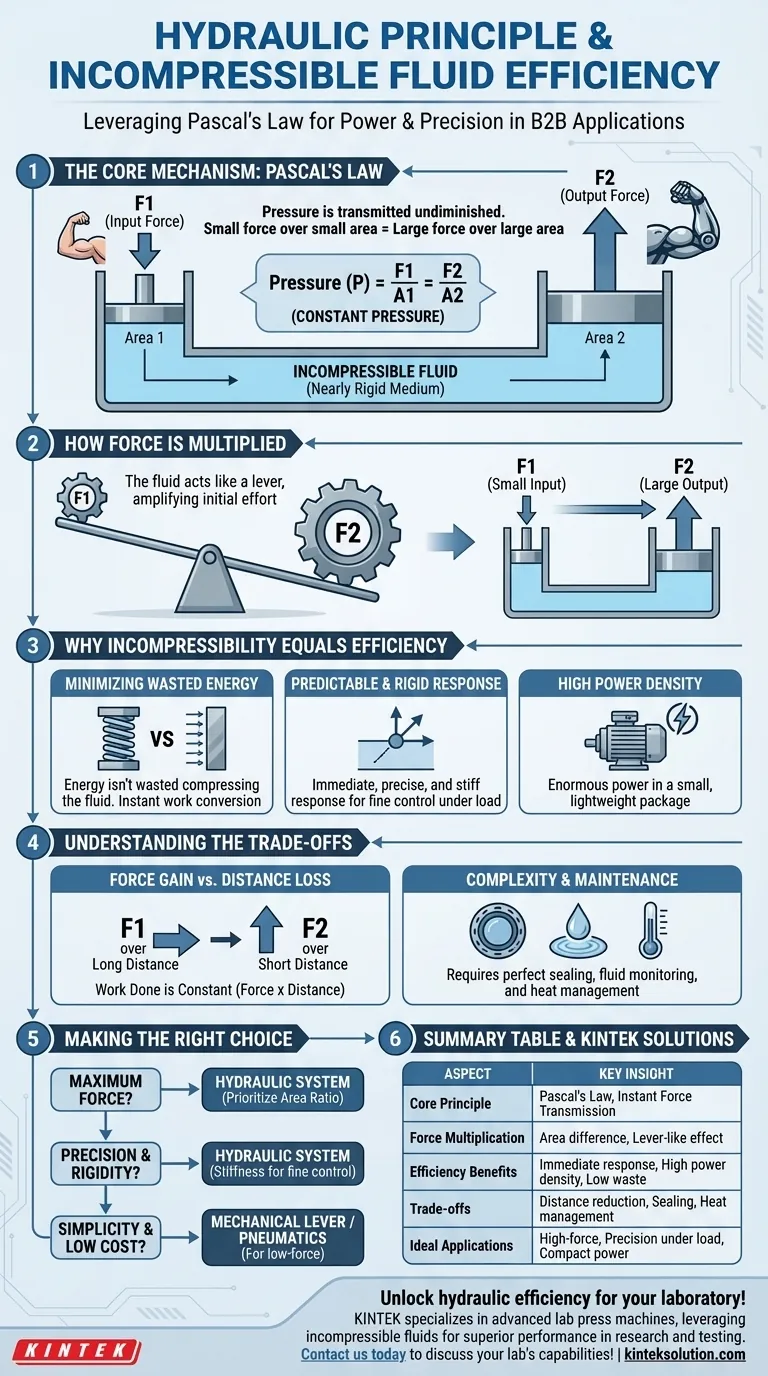

Visual Guide
