At its core, a hot press vacuum system functions by using negative pressure to remove all air from between the material layers before the main heat and pressure are applied. This two-step process, often involving an initial low-pressure vacuum followed by a high-pressure vacuum, ensures that adhesives or laminates can bond perfectly to a workpiece without any trapped air pockets, bubbles, or voids.
The primary purpose of a vacuum system is not merely to suck out air; it is to create a pristine, contamination-free environment that guarantees the heat and pressure of the press can achieve a flawless, permanent bond between materials.
The Core Problem: Why a Vacuum is Necessary
A standard hot press uses only heat and positive pressure. While effective for many applications, it leaves the process vulnerable to a critical flaw when dealing with laminates, veneers, or complex shapes.
Trapped Air: The Enemy of a Perfect Bond
When layers of material (like a wood substrate and a decorative laminate) are placed in a press, a microscopic layer of air is inevitably trapped between them.
Without a vacuum, closing the press and applying heat compresses this trapped air. The air has nowhere to go.
The Consequence of Air Pockets
As the adhesive cures, these compressed air pockets create voids or bubbles under the surface. This leads to delamination, a weak bond, and visible surface defects, compromising the structural integrity and aesthetic quality of the final product.
The Solution: Creating a Void First
The vacuum system solves this problem proactively. By evacuating the chamber before the main pressure is applied, it removes the air that would otherwise become trapped, ensuring total contact between the adhesive and the material surfaces.

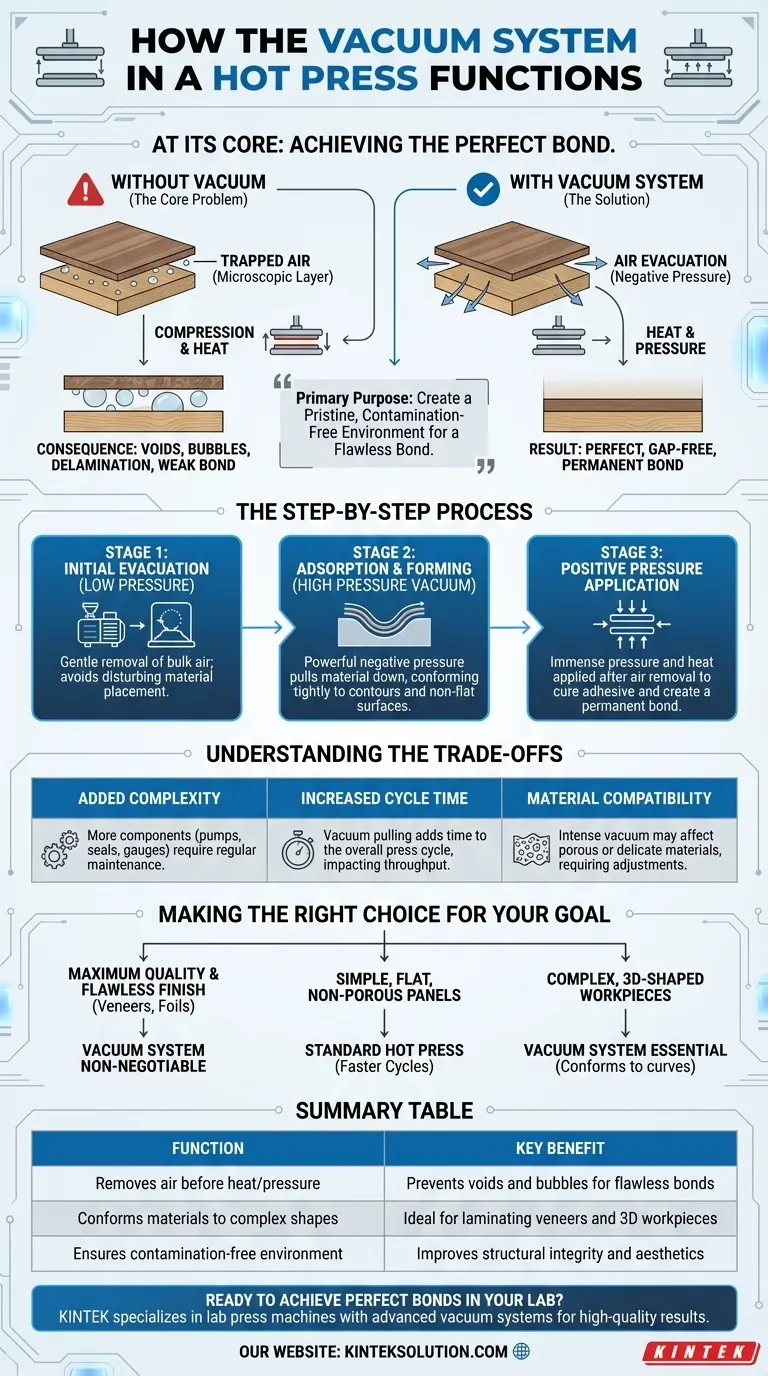

How the Vacuum System Functions Step-by-Step
The vacuum process is a carefully controlled sequence designed to prepare the workpiece for perfect bonding. It works in concert with the press's primary hydraulic or pneumatic systems.
Stage 1: Initial Evacuation (Low Pressure)
Once the workpiece is loaded and the press is sealed, the vacuum pump begins to remove the bulk of the air from the chamber. This is often a gentle, low-pressure stage to avoid disturbing the placement of the materials.
Stage 2: Adsorption and Forming (High Pressure Vacuum)
Next, a higher-pressure vacuum can be applied. This powerful negative pressure actively pulls the flexible top material (like a vinyl or laminate) down, forcing it to conform tightly to every contour of the workpiece. This stage is critical for achieving a "formed" or "molded" effect on non-flat surfaces.
Stage 3: Positive Pressure Application
With the vacuum held and all air removed, the primary system of the hot press engages. The platens apply immense positive pressure and controlled heat. This final step cures the adhesive, creating a permanent, gap-free bond that was only made possible by the preceding vacuum stages.
Understanding the Trade-offs
While highly effective, incorporating a vacuum system introduces specific considerations that are important to understand for any operator or engineer.
Added Complexity and Maintenance
A vacuum system adds pumps, seals, hoses, and gauges to the machine. These components require regular inspection and maintenance to prevent leaks, which would render the entire system ineffective and compromise product quality.
Increased Cycle Time
Pulling a proper vacuum takes time. Depending on the size of the chamber and the power of the pump, this can add seconds or even minutes to the overall cycle time of the press, impacting total throughput.
Material Compatibility
The intense negative pressure can affect certain materials. Highly porous substrates or delicate films may require careful adjustment of the vacuum level to prevent damage or deformation during the evacuation stage.
Making the Right Choice for Your Goal
Whether a vacuum system is essential depends entirely on the quality standards and physical characteristics of your project.
- If your primary focus is maximum quality and a flawless finish: A vacuum system is non-negotiable, especially for laminating veneers or foils onto substrates.
- If your primary focus is bonding simple, flat, non-porous panels: A standard hot press without a vacuum may be sufficient and offer faster cycle times.
- If you are working with complex, 3D-shaped workpieces: A vacuum is essential to ensure the laminate material conforms to every curve and detail without air entrapment.
Ultimately, understanding the vacuum system transforms it from a simple machine feature into a deliberate tool for achieving unparalleled bonding quality.
Summary Table:
| Function | Key Benefit |
|---|---|
| Removes air before heat/pressure | Prevents voids and bubbles for flawless bonds |
| Conforms materials to complex shapes | Ideal for laminating veneers and 3D workpieces |
| Ensures contamination-free environment | Improves structural integrity and aesthetics |
