While Cold and Hot Isostatic Pressing (CIP and HIP) are foundational technologies for powder consolidation, they are not the only options. The primary alternatives are Warm Isostatic Pressing (WIP), which offers an intermediate temperature solution, and Shock-Wave Compaction, an ultra-fast method that uses high-pressure shock waves to densify materials. These alternatives address specific limitations of CIP and HIP, particularly regarding material sensitivity, microstructure preservation, and processing time.
Choosing a powder compression technology is a critical decision that balances the final part's required density against the material's sensitivity to heat. The best alternative to traditional CIP or HIP is one that achieves your performance targets without compromising the material's unique microstructure or violating project cost and speed constraints.
A Primer on Isostatic Pressing (CIP & HIP)
To understand the alternatives, we must first establish the baseline. Isostatic pressing involves subjecting a component to uniform pressure from all sides to create a solid, densified part from a powder.
Cold Isostatic Pressing (CIP): The Room-Temperature Baseline
CIP applies this uniform pressure at or near room temperature (typically below 93°C). Its primary function is to consolidate powdered materials into a "green" or unsintered component.
This green part is solid enough to be handled but has not yet reached its final density or strength. It requires a subsequent sintering (heating) step to achieve its final properties. CIP is highly versatile, used for materials ranging from ceramics and powdered metals to plastics and graphite.
Hot Isostatic Pressing (HIP): Density at a High Cost
HIP takes the process a step further by applying both high pressure (up to 200 MPa) and high temperature (up to 2000°C) simultaneously.
This combination allows for the creation of fully dense parts with superior mechanical properties in a single step, making it ideal for high-performance engineered ceramics and critical metal components. However, this performance comes with significant downsides.
Exploring the Alternatives
Alternatives to CIP and HIP exist to solve specific challenges, primarily related to heat sensitivity and the preservation of fine-grained microstructures.
Warm Isostatic Pressing (WIP): The Intermediate Solution
WIP operates in the space between CIP and HIP. It includes a heating element, allowing for processing at moderately elevated temperatures that are still well below the threshold of HIP.
This method is designed for materials that cannot be effectively formed at room temperature but would be damaged by the extreme heat of HIP. It provides a crucial middle ground for consolidating specialized polymers or other temperature-sensitive powders.
Shock-Wave Compaction: Ultra-Fast Densification
This technology is a radical departure from traditional pressing. It uses a high-pressure shock wave, generated by an impact or explosion, to compact powdered materials.
The key advantage is speed. The entire densification event occurs in microseconds, with extremely short heating times. This is critical for consolidating nanopowders into a fully dense part without causing grain growth—a common problem in the prolonged high-temperature environment of HIP.
Understanding the Trade-offs
The decision to use an alternative is driven by the inherent limitations of Hot Isostatic Pressing.
The Problem of Grain Growth
The extended time at high temperatures during HIP can cause the individual grains within the material's microstructure to grow larger. This can be detrimental to the final part's strength and toughness.
Shock-wave compaction directly solves this by consolidating the material so quickly that the grains have no time to grow, thus preserving the fine-grained or nanostructured properties of the initial powder.
Production Speed and Cost
HIP is a batch process with slow cycle times, making it unsuitable for high-volume manufacturing. The process also relies on highly uniform, spray-dried powders, which are costly.
Furthermore, parts made via HIP often have poor surface accuracy due to the flexible tooling used, requiring expensive and time-consuming post-processing like machining. Alternatives may offer faster cycles or reduce the need for secondary operations.
How to Select the Right Technology
Your choice of technology must be guided by the specific goals of your project.
- If your primary focus is achieving maximum density in engineered ceramics without budget or time constraints: HIP remains the gold standard for its ability to eliminate internal porosity.
- If your primary focus is preserving a nanostructure and preventing grain growth: Shock-Wave Compaction is the superior choice for its ultra-fast processing time.
- If your primary focus is processing temperature-sensitive materials that need heat but can't withstand HIP temperatures: Warm Isostatic Pressing (WIP) offers the necessary controlled, intermediate environment.
- If your primary focus is creating a cost-effective "green" part for later sintering: Cold Isostatic Pressing (CIP) is the most versatile and economical starting point.
By understanding these core trade-offs, you can select the consolidation method that aligns precisely with your material, performance, and production goals.
Summary Table:
| Technology | Key Features | Best For |
|---|---|---|
| Warm Isostatic Pressing (WIP) | Intermediate temperature processing | Temperature-sensitive materials |
| Shock-Wave Compaction | Ultra-fast densification, prevents grain growth | Nanopowders and fine-grained materials |
| Cold Isostatic Pressing (CIP) | Room-temperature pressing, versatile | Cost-effective green parts for sintering |
| Hot Isostatic Pressing (HIP) | High temperature and pressure, single-step | Maximum density in high-performance materials |
Need expert guidance on selecting the right lab press machine for your powder consolidation needs? KINTEK specializes in automatic lab presses, isostatic presses, heated lab presses, and more to help laboratories achieve precise results with enhanced efficiency and cost savings. Contact us today to discuss how our solutions can optimize your material processing and meet your specific project goals!

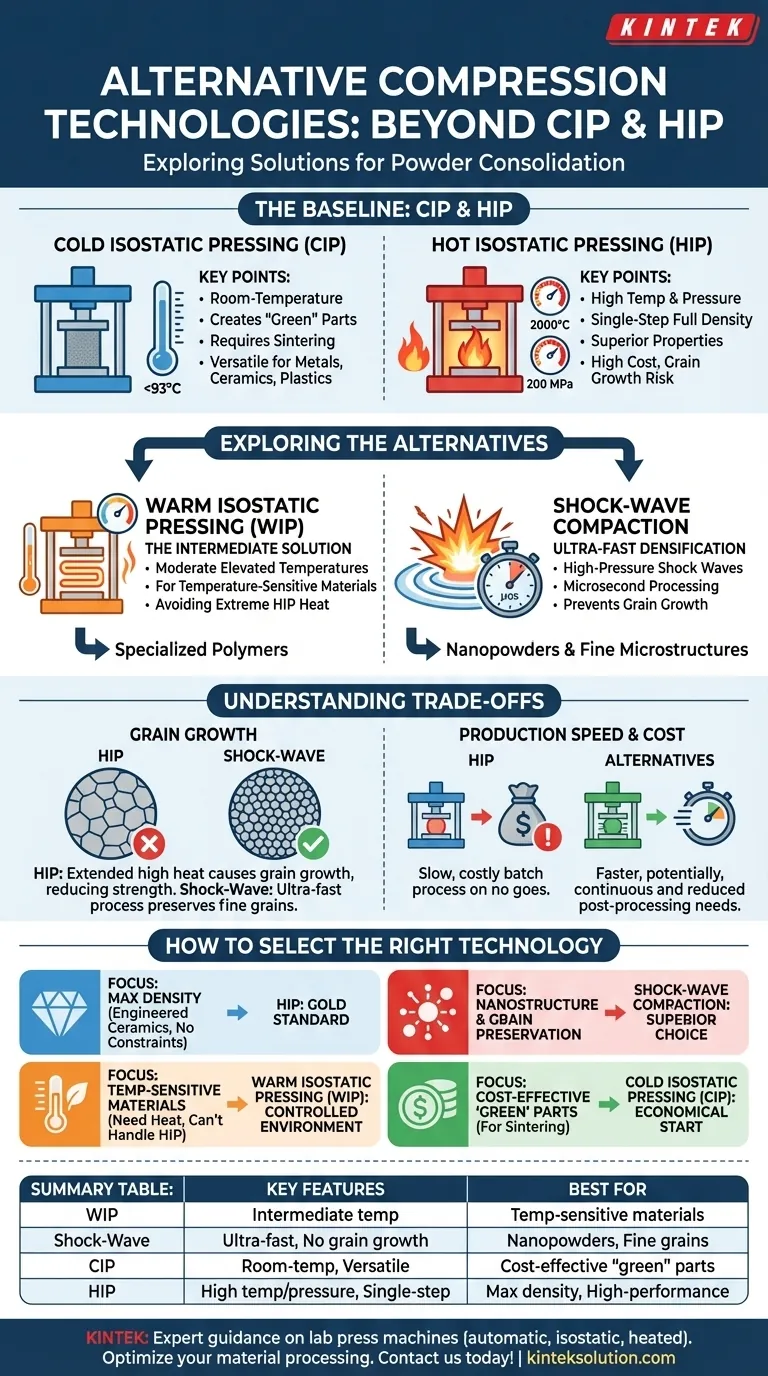

Visual Guide
