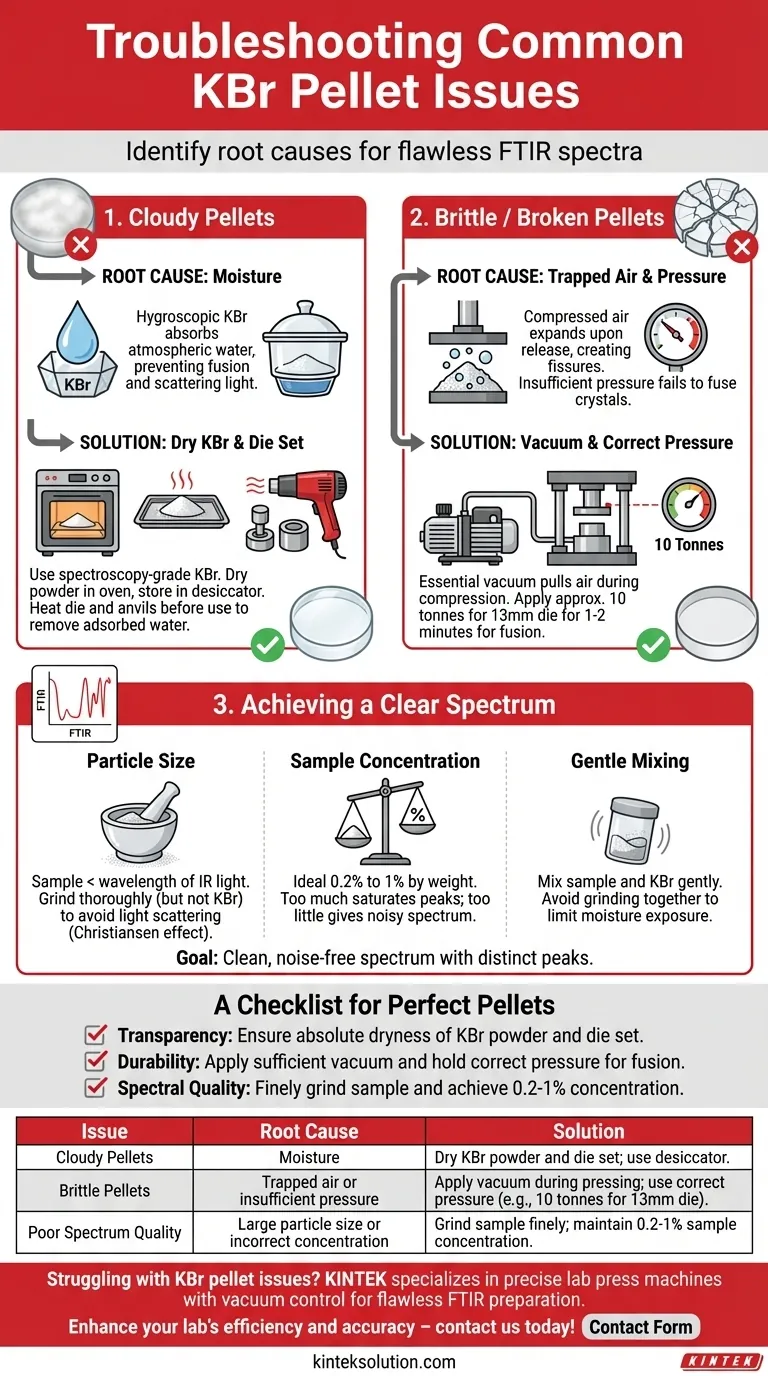

To troubleshoot common KBr pellet issues, focus on the root cause. Cloudy pellets are almost always caused by moisture contamination, which requires drying your KBr powder and die set. Pellets that break easily are typically the result of trapped air, a problem solved by ensuring an adequate vacuum is pulled on the die set during pressing.
The quality of a KBr pellet is not a matter of luck, but a direct result of controlling three key variables: moisture, particle size, and pressure. Mastering the preparation technique by addressing these factors will consistently produce transparent, durable pellets for high-quality FTIR spectra.
The Root Cause of Cloudy Pellets: Moisture
A cloudy or opaque pellet is the most common failure mode, and it almost always points to the presence of water. Water scatters infrared light and has strong absorption bands of its own, compromising your entire analysis.
Why Moisture Is the Enemy
Potassium bromide (KBr) is hygroscopic, meaning it readily absorbs moisture from the atmosphere. This absorbed water prevents the KBr from properly fusing into a transparent disc under pressure, resulting in a pellet that scatters light and appears cloudy.
Ensuring Dry KBr Powder
Always start with spectroscopy-grade KBr powder. If you suspect it has been exposed to ambient air, dry it in a laboratory oven before use. Store it in a desiccator to keep it dry.
Preparing Your Die Set and Anvils
The metal surfaces of your pellet die and anvils also hold a thin film of adsorbed water. Gently heat the components with a heat gun or in an oven before use. This ensures that no moisture is transferred to your dry KBr powder during the pressing process.
Solving Brittle Pellets: Pressure and Air
A pellet that cracks or shatters upon release from the die is frustrating and wastes valuable sample. This mechanical failure is typically due to trapped air or improper pressure application.
The Critical Role of Vacuum
When KBr powder is pressed, air trapped between the salt crystals gets compressed. Upon releasing the hydraulic pressure, this compressed air expands rapidly, creating fissures that crack the pellet. Using a die set with a vacuum port is essential for removing this air before and during compression.
Applying Correct Pressure
Sufficient pressure is required to cause the KBr crystals to deform and "flow," fusing them into a solid, transparent matrix. A load of approximately 10 tonnes on a 13 mm die is a standard starting point. Holding this pressure for a minute or two allows trapped air to escape and the material to fully compact.
Achieving a Clear Spectrum
Beyond the physical appearance of the pellet, the ultimate goal is a clean, noise-free spectrum. This requires paying attention to the sample itself.
The Importance of Particle Size
For a clear spectrum, the particle size of your solid sample must be smaller than the wavelength of the infrared light being used. Large particles cause significant light scattering (an artifact known as the Christiansen effect), which results in a distorted, sloping baseline and reduced spectral quality. Grind your sample thoroughly, but do not grind the KBr.
Optimizing Sample Concentration
The ideal concentration of sample within the KBr is very low, typically 0.2% to 1% by weight. Too much sample will cause the strongest absorption bands to be completely saturated ("flat-top" peaks), losing all quantitative information. Too little sample results in a weak, noisy spectrum where peaks are difficult to distinguish from the baseline.
The Art of Mixing
Once your sample is finely ground, add it to the KBr powder. Mix gently by shaking or tumbling. Avoid grinding the sample and KBr together, as this unnecessarily extends the mixture's exposure to atmospheric moisture.
Understanding the Trade-offs and Pitfalls
Achieving the perfect pellet involves balancing competing factors. Being aware of common mistakes can save significant time.
Pitfall: Over-Grinding the Sample
While fine particles are necessary, some sensitive materials can undergo chemical changes or phase transitions (polymorphism) if ground too aggressively. Always use the gentlest grinding method that achieves the required particle size.
Pitfall: Using Too Much KBr
It may be tempting to use a large amount of KBr to make a thick, robust pellet. However, using only the minimum amount of powder necessary to just coat the anvil faces results in a thinner, more transparent pellet that improves overall light throughput to the detector.
Pitfall: Inconsistent Temperature
Using a hot die set with room-temperature KBr powder can cause issues. For best results, allow all components—the die set, anvils, and powder—to equilibrate to the same temperature before pressing.
A Checklist for Perfect Pellets
Use these guidelines to diagnose and solve your specific issue, moving from troubleshooting to a reliable standard procedure.
- If your primary focus is transparency (avoiding cloudiness): The key is absolute dryness of both your KBr powder and your die set components.
- If your primary focus is durability (avoiding breakage): The key is applying sufficient vacuum and holding the correct pressure to eliminate trapped air and allow the KBr to fuse.
- If your primary focus is spectral quality (avoiding noise and distortion): The key is grinding your sample finely and achieving the correct sample-to-KBr concentration.
By systematically controlling these factors, you can transform KBr pellet preparation from a frustrating art into a reproducible science.
Summary Table:
| Issue | Root Cause | Solution |
|---|---|---|
| Cloudy Pellets | Moisture contamination | Dry KBr powder and die set; use desiccator |
| Brittle Pellets | Trapped air or insufficient pressure | Apply vacuum during pressing; use correct pressure (e.g., 10 tonnes for 13 mm die) |
| Poor Spectrum Quality | Large particle size or incorrect concentration | Grind sample finely; maintain 0.2-1% sample concentration |
