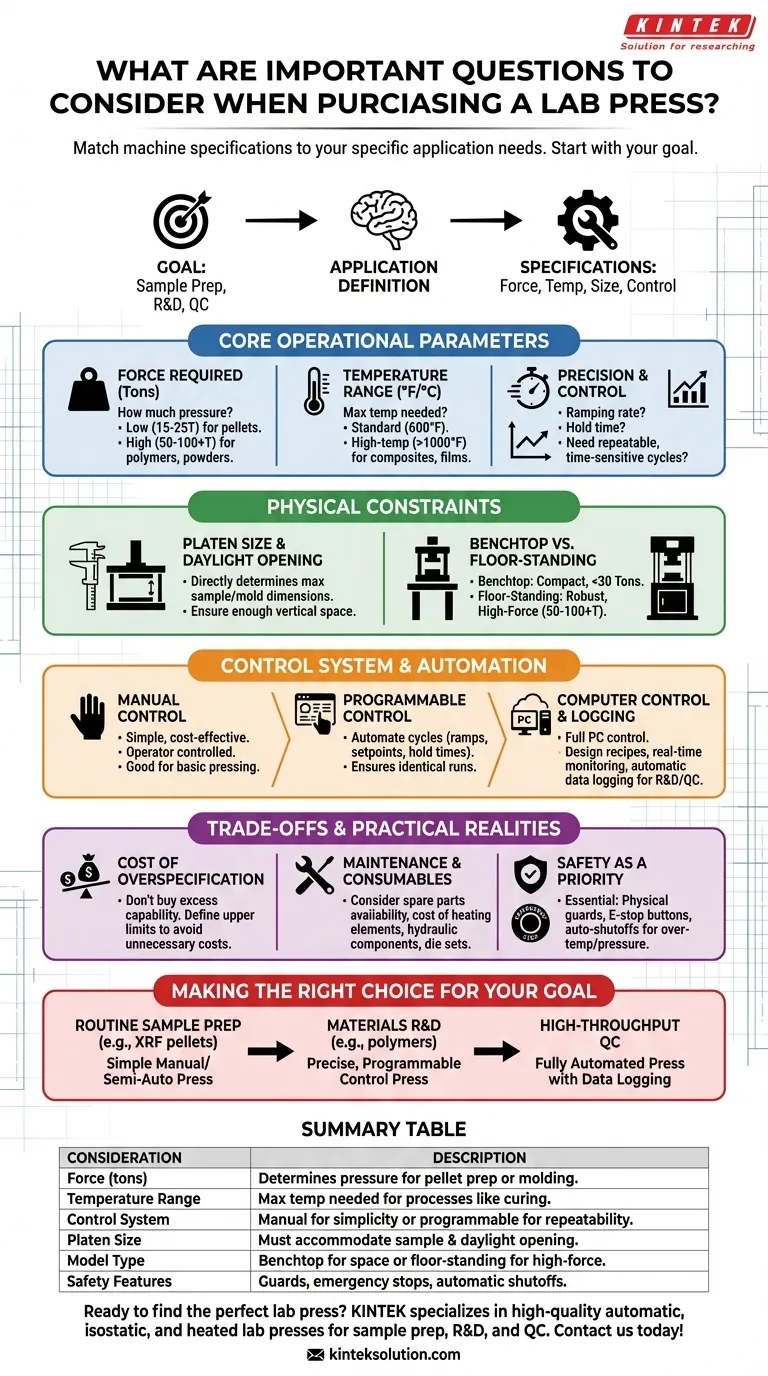

What Are Important Questions To Consider When Purchasing A Lab Press? Key Factors For Your Lab's Success

Choosing the right lab press is a process of matching machine specifications to your specific application needs. The most critical factors to define are your required force in tons, your necessary temperature range, the platen size your samples demand, the physical footprint of the unit, and the level of control automation your process requires for repeatability.

A lab press is not a one-size-fits-all instrument. The core mistake is shopping for features before clearly defining your end goal. The best approach is to work backward from your application—whether it's sample preparation, materials testing, or lamination—to determine the precise technical specifications you need.

Defining Your Core Operational Parameters

The performance of your press is dictated by three primary factors: force, temperature, and control. Getting these right is non-negotiable for achieving reliable and repeatable results.

How much force is required?

The force, typically measured in tons, is the most fundamental specification. It dictates the pressure you can apply to your sample.

Applications like preparing KBr or XRF pellets may only require 15-25 tons of force. In contrast, molding advanced polymers or compacting metallic powders can demand 50, 100, or even more tons of pressure.

What is your required temperature range?

Many applications, such as curing composites or creating polymer films, require heated platens. You must define the maximum temperature your process will ever need.

Standard heated presses often reach 600°F (approx. 315°C), while high-temperature models can exceed 1000°F (approx. 540°C). Always select a press with a maximum temperature safely above your highest process requirement.

How precise must your process be?

Control extends beyond simply setting a target. Consider if you need to manage the rate of change (ramping) for force or temperature.

Also, determine the required hold time. Some processes need to maintain a precise temperature and pressure for extended periods. Simple manual presses excel at basic pressing, but repeatable, time-sensitive cycles demand a programmable controller.

Matching the Press to Your Physical Constraints

A press must fit both your sample and your laboratory space. Physical dimensions are just as critical as operational specifications.

What platen size do you need?

The platen size directly determines the maximum dimensions of your sample or mold. Choose a platen that offers enough surface area for your largest application, with a small margin for handling.

Closely related is the daylight opening, which is the maximum vertical space between the platens. Ensure this opening is large enough to accommodate your thickest mold or sample assembly.

Benchtop or Floor-Standing Model?

This choice is a function of both available space and required force. Benchtop presses are compact and ideal for smaller labs and lower-force applications, typically under 30 tons.

Floor-standing presses are required for high-force applications. They are larger and heavier but provide the robust frame necessary to safely generate pressures of 50 to 100+ tons.

Evaluating the Control System and Automation

The interface of the press determines its ease of use, repeatability, and data collection capabilities.

Manual vs. Programmable Control

Manual presses are simple, cost-effective, and durable. They are perfectly suited for applications where the operator can control the process and slight variations are acceptable.

Programmable presses use a digital controller to automate cycles. You can program specific pressure ramps, temperature setpoints, and hold times, ensuring every run is identical. This is critical for research and quality control.

The Value of Computer Control and Data Logging

For the most demanding applications, look for full computer control. These systems allow you to design complex multi-step recipes on a PC, monitor the process in real-time, and automatically log all data.

This level of automation is essential for process development, validation, and generating reports for publication or regulatory compliance.

Understanding the Trade-offs and Practical Realities

Purchasing a lab press involves balancing capability with cost and long-term usability. Acknowledging these trade-offs leads to a smarter investment.

The Cost of Overspecification

It can be tempting to buy a press that exceeds your needs "just in case." However, a 100-ton press is significantly more expensive, larger, and more complex to operate than a 25-ton model.

Precisely defining your application's upper limits on force and temperature prevents you from paying for capability you will never use.

Maintenance and Consumables

Consider the long-term cost of ownership. Ask about the availability and cost of spare parts, especially for heating elements and hydraulic components.

If you are performing pellet pressing, factor in the cost and durability of the die sets, which are critical consumables for the process.

Safety as a Priority

Ensure any press you consider has essential safety features. This includes a physical safety guard around the pressing area, emergency stop buttons, and automatic shutoffs for over-temperature or over-pressure conditions. Safety should never be an optional feature.

Making the Right Choice for Your Goal

Select your press by matching its capabilities directly to the primary goal of your work.

If your primary focus is routine sample prep (e.g., XRF pellets): Prioritize a simple manual or semi-automatic press with the appropriate force and die set for consistent, straightforward operation.
If your primary focus is materials R&D (e.g., polymers, composites): Invest in a press with precise, programmable control over temperature ramps, pressure, and hold times to ensure process repeatability.
If your primary focus is high-throughput quality control: A fully automated press with recipe storage and data logging capabilities is essential for maintaining process integrity and traceability.

By thoroughly defining your application's requirements first, you ensure your lab press becomes a reliable and powerful instrument for your work.

Summary Table:

Key Consideration	Description
Force (tons)	Determines pressure for applications like pellet prep or polymer molding.
Temperature Range	Max temperature needed for processes like curing composites.
Control System	Manual for simplicity or programmable for repeatability and data logging.
Platen Size	Must accommodate sample dimensions and daylight opening.
Model Type	Benchtop for space-saving or floor-standing for high-force needs.
Safety Features	Includes guards, emergency stops, and automatic shutoffs.
