In Cold Isostatic Pressing (CIP), wet bag technology is used for its exceptional flexibility. It is the go-to method for producing components with complex geometries, manufacturing multiple different-shaped parts in a single cycle, and forming very large products that are impractical for other pressing techniques.
The core decision to use wet bag CIP is a strategic trade-off. You are choosing unparalleled shape and size flexibility at the cost of slower production speeds and a less automated process compared to its dry bag alternative.
The Core Principle of Wet Bag CIP
How the Process Works

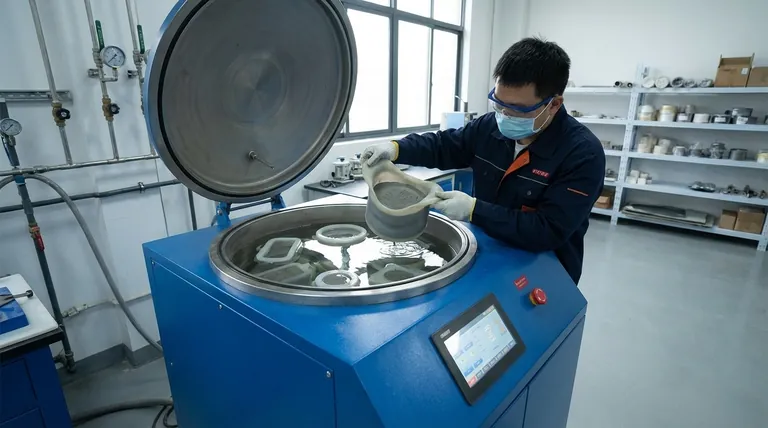

In wet bag CIP, a powder material is sealed inside a flexible mold, often called a "bag." This entire sealed mold is then submerged in a fluid within a high-pressure vessel.
The vessel is pressurized, typically at room temperature, causing the fluid to exert uniform, isostatic pressure on the mold from all directions. This compacts the powder into a solid "green" part (an unfired, pre-sintered state).
Key Outcome: Uniform Density
Because pressure is applied equally from every angle, the resulting component has a highly uniform green density. This consistency is critical for preventing defects, shrinkage, and warping during the subsequent sintering (firing) stage.
Primary Applications of Wet Bag Technology
Manufacturing Complex and Mixed Shapes
The primary strength of wet bag CIP is its versatility. You can place multiple, differently shaped molds into the pressure vessel in a single run. This makes it ideal for producing mixed-shape batches without retooling. It is particularly effective for parts with intricate, non-symmetrical, or "waxless" designs.
Prototyping and Small-to-Medium Batches
The cycle time for a wet bag process is relatively long, ranging from 5 to 30 minutes. This slower pace, combined with the manual handling of molds, makes it well-suited for research and development, prototyping, and small-to-medium quantity production runs where speed is not the primary driver.
Forming Large-Scale Components
Wet bag CIP systems can be built with very large pressure vessels, with diameters ranging up to 2000mm (2 meters). This capability makes it the preferred method for producing large billets, tubes, and other massive components used in industries like aerospace and defense.
Understanding the Trade-offs: Wet Bag vs. Dry Bag
To fully grasp the role of wet bag CIP, it is essential to compare it with its main alternative, dry bag CIP.
The Speed and Volume Dilemma
Wet Bag: With cycle times of 5-30 minutes, it is inherently slower and more labor-intensive, limiting its suitability for high-volume mass production.
Dry Bag: This process is significantly faster, with typical cycle times around 1 minute. It is designed for efficiency and is the clear choice for automated mass production of a single, consistent part shape.
The Flexibility Factor
Wet Bag: Its defining feature is flexibility. You can press virtually any shape that can be put into a mold, and you can mix shapes within a single cycle.
Dry Bag: The flexible membrane is integrated into the pressure vessel, and the mold is fixed. This design limits it to a single part shape per machine setup, sacrificing versatility for speed and automation.
Contamination and Cleanliness
Wet Bag: The process involves submerging the mold directly into the pressure fluid. This creates a risk of fluid contamination and requires cleaning of the molds and vessel between runs.
Dry Bag: The pressure fluid is completely isolated from the powder by the built-in membrane. This results in a much cleaner process, reduces the risk of contamination, and simplifies operation.
Post-Processing Requirements
Parts formed using the wet bag method may require additional machining after pressing to achieve their final dimensions and surface finish. The uniformity of the process, however, provides a high-quality starting point.
Making the Right Choice for Your Goal
Your choice between wet and dry bag CIP depends entirely on your specific manufacturing objectives.
- If your primary focus is prototyping or producing diverse, complex parts: Wet bag technology is the superior choice for its unmatched shape and size flexibility.
- If your primary focus is high-volume, automated mass production of a single part: Dry bag technology provides the speed, cleanliness, and efficiency required for cost-effective manufacturing at scale.
- If your primary focus is creating very large components: Wet bag CIP is often the only viable isostatic pressing method due to its large vessel capabilities.
Ultimately, selecting the right process requires aligning your production needs with the fundamental strengths of each technology.
Summary Table:
| Application | Key Features | Typical Use Cases |
|---|---|---|
| Complex and Mixed Shapes | Flexible molds, uniform density | Prototyping, intricate designs, mixed batches |
| Prototyping and Small Batches | Manual handling, 5-30 min cycle times | R&D, low-volume production |
| Large-Scale Components | Vessels up to 2000mm diameter | Aerospace, defense, large billets and tubes |
Need expert guidance on choosing the right lab press for your specific needs? KINTEK specializes in lab press machines, including automatic lab presses, isostatic presses, and heated lab presses, designed to serve your laboratory's unique requirements. Whether you're prototyping complex shapes or producing large components, our solutions deliver precision and efficiency. Contact us today to discuss how we can enhance your manufacturing process and achieve superior results!

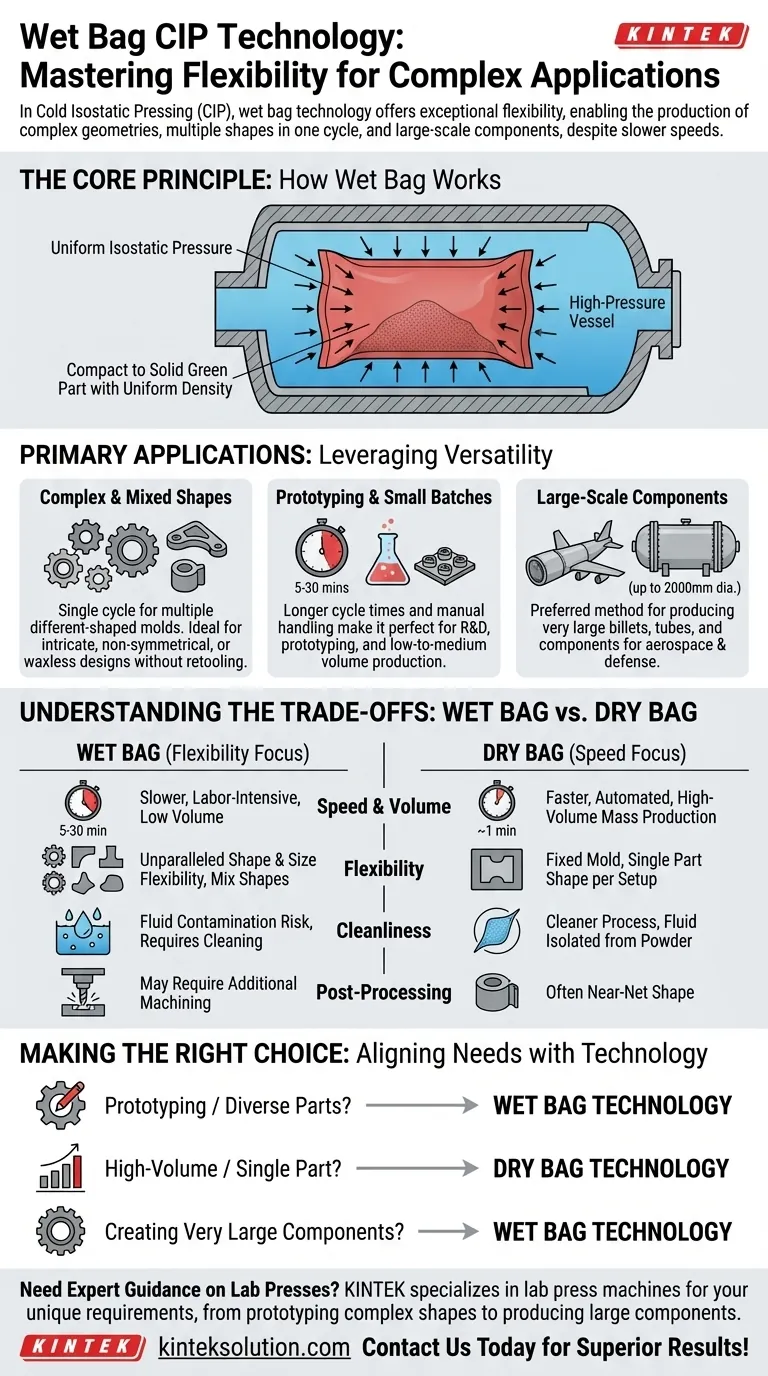

Visual Guide
