In short, pressing a powdered sample into a pellet is a critical step that fundamentally improves the accuracy, sensitivity, and reproducibility of X-ray Fluorescence (XRF) analysis. This process transforms an inconsistent powder into a solid disc with a uniform, flat surface, which is essential for obtaining reliable quantitative data.
The quality of your XRF data is dictated by the quality of your sample surface. Pressing a pellet is the most effective and common method for creating a near-ideal surface, bridging the gap between a rough estimate and a precise, quantifiable measurement.
The Physics of XRF: Why Sample Surface is Everything
XRF is a surface-sensitive analytical technique. The primary X-rays from the instrument only penetrate a shallow depth into the sample, and the secondary (fluorescent) X-rays that are measured must escape from that same surface. Any inconsistency on this surface directly introduces error.
The Problem with Unprepared Samples
Analyzing a loose powder is prone to significant errors. The particles create an uneven surface with void spaces between them, leading to inconsistent density.
This causes uncontrolled scattering of the X-rays and means the instrument is analyzing a mix of your sample and empty space. The result is a weaker signal and data that cannot be reliably reproduced.
The Principle of "Infinite Thickness"
For accurate analysis, the sample must be "infinitely thick" from the perspective of the X-ray beam. This means it must be thick enough that a further increase in thickness would not change the intensity of the measured signal.
If a sample is too thin or has low density (like a loose powder), primary X-rays can pass all the way through it. This violates a fundamental assumption of most quantitative XRF models and invalidates the results. Pressing a pellet ensures sufficient density and thickness.
How Pressed Pellets Deliver Superior Results
Using a hydraulic press to compact a powder into a solid pellet systematically solves the problems associated with unprepared samples. This is why it has become a standard method for high-quality XRF.
Achieving Uniform Density and Homogeneity
Pressing the powder eliminates voids and compacts the particles into a solid with a uniform density. This ensures that the X-ray beam interacts consistently with the sample material across the entire analysis area.
This process drastically reduces errors caused by particle segregation or uneven distribution, making the analysis far more representative of the bulk sample.
Maximizing Signal Intensity and Sensitivity
By creating a dense, solid surface, you maximize the amount of sample material within the analysis volume. This minimizes unwanted signal dilution and scattering caused by air gaps.
The result is a significantly higher signal intensity for nearly all elements. This boost in signal is especially critical for detecting and quantifying trace elements at the parts-per-million (ppm) level.
Ensuring Analytical Reproducibility
A flat, stable, and homogeneous pellet surface guarantees that repeated measurements—whether on the same pellet or on different pellets made from the same material—will yield consistent results. This reproducibility is the cornerstone of any reliable quality control or research program.
Understanding the Trade-offs: Pellets vs. Alternatives
While pressed pellets are a powerful tool, they exist on a spectrum of sample preparation methods. Choosing the right one depends on your analytical goals and resource constraints.
Loose Powders: For Screening Only
Analyzing loose powder is fast and requires no equipment, but the results should be considered qualitative at best. It is only suitable for a rough screening to see which elements are present, not for determining how much.
Fused Beads: The Ultimate Standard for Accuracy
The "gold standard" for accuracy involves fusing the sample with a flux (like a lithium borate salt) at high temperature to create a perfectly homogeneous glass disc. This process eliminates all particle size and mineralogical effects.
However, fusion requires expensive equipment (fusion machines), consumes more energy and time, and involves higher operational costs for fluxes and platinum crucibles.
The Case for Pressed Pellets
Pressed pellets represent the ideal balance of performance, speed, and cost for the vast majority of XRF applications. They are quick and inexpensive to prepare and deliver the high-quality, quantitative results needed for most industrial and research purposes.
Making the Right Choice for Your Goal
Selecting your sample preparation method requires aligning your technique with your analytical objective.
- If your primary focus is rapid, qualitative screening: Analyzing loose powder may be sufficient to identify major elements, but do not trust the quantitative values.
- If your primary focus is reliable, cost-effective quantitative analysis: The pressed pellet method is the clear choice, offering excellent accuracy and reproducibility for a minimal investment of time and cost.
- If your primary focus is the highest possible accuracy for complex materials: Fused beads are necessary to eliminate all matrix effects and achieve reference-grade data, though at a significantly higher cost.
Ultimately, mastering the pressed pellet technique is a fundamental skill that empowers you to generate trustworthy and precise analytical data with XRF.
Summary Table:
| Benefit | Description |
|---|---|
| Uniform Density | Eliminates voids and ensures consistent X-ray interaction for accurate analysis. |
| Enhanced Signal Intensity | Maximizes sample material in the analysis volume, improving sensitivity for trace elements. |
| Analytical Reproducibility | Provides flat, stable surfaces for reliable and repeatable measurements. |
| Cost-Effectiveness | Balances performance with low preparation time and cost compared to fused beads. |
Upgrade your XRF analysis with KINTEK's reliable lab press machines! Our automatic lab presses, isostatic presses, and heated lab presses are designed to create perfect pellets for precise, reproducible results in your laboratory. Don't let sample inconsistencies hold you back—contact us today to discuss how our equipment can enhance your analytical accuracy and efficiency!

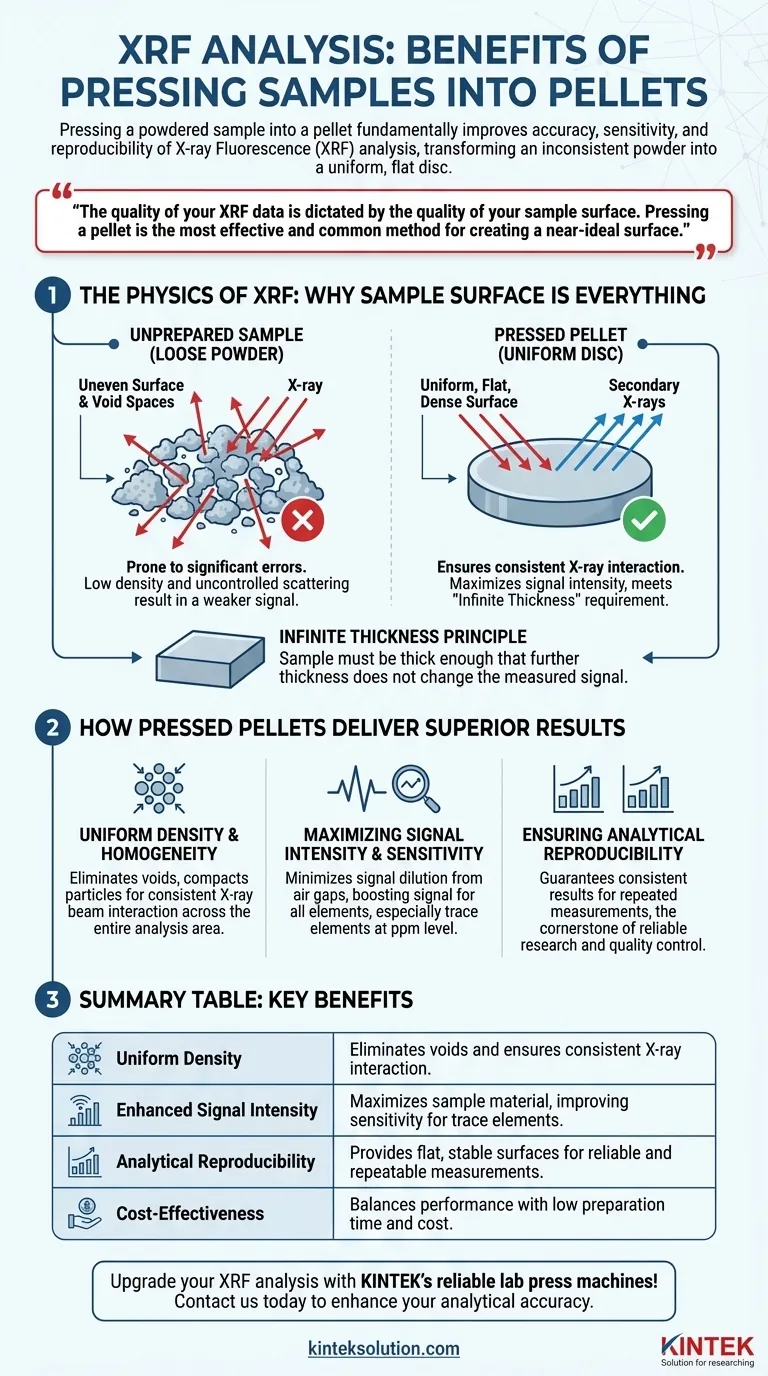

Visual Guide
