In laboratory settings, hydraulic presses are equipped with several critical safety features designed to protect the operator, the sample, and the equipment itself from the immense forces being generated. The most fundamental of these are pressure relief valves to prevent overload, physical safety shields with electronic interlocks, and clearly marked emergency stop controls.
A hydraulic press's safety is not derived from a single feature, but from an integrated system. This system combines automated hardware safeguards, which act as a final line of defense, with monitoring tools that empower the operator to maintain control throughout the pressing process.
Core Hardware Safety Mechanisms
The primary safety features are physical components engineered directly into the press's hydraulic and structural systems. They are designed to function passively or automatically to prevent catastrophic failure.
Pressure Relief Valves: The Overload Guardian
A pressure relief valve is arguably the most critical safety component in any hydraulic system. It is a mechanical valve preset to a specific maximum pressure.
If the operator attempts to exceed this limit, the valve automatically opens, diverting hydraulic fluid back to the reservoir. This prevents system pressure from reaching a level that could rupture hoses, damage the cylinder, or destroy the press frame.
Safety Shields and Interlocks: Protecting the Operator
Modern laboratory presses are typically fitted with a strong, transparent polycarbonate safety shield around the pressing area. This guard physically contains any potential sample or tooling fragments in the event of a failure.
This shield is connected to an interlocking system. A sensor detects whether the shield is closed. The press will not operate if the shield is open, ensuring the operator's hands and body are clear of the compression zone before any force is applied.
Emergency Stop (E-Stop) Buttons: Immediate Cessation
All powered hydraulic presses are equipped with a large, easily accessible emergency stop button, typically red. When pressed, the E-stop immediately cuts all power to the motor and hydraulic pump, halting all movement of the press ram. This allows for an instant stop in case of an unexpected event.
Robust Frame Construction: Containing the Force
The inherent design of the press is itself a safety feature. The frame is engineered from rigid, high-strength steel to withstand forces significantly greater than its stated maximum capacity. This structural integrity ensures the press can contain the immense energy it generates without buckling or failing.
Operational Safety and Monitoring
Beyond passive hardware, other features are designed to give the operator direct feedback and control, which are essential for safe and precise operation.
Calibrated Pressure Gauges: Visualizing the Force
A clear, well-maintained pressure gauge is an essential monitoring tool. It provides a real-time visual display of the force being applied to the sample.
This allows the operator to increase pressure gradually and stay within the known limits of their sample and, more importantly, their tooling (such as a pellet die set).
Adjustable Pressure Control: Setting Safe Limits
The ability to precisely control and adjust the pressure is a key advantage of hydraulic presses that doubles as a safety feature.
Before starting work, an operator can set the maximum desired pressure. This helps prevent accidental overloading of delicate or pressure-sensitive tooling, which is a common cause of failure and potential injury in a laboratory setting.
Common Pitfalls and Risks to Avoid
Understanding the safety features is only half the battle. Acknowledging their limitations and the operator's role is critical for a truly safe environment.
The Misconception of "Automatic" Safety
Safety features are a backstop, not a substitute for proper training, procedure, and attention. An operator must never become complacent or rely solely on interlocks to prevent accidents. Always treat the press as the powerful instrument it is.
The Risk of Tooling Failure
The press's safety systems are designed to protect the press itself from over-pressurization. They do not, however, know the pressure limit of the pellet die or other tooling you are using. Applying the press's full force to a die rated for a much lower force is a primary cause of catastrophic tooling failure and is a significant safety hazard.
Neglecting Personal Protective Equipment (PPE)
Even with safety shields in place, wearing appropriate PPE is non-negotiable. This always includes safety glasses or goggles. When testing materials to their breaking point, the risk of high-velocity fragmentation makes robust face shields essential.
Making the Right Choice for Safe Operation
By combining an understanding of the press's features with good laboratory practice, you can ensure a safe and productive process.
- If your primary focus is routine sample preparation (e.g., KBr pellets): Always verify the maximum pressure rating of your die set and use the press's gauge to stay well below that limit.
- If your primary focus is materials testing to failure: Ensure your press has a fully interlocked, impact-resistant safety shield and make robust PPE, including a full face shield, mandatory for all operators.
- If you are purchasing or specifying a new press: Prioritize models with fully interlocked polycarbonate guarding and a clear, reliable pressure gauge as non-negotiable requirements.
By understanding these integrated safety systems, you can leverage the power of a hydraulic press with the confidence and control required for precise scientific work.

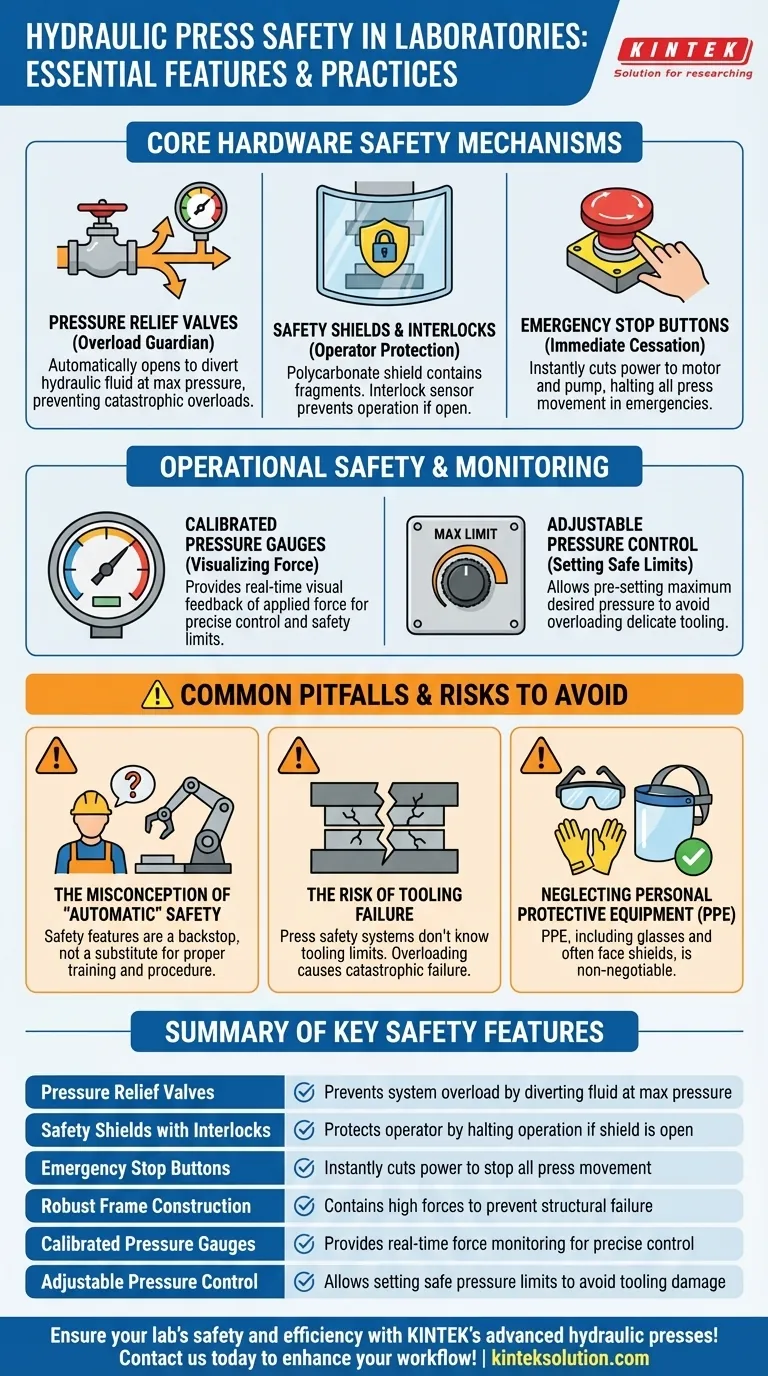

Summary Table:
| Safety Feature | Purpose |
|---|---|
| Pressure Relief Valves | Prevents system overload by diverting fluid at max pressure |
| Safety Shields with Interlocks | Protects operator by halting operation if shield is open |
| Emergency Stop Buttons | Instantly cuts power to stop all press movement |
| Robust Frame Construction | Contains high forces to prevent structural failure |
| Calibrated Pressure Gauges | Provides real-time force monitoring for precise control |
| Adjustable Pressure Control | Allows setting safe pressure limits to avoid tooling damage |
