In a laboratory setting, a hydraulic press is primarily used for three key functions. These are precise sample preparation for analytical measurement, the mechanical testing of material properties, and the forming or compaction of substances into a desired shape and density. Its value comes from its ability to exert immense, yet highly controllable, force in a compact and efficient manner.
The core value of a laboratory hydraulic press is not just brute force, but its capacity for precision and repeatability. It transforms inconsistent materials into uniform samples suitable for high-sensitivity analysis and provides the controlled stress needed to accurately test a material's fundamental limits.
The Core Functions: Preparation and Testing
A laboratory press serves as a foundational tool in materials science, chemistry, and engineering. Its applications can be broadly grouped into preparing samples for other instruments or directly testing the samples themselves.
Sample Preparation for Spectroscopic Analysis
Many analytical techniques require samples to have a specific, uniform consistency to produce accurate results. A hydraulic press is essential for this.
For example, in Infrared (IR) spectroscopy, a powdered sample is often mixed with potassium bromide (KBr) and pressed into a thin, transparent pellet. This process minimizes light scattering and creates a consistent path length for the infrared beam to travel through.
Similarly, for X-Ray Fluorescence (XRF) spectroscopy, samples are briquetted or pressed into dense pucks. This creates a smooth, flat, and homogenous surface, which is critical for obtaining repeatable and accurate elemental composition data.
Material Strength and Compression Testing
The most intuitive use of a press is to determine how a material behaves under load. By applying a controlled, gradually increasing force, a hydraulic press can test a material's compressive strength and durability.
Researchers can precisely measure the force at which a sample deforms or fractures. This data is vital for engineering new materials, quality control in manufacturing, and understanding the structural integrity of components.
Compaction, Forming, and Extraction
Beyond testing and analysis, a press is used to physically alter substances. This includes compacting powders into uniform pills or tablets for pharmaceutical research or creating specific shapes from polymers or ceramics.
When used with heated platens, a press can form thin polymer films for transmission analysis or other tests. It can also be used for extraction, applying pressure to biological or botanical samples to squeeze out oils, fluids, or other compounds for further study.
Why a Hydraulic Press is the Right Tool
While other methods can crush or heat materials, the hydraulic press offers a unique combination of benefits that make it indispensable for scientific applications.
Unmatched Force Control and Precision
The defining feature of a laboratory press is its precision. The hydraulic system allows an operator to apply and hold a specific force with a very high degree of accuracy. This control is non-negotiable for experiments that must be repeatable.
Efficiency and Force Multiplication
Hydraulic systems are exceptionally efficient at multiplying force. A small amount of effort applied to the handle or pump generates an immense, evenly distributed pressure on the sample. This allows for benchtop units to achieve forces that would otherwise require much larger, more complex machinery.
Versatility Across Disciplines
The same press can be used to prepare a KBr pellet for a chemist, test a concrete cylinder for an engineer, and press a polymer film for a materials scientist. By simply changing the dies and accessories, the press becomes a multi-purpose tool applicable to a vast range of laboratory tasks.
Understanding the Trade-offs and Considerations
While highly effective, a hydraulic press requires proper understanding and operation to be used safely and effectively.
The Need for Proper Dies and Tooling
A press is only as good as the tooling used with it. Preparing a KBr pellet requires a specific pellet die set, while compression testing requires hardened steel plates. These accessories are critical for success and represent an additional consideration in terms of cost and maintenance.
Maintenance and Fluid Integrity
Though generally low-maintenance, a hydraulic press relies on hydraulic fluid to function. This fluid must be kept clean and at the proper level. Contamination can damage the pump and seals, leading to a loss of pressure and inaccurate force application.
Safety Protocols are Non-Negotiable
A hydraulic press generates forces capable of causing serious injury. Modern presses include safety shields and pressure relief valves, but operator training remains paramount. Users must understand the equipment's limits and always use appropriate personal protective equipment, such as safety glasses.
Applying This to Your Goal
To leverage a hydraulic press effectively, align its capabilities with your primary objective.
- If your primary focus is chemical analysis (IR/XRF): Use the press to create homogenous, consistent pellets or briquettes to ensure your spectroscopic data is accurate and repeatable.
- If your primary focus is materials science: Rely on the press for precise compressive strength testing to characterize material performance and failure points.
- If your primary focus is sample processing or formulation: Utilize the press to achieve specific densities in compacted powders or to form materials like thin films for further testing.
Understanding that a hydraulic press is a tool for precision, not just pressure, is the key to unlocking its full potential in the laboratory.

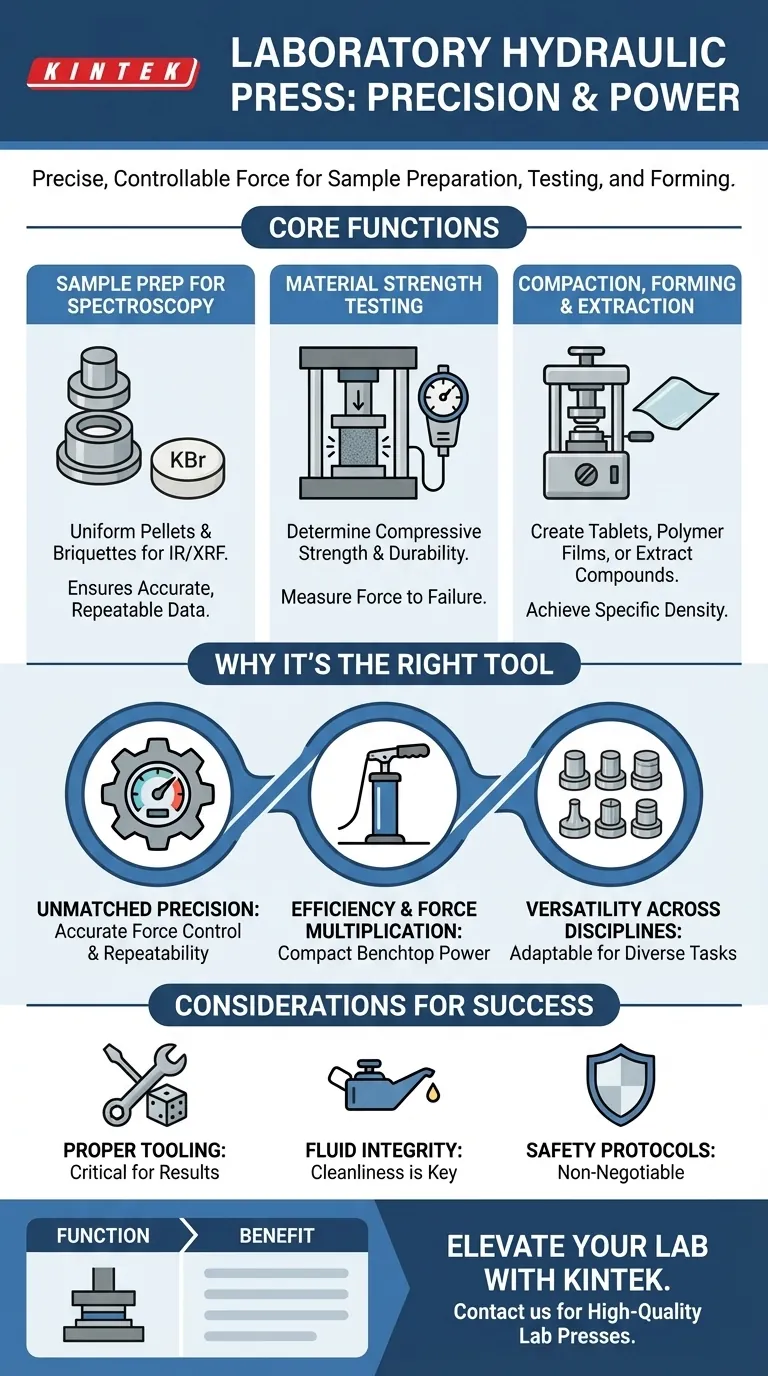

Summary Table:
| Function | Key Applications | Benefits |
|---|---|---|
| Sample Preparation | IR/XRF spectroscopy pellets, uniform briquettes | Ensures accurate, repeatable analytical data |
| Material Testing | Compressive strength, durability assessments | Provides precise force control for material characterization |
| Compaction and Forming | Pharmaceutical tablets, polymer films, extraction | Achieves desired density and shape with high efficiency |
