At its core, a KBr press serves one critical function: preparing solid samples for analysis via Fourier Transform Infrared (FTIR) spectroscopy. This technique is essential for identifying a substance's molecular structure, verifying its purity in quality control processes, and advancing the study of new compounds in research and development. The press creates a transparent pellet that allows infrared light to pass through an otherwise opaque solid material.
The central challenge in the infrared analysis of solids is that they are typically opaque. The KBr press solves this by uniformly dispersing a minute amount of sample into a potassium bromide (KBr) matrix, which is transparent to IR light, effectively making the sample "visible" to the spectrometer.
The Fundamental Problem: Analyzing Solid Samples
FTIR spectroscopy works by passing a beam of infrared light through a sample and measuring which wavelengths are absorbed. This absorption pattern acts as a unique molecular "fingerprint." However, this process requires the light to pass through the material.
Why Solids Are a Challenge
Most solid samples, especially in powder form, are opaque. They scatter or block the infrared beam, preventing any meaningful measurement of absorption. You cannot simply place a pile of powder in a spectrometer and get a clean result.
The KBr Pellet Solution
The KBr pellet method overcomes this obstacle. Potassium bromide (KBr) is chosen because it is transparent to mid-infrared radiation and is chemically inert, meaning it won't react with the sample.
By grinding a tiny amount of the sample (1-2 mg) with a larger amount of dry KBr powder (100-200 mg) and compressing it under immense pressure, you create a thin, transparent disc. The sample molecules are now suspended evenly within an IR-transparent medium, much like a biological specimen is held in a clear glass slide for a microscope.
How the KBr Press Method Works
The process transforms a mixture of powders into a glass-like pellet suitable for analysis. This is achieved through a combination of specialized equipment and a precise workflow.

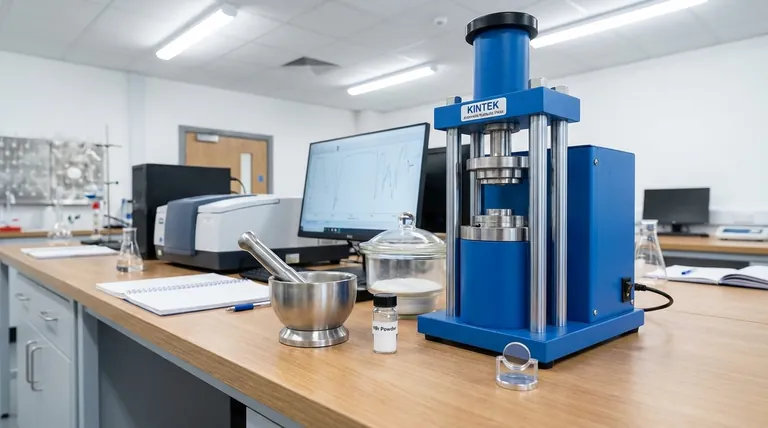

Key Components of the System
The setup consists of a few essential parts:
- Die Set: A hardened steel cylinder and two polished plungers (anvils) that contain the powder.
- Hydraulic Press: A manual or automated press capable of applying 8 to 10 tons of force to the die set.
- Base Plate: Provides a stable foundation to ensure pressure is distributed evenly during compression.
The Step-by-Step Preparation Process
- Sample Grinding and Mixing: A small, precisely weighed amount of the solid sample is mixed with spectroscopy-grade KBr powder. The mixture is ground vigorously with a mortar and pestle to reduce particle size and ensure perfect homogeneity.
- Pellet Compression: The powder mixture is loaded into the die assembly. The hydraulic press is then used to apply high pressure, causing the KBr particles to fuse into a solid, transparent pellet.
- Spectroscopic Analysis: The finished pellet is carefully removed from the die and placed in the spectrometer's sample holder. The instrument can now pass its IR beam through the pellet to acquire a clean, clear spectrum of the embedded sample.
Understanding the Critical Trade-offs and Pitfalls
While powerful, the KBr method's success is highly dependent on technique. Failure to control for specific factors will lead to poor-quality data and incorrect conclusions.
The Primary Enemy: Moisture
The single greatest challenge is water. KBr is highly hygroscopic, meaning it readily absorbs moisture from the atmosphere. Water (H₂O) has very strong, broad absorption bands in the infrared spectrum that can easily overwhelm the signal from your sample.
Consequences of Poor Technique
If moisture contaminates the KBr or the sample, the resulting pellet will often appear cloudy. The final spectrum will show large water peaks, potentially obscuring the critical fingerprint region used for identification and making your results unusable.
Best Practices for High-Quality Spectra
- Use Spectroscopy-Grade KBr: Always start with KBr powder specifically designated for IR analysis and keep it stored in a desiccator or drying oven.
- Heat Your Tools: Gently warming the die set and mortar and pestle before use helps drive off any adsorbed surface moisture.
- Work Efficiently: Minimize the time the KBr powder is exposed to the open air during grinding and loading to reduce moisture absorption.
- Apply Sufficient Pressure: Using the correct pressure (typically 8-10 tons) is essential for creating a fully transparent, non-scattering pellet.
Making the Right Choice for Your Goal
The KBr press is a versatile tool, but your specific objective should guide your technique.
- If your primary focus is routine quality control: Emphasize creating a highly standardized and repeatable protocol to ensure consistency between batches.
- If your primary focus is identifying an unknown compound: Prioritize using the highest-purity KBr and maintaining an impeccably clean die set to avoid introducing contaminating spectral artifacts.
- If your primary focus is quantitative analysis: Recognize that this method requires extreme precision in weighing the sample and KBr to ensure the path length and concentration are known and repeatable.
By mastering the KBr press technique, you can reliably render solid samples transparent for clear and accurate molecular analysis.
Summary Table:
| Application | Key Benefit |
|---|---|
| Quality Control | Verifies substance purity with consistent, repeatable results |
| Compound Identification | Enables molecular fingerprinting of unknown substances |
| Research & Development | Supports study of new compounds through transparent sample preparation |
Enhance your laboratory's spectroscopic capabilities with KINTEK's reliable lab press machines! Whether you're conducting quality control, identifying compounds, or advancing research, our automatic lab presses, isostatic presses, and heated lab presses ensure precise, moisture-resistant sample preparation for accurate FTIR analysis. Contact us today to discuss how KINTEK can support your laboratory needs and boost your efficiency!

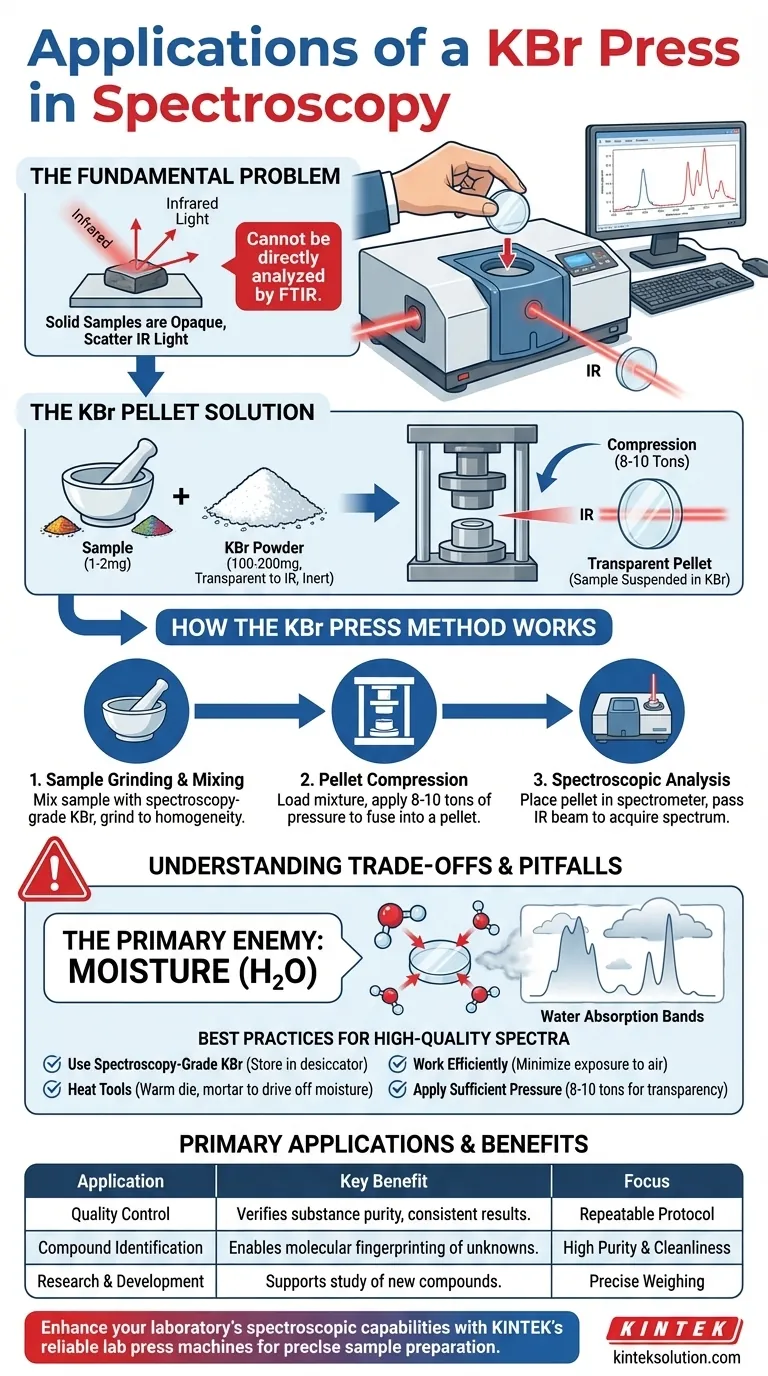

Visual Guide
