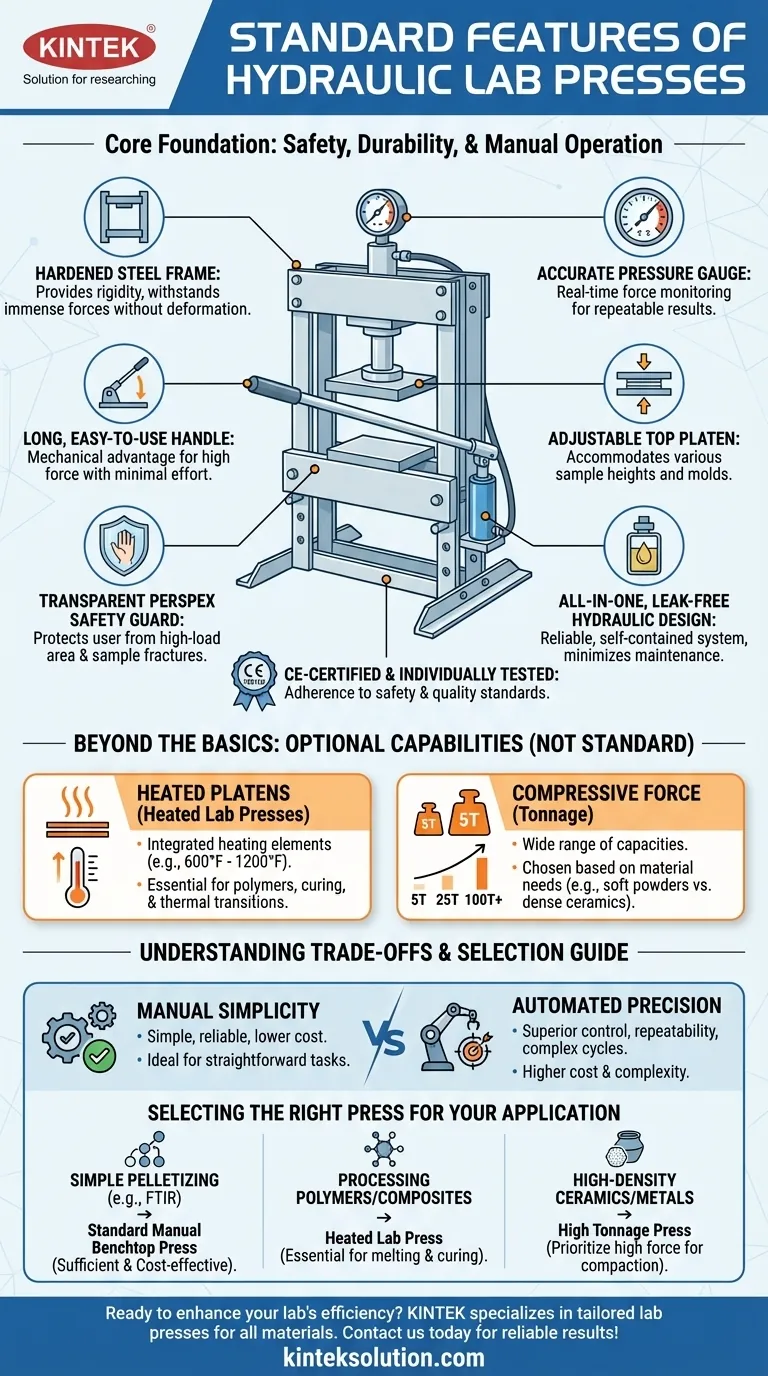

At their core, all standard hydraulic lab presses are built with a consistent set of features focused on safety, durability, and manual operation. These include a hardened steel frame, an adjustable top pressing surface for different sample heights, an accurate pressure gauge to monitor force, a long handle for mechanical advantage, and a transparent Perspex safety guard to protect the user during operation. The entire system is typically an all-in-one, leak-free hydraulic unit designed for reliability.
While every hydraulic lab press includes fundamental components for safe manual compression, the truly defining capabilities—such as heating and maximum force—are specialized options. Understanding this distinction is critical to selecting the right tool for your specific material processing needs.
Deconstructing the Standard Features
Every hydraulic lab press, regardless of its ultimate capacity, is built upon a foundation of core components. These features ensure basic functionality, safety, and longevity.
The Core Mechanical Structure
The physical integrity of the press is paramount. It is achieved through hardened steel construction, which provides the rigidity needed to withstand immense forces without deforming.
This is complemented by an all-in-one, leak-free hydraulic design. This self-contained system minimizes maintenance and ensures that the hydraulic pressure is reliably delivered to the sample.
Finally, a long, easy-to-use handle provides the necessary mechanical advantage, allowing an operator to generate tons of force with minimal physical effort.
Precision and Control
Repeatable sample preparation requires precise control. The adjustable top pressing surface (or platen) allows you to accommodate samples and molds of various heights, ensuring a proper fit before pressure is applied.
An accurate pressure gauge is the most critical feedback mechanism on a standard press. It displays the compressive force being applied in real-time, allowing you to create samples under known and repeatable conditions.
The Non-Negotiable Safety System
Operator safety is the primary concern. A tough Perspex safety guard is a standard and essential feature that shields the user from the high-load pressing area, containing any potential sample fractures. It is crucial that this guard is always closed during operation.
Furthermore, reputable presses are manufactured in CE-certified facilities and are individually tested. This indicates adherence to established safety and quality standards.
Beyond the Basics: Defining Optional Capabilities
The most significant differences between lab presses are not in the standard features, but in the specialized capabilities required for advanced applications. These are choices you make based on your material and research goals.
Heated Platens: A Critical Distinction
Heating is not a standard feature. Presses with this capability are specifically called heated lab presses. They incorporate heating elements into the platens to process materials that require a combination of heat and pressure.
These systems are essential for work with polymers, composites, and other materials that need to melt, cure, or undergo thermal transitions during compression. They feature advanced temperature controllers for precision and uniform heat distribution, with capabilities often ranging from 600°F to 1200°F.
Compressive Force: Matching Power to Material
The maximum force, or tonnage, is a primary specification, not a standard feature. Presses are available in a wide range of capacities, such as 5, 15, 25, and 40 tons, with some industrial models exceeding 100 tons.
Your choice of tonnage depends entirely on the material you are pressing. Softer powders may require less force, while dense ceramics or metallurgical samples demand much higher pressures to achieve proper consolidation.
Understanding the Trade-offs
Choosing a press involves balancing capability, complexity, and cost. Understanding the inherent trade-offs is key to making an informed decision.
Manual Simplicity vs. Automated Precision
A standard manual press offers simplicity, reliability, and lower cost. It is ideal for straightforward applications where an operator can manage the process.
In contrast, heated and automated presses offer superior precision, repeatability, and control over complex thermal cycles. This comes at the cost of increased complexity and expense, but is non-negotiable for many advanced material science applications.
The Cost of Specialization
Adding features like high tonnage or integrated heating significantly increases the price and footprint of the machine. A basic 15-ton manual benchtop press is a fundamentally different class of instrument than a 40-ton automated floor press with heated platens.
Selecting the Right Press for Your Application
Your final choice should be driven by the demands of your specific scientific work.
- If your primary focus is simple pelletizing for analysis (e.g., FTIR): A standard manual benchtop press is sufficient and highly cost-effective.
- If your primary focus is processing polymers or composites: A heated lab press with precise temperature control is essential for melting and curing your samples.
- If your primary focus is creating high-density ceramics or metal powders: You must prioritize a press with a high tonnage rating to achieve the necessary compaction.
Understanding the distinction between standard components and application-specific options is the key to selecting a hydraulic press that perfectly serves your goals.
Summary Table:
| Feature | Description |
|---|---|
| Hardened Steel Frame | Provides rigidity and durability to withstand high forces |
| Adjustable Top Platen | Allows for different sample heights and proper fit |
| Accurate Pressure Gauge | Displays compressive force in real-time for repeatable results |
| Long Handle | Offers mechanical advantage for easy operation |
| Transpers Safety Guard | Protects users from high-load areas during operation |
| All-in-One Hydraulic Design | Ensures leak-free and reliable performance with minimal maintenance |
| CE Certification | Indicates adherence to safety and quality standards |
