What Factors Should Be Considered When Purchasing A Lab Press? Ensure Optimal Performance For Your Lab

Selecting the right lab press requires a systematic evaluation of your specific application needs. The most critical factors to consider are the required force (pressure), operating temperature range, the physical size of your samples (which dictates platen size), and the level of control and automation your process demands. These core specifications will guide your decision and determine the press's suitability for your work.

A lab press is a complete system where force, temperature, and control must work in concert. The central challenge is not simply finding a machine that meets a list of specifications, but selecting one whose integrated capabilities precisely match the requirements of your material and process to ensure accurate, repeatable results.

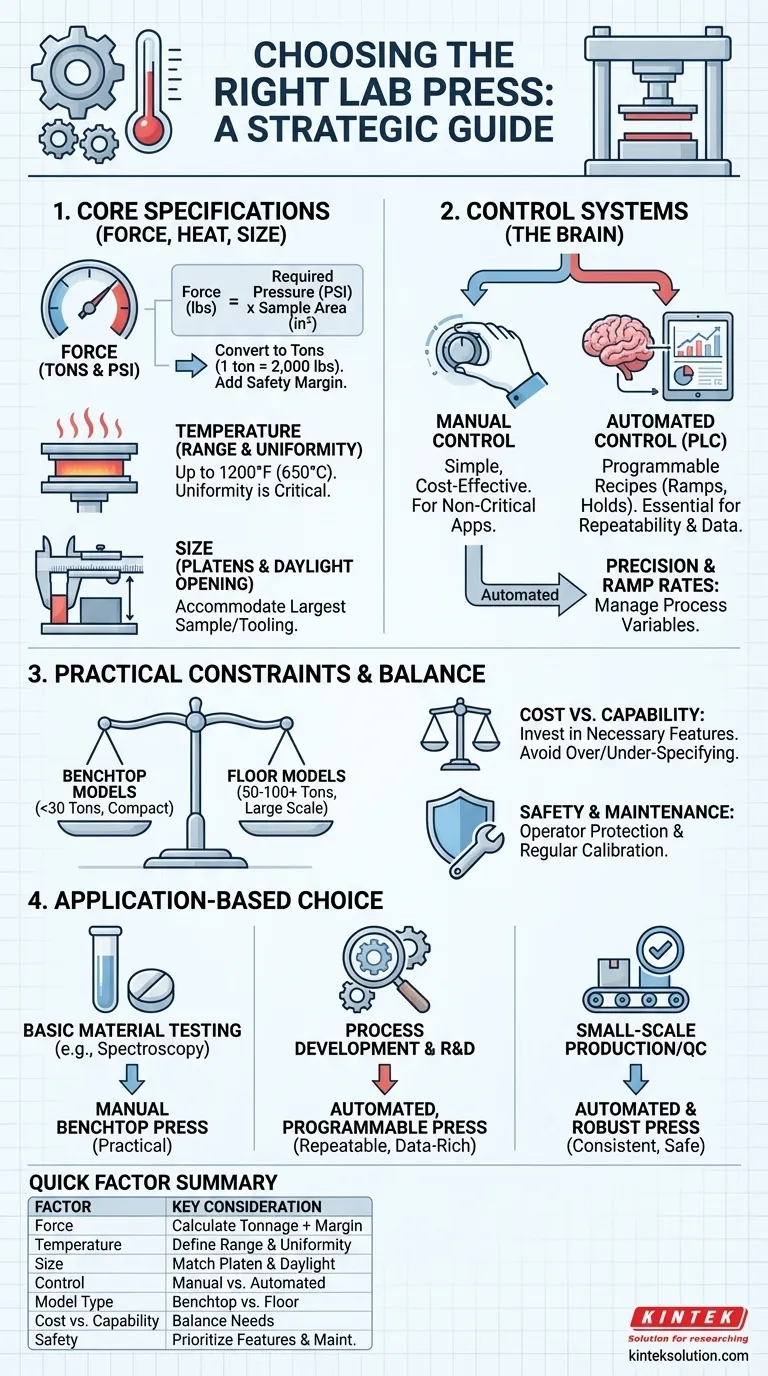

What factors should be considered when purchasing a lab press? Ensure Optimal Performance for Your Lab

Core Technical Specifications: Force, Heat, and Size

The fundamental purpose of a lab press is to apply controlled force and heat to a sample. Getting these primary specifications right is the most important step.

Calculating Your Pressure Requirement (Tons vs. PSI)

A common point of confusion is the difference between the press's total force (tonnage) and the pressure (PSI) applied to your sample. The press is rated in tons of force, but your material process is likely defined in pounds per square inch (PSI).

To find the required tonnage, you must first calculate the total force needed for your largest sample area using this formula: Force (lbs) = Required Pressure (PSI) x Sample Area (in²)

Once you have the force in pounds, convert it to tons (1 ton = 2,000 lbs). Always choose a press with a tonnage rating slightly above your maximum calculated need to provide a safety margin.

Defining Your Temperature Needs (Range and Uniformity)

Your required temperature range is dictated by your material's processing parameters. Common ranges extend from room temperature up to 600°F (315°C) or even 1200°F (650°C) for specialized applications.

However, maximum temperature is only part of the story. Temperature uniformity across the entire platen surface is critical for consistent results, especially with larger samples. A press with poor uniformity can lead to uneven curing or melting.

Sizing Your Platens and Daylight Opening

The platens are the heated plates that contact your sample or mold. Their size must be large enough to fully accommodate your largest sample tooling with a small border.

The daylight opening is the maximum vertical space between the platens when the press is fully open. This dimension is critical, as it limits the height of the mold, tooling, and sample you can fit into the press.

Control Systems: The Brains of the Operation

How you control the force and temperature is just as important as the specifications themselves. The control system determines the press's repeatability, ease of use, and data collection capabilities.

Manual vs. Automated Control

Manual presses are simpler and more cost-effective. The operator physically controls the application of force and manually sets the temperature. These are ideal for simple, non-critical applications or when processes vary significantly.

Automated (computer-controlled) presses use programmable logic controllers (PLCs) to execute multi-step recipes. You can program specific ramp rates, hold times, and pressures, ensuring every cycle is identical. This is essential for R&D, process validation, and quality control where repeatability is paramount.

The Importance of Precision and Ramp Rates

For many advanced materials, the rate at which you apply heat or pressure is a critical process variable. An automated control system allows you to precisely manage these ramp rates.

Similarly, the system's ability to hold a setpoint with minimal deviation (control precision) ensures that sensitive processes remain within their ideal operating window. High precision is a hallmark of a research-grade press.

Understanding the Trade-offs and Physical Constraints

Choosing a lab press involves balancing capabilities with practical limitations like lab space and budget.

Benchtop vs. Floor Models

Benchtop presses are compact units designed to fit on a standard lab bench. They are typically used for smaller samples and lower force requirements, generally under 30 tons.

Floor-standing presses are larger, self-contained units that can accommodate much higher tonnages (often 50-100+ tons) and larger platen sizes. They are the standard for pilot-scale production or testing large components. The choice is primarily driven by your force and sample size needs, with lab space being a secondary constraint.

Evaluating Cost vs. Capability

The cost of a lab press is directly tied to its capabilities. Higher tonnage, higher temperatures, larger platens, and sophisticated computer controls all increase the price.

Avoid the pitfall of either over-specifying a press with features you will never use or under-specifying one that cannot meet your future needs. The goal is to invest in the capabilities that deliver reliable and accurate results for your specific work.

Safety and Maintenance

Modern presses should come with essential safety features, such as safety shields to protect the operator. Regular maintenance and calibration are also critical for ensuring the long-term accuracy and reliability of the instrument, protecting both your investment and your results.

Making the Right Choice for Your Application

Use your primary goal to guide your final decision.

If your primary focus is basic material testing (e.g., pelletizing for spectroscopy, simple molding): A manual benchtop press with sufficient force and a simple temperature controller is often the most practical and cost-effective choice.
If your primary focus is process development and R&D: Prioritize a press with fully programmable computer controls for managing complex temperature and pressure cycles, as data logging and repeatability are essential.
If your primary focus is small-scale production or quality control: Emphasize automation for consistent output, robust safety features for operators, and a design that facilitates easy maintenance.

By systematically matching the press's capabilities to your material and process goals, you ensure a reliable and valuable long-term investment.

Summary Table:

Factor	Key Considerations
Force	Calculate required tonnage from PSI and sample area; choose a press with a safety margin.
Temperature	Define range and ensure uniformity across platens for consistent results.
Size	Match platen size and daylight opening to accommodate your largest samples and tooling.
Control	Decide between manual for simplicity or automated for precision, repeatability, and data logging.
Model Type	Select benchtop for small samples/low force or floor-standing for high tonnage/large components.
Cost vs. Capability	Balance budget with essential features to avoid over- or under-specifying for your needs.
Safety & Maintenance	Prioritize safety features and regular calibration for long-term reliability and operator protection.
