At their core, laboratory presses are defined by three primary features: a hydraulic system to generate force, heated platens to apply precise temperature, and a control system to ensure the process is accurate and repeatable. While simple manual presses provide basic force, more advanced models incorporate digital controls for pressure, temperature ramping, and programmable cycles to meet demanding research and quality control applications.
The specific features of a laboratory press are less important than how they combine to solve a core task. The goal is always to apply a known amount of force and temperature consistently, whether for creating a uniform sample for analysis or testing a material's physical properties.

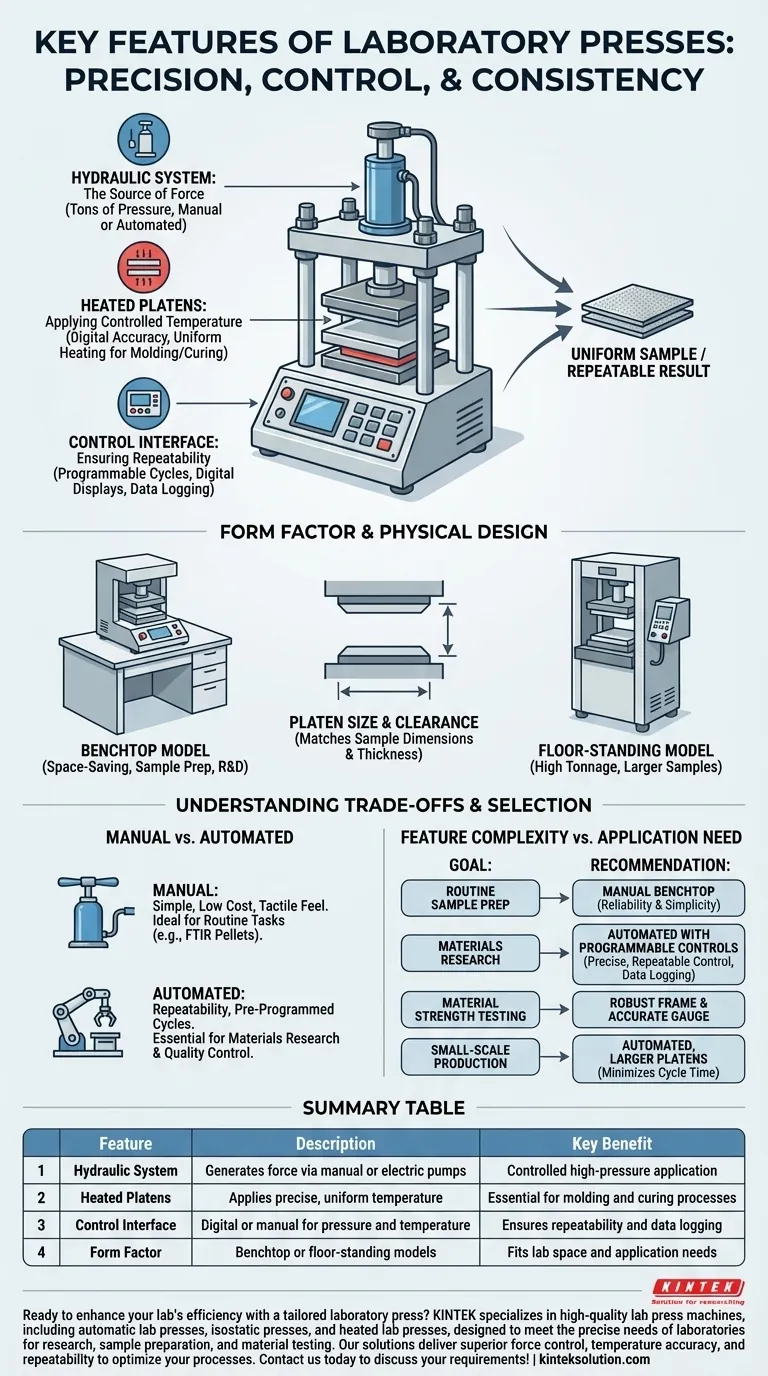

The Core Components: Force, Heat, and Control
A laboratory press is a system where several key components work in concert. Understanding each one's function is critical to appreciating the machine's overall capability.
The Hydraulic System: The Source of Force
The heart of any press is the system that generates force, almost always a precision-engineered hydraulic system. This allows for the controlled application of high pressure, measured in tons.
Manual presses use a hand pump to build hydraulic pressure, offering direct user control. Automated presses use an electric pump, enabling pre-programmed force settings and cycles for superior consistency.
Heated Platens: Applying Controlled Temperature
Many applications, such as polymer molding or curing, require heat. Presses achieve this with integrated heated platens, the flat surfaces that contact the sample.
Modern presses feature digital temperature controllers that provide exceptional accuracy. This ensures that the temperature is not only correct but also uniform across the entire platen surface, which is vital for repeatable results.
The Control Interface: Ensuring Repeatability
The level of control determines the press's sophistication. Basic models may have a simple pressure gauge, while advanced units offer a suite of digital tools.
These can include programmable controls for setting multi-step cycles of pressure and temperature, clear digital displays, and data logging capabilities to record process parameters for analysis and quality assurance.
Form Factor and Physical Design
Beyond the core operational features, the physical design dictates how a press fits into a specific laboratory environment and workflow.
Benchtop vs. Floor-Standing Models
Laboratory presses are typically designed as compact benchtop units to conserve valuable lab space. These are ideal for most sample preparation and R&D tasks.
For applications requiring extremely high tonnage or larger sample sizes, larger floor-standing models are available. Some benchtop units can also be fitted with an optional pedestal to convert them for floor use.
Platen Size and Clearance
The size of the platens determines the maximum size of your sample or mold. Standard sizes are available, but it's a key specification to match with your intended use. The vertical clearance, or "daylight," determines how thick a sample or mold assembly the press can accommodate.
Understanding the Trade-offs
Choosing a press involves balancing capability with complexity and cost. More features are not always better if they don't serve your primary application.
Manual vs. Automated: Control vs. Simplicity
A manual press offers simplicity, lower cost, and a tactile feel for the pressure being applied. It is perfectly suited for straightforward tasks like creating KBr pellets for FTIR spectroscopy, where an operator's feel is often sufficient.
An automated press excels at repeatability. By removing operator variance, it is essential for materials research, quality control, and any process where identical conditions must be reproduced perfectly every time.
Feature Complexity vs. Application Need
A press with programmable temperature ramping and data logging is essential for developing a complex polymer curing process. However, those same features are unnecessary overhead for a lab that only performs simple fluid extraction from plant tissue.
The key is to align the press's features with the technical demands of the application. Over-specifying a press leads to unnecessary cost and complexity, while under-specifying it will make achieving reliable results impossible.
Selecting the Right Press for Your Goal
Your choice should be driven entirely by the specific outcome you need to achieve.
- If your primary focus is routine sample preparation (e.g., FTIR pellets): Prioritize reliability and simplicity; a manual benchtop press with a clear pressure gauge is often the most efficient tool.
- If your primary focus is materials research (e.g., polymer or composite molding): You need precise, repeatable control; an automated press with programmable temperature, pressure cycles, and data logging is non-negotiable.
- If your primary focus is material strength testing: Look for a robust frame and a highly accurate pressure gauge or digital force readout.
- If your primary focus is small-scale production or high throughput: Consider an automated press with larger platens and features that minimize cycle time.
Ultimately, a laboratory press is a tool for applying precise energy to a material, and the right features ensure you can do so with purpose and control.
Summary Table:
| Feature | Description | Key Benefit |
|---|---|---|
| Hydraulic System | Generates force via manual or electric pumps | Controlled high-pressure application |
| Heated Platens | Applies precise, uniform temperature | Essential for molding and curing processes |
| Control Interface | Digital or manual for pressure and temperature | Ensures repeatability and data logging |
| Form Factor | Benchtop or floor-standing models | Fits lab space and application needs |
