What Is An Example Of A Manual Hydraulic Press And How Does It Work? Discover Precision Force For Your Lab

At its core, a manual hydraulic press is a hand-operated device that multiplies a small amount of physical effort into a massive compressive force. A common example is a laboratory bench-top press, often based on the Bramah Press design, which uses a hand lever to generate forces as high as 25 tons for tasks like creating sample pellets for analysis.

The true function of a manual hydraulic press is not to rely on the operator's strength, but to use the fundamental law of fluid mechanics—Pascal's principle—to amplify a small, manageable force into a powerful, controlled output.

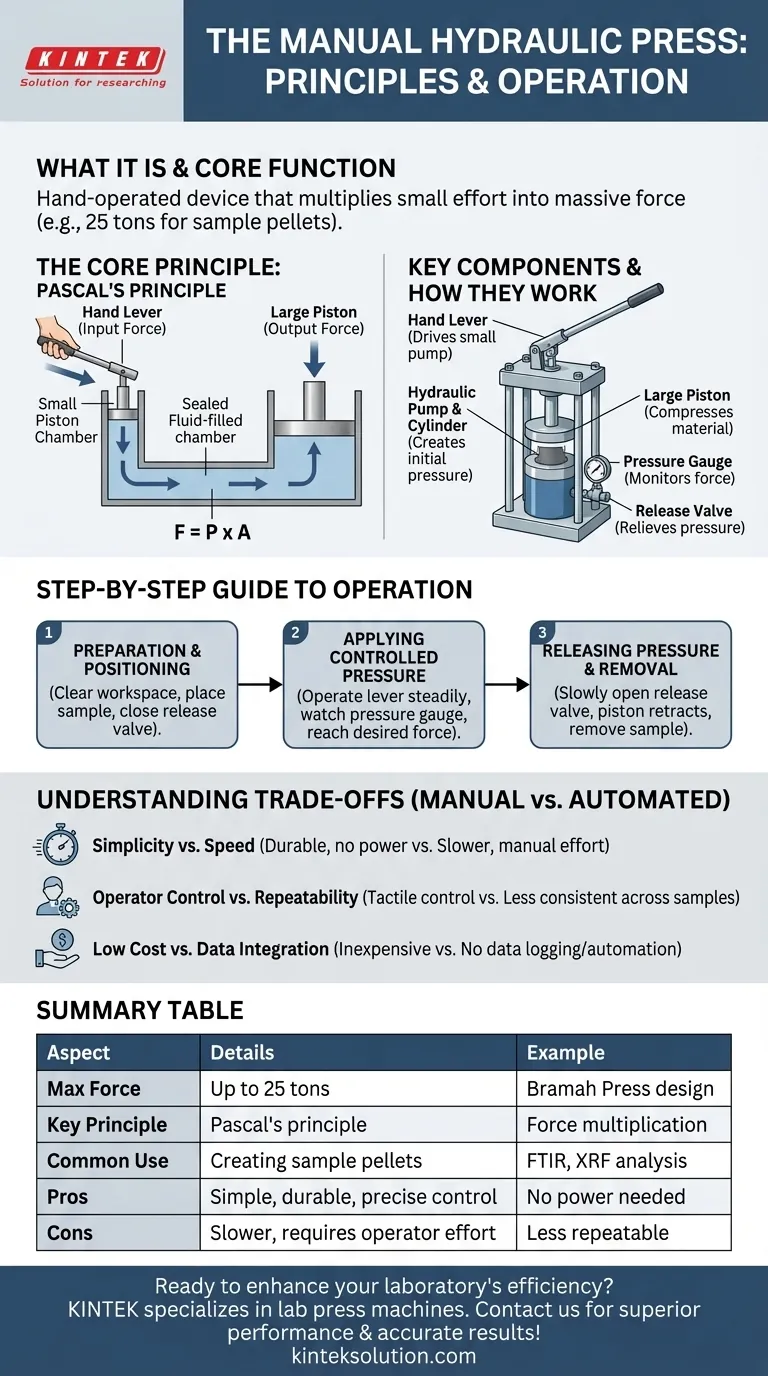

The Core Principle: How Force is Multiplied

A manual hydraulic press is a masterclass in mechanical advantage, converting the work you do on a simple lever into a powerful and precise force. This is accomplished through a sealed hydraulic system.

Pascal's Principle in Action

The entire operation hinges on Pascal's principle. This law of physics states that pressure applied to an enclosed, incompressible fluid is transmitted undiminished to every portion of the fluid and the walls of the containing vessel.

In a press, you apply a small force to a small piston via a hand lever. This creates pressure in the hydraulic oil. Because the system is sealed, this exact same pressure acts on a much larger piston, which holds the workpiece. Since force equals pressure multiplied by area (F = P x A), the larger area of the second piston results in a massive multiplication of the initial force.

The Key Components

Understanding the press becomes simple when you see its core parts working together:

Hand Lever: This is your input. It provides the initial mechanical advantage to drive a small pump.
Hydraulic Pump & Cylinder: The lever operates a small piston inside a cylinder filled with hydraulic oil, creating the initial pressure.
Large Piston: This is the output. It sits in a larger cylinder and moves upward as the fluid pressure acts upon it, compressing the material placed on its surface.
Pressure Gauge: This crucial component provides feedback, allowing you to monitor the exact amount of force being applied to your sample in real-time.
Release Valve: A simple hand-operated valve that, when opened, relieves the pressure in the system, allowing the large piston to retract.

A Step-by-Step Guide to Operation

Proper operation is essential for both safety and achieving a successful result, such as a well-formed sample pellet.

Preparation and Positioning

First, ensure the workspace is clear and the press is on a stable surface. Place your material (often within a pellet die) centrally on the main piston to ensure an even application of force. Some presses have a leadscrew to raise the pressing surface just until it touches the workpiece before applying hydraulic pressure.

Applying Controlled Pressure

Before pumping, ensure the release valve is fully closed. This seals the hydraulic system. Begin to operate the hand lever with smooth, steady strokes. The piston will rise and start applying force.

Critically, watch the pressure gauge closely. Continue pumping until you reach the desired force required for your specific application, being careful not to exceed the press's or your die's maximum rating.

Releasing Pressure and Removal

Once the pressing is complete, slowly and gradually open the release valve. Opening it too quickly can cause a sudden decompression that may shock or damage the sample or equipment. As pressure is released, the piston will retract. You can then safely remove your workpiece.

Understanding the Trade-offs

While powerful, a manual press is a specific tool with inherent limitations and benefits compared to its automated counterparts.

Simplicity vs. Speed

The greatest strength of a manual press is its mechanical simplicity. With no electronic components, it is extremely durable, reliable, and can be used anywhere without needing a power source. The trade-off is speed and effort; it is slower than an automated press and requires physical work from the operator.

Operator Control vs. Repeatability

A manual press offers the operator direct, tactile control over the rate of pressure application, which can be critical for certain sensitive materials. However, achieving the exact same pressure curve and final force across many samples depends entirely on operator skill, making it inherently less repeatable than a programmable electric or automated press.

Low Cost vs. Data Integration

The straightforward design makes manual presses significantly less expensive than automated systems. The downside is a lack of features like data logging, automated pressure cycles, or integration into a larger digital workflow.

Making the Right Choice for Your Goal

Selecting a manual press is about aligning its fundamental characteristics with your specific objective.

If your primary focus is sample preparation (FTIR, XRF): A manual press is the industry standard, offering the precise control needed to create high-quality, consistent pellets from powder samples.
If your primary focus is simplicity and field reliability: Its robust, power-free mechanical design makes it the ideal choice for workshops or labs where durability is paramount and electrical power is unreliable.
If your primary focus is low-volume or budget-conscious applications: It provides immense force capability for occasional pressing, forming, or assembly tasks at a fraction of the cost of an automated system.

Ultimately, the manual hydraulic press is an elegant tool that empowers you to apply immense, controlled force with precision.

Summary Table:

Aspect	Details
Example	Laboratory bench-top press (e.g., Bramah Press design)
Max Force	Up to 25 tons
Key Principle	Pascal's principle for force multiplication
Common Use	Creating sample pellets for analysis (e.g., FTIR, XRF)
Pros	Simple, durable, no power needed, precise control
Cons	Slower, requires operator effort, less repeatable
