At its core, hydraulics is a technology that leverages the physical properties of a contained, pressurized fluid to generate, control, and transmit power. It is the science of using liquids, typically a specialized oil, to perform work and create immense mechanical force from a relatively small initial input.
The fundamental concept behind hydraulics is that force applied to an enclosed, incompressible fluid is transmitted equally throughout the fluid. This principle allows a small input force to be multiplied into a massive output force, making it the bedrock of heavy machinery and precision control systems.

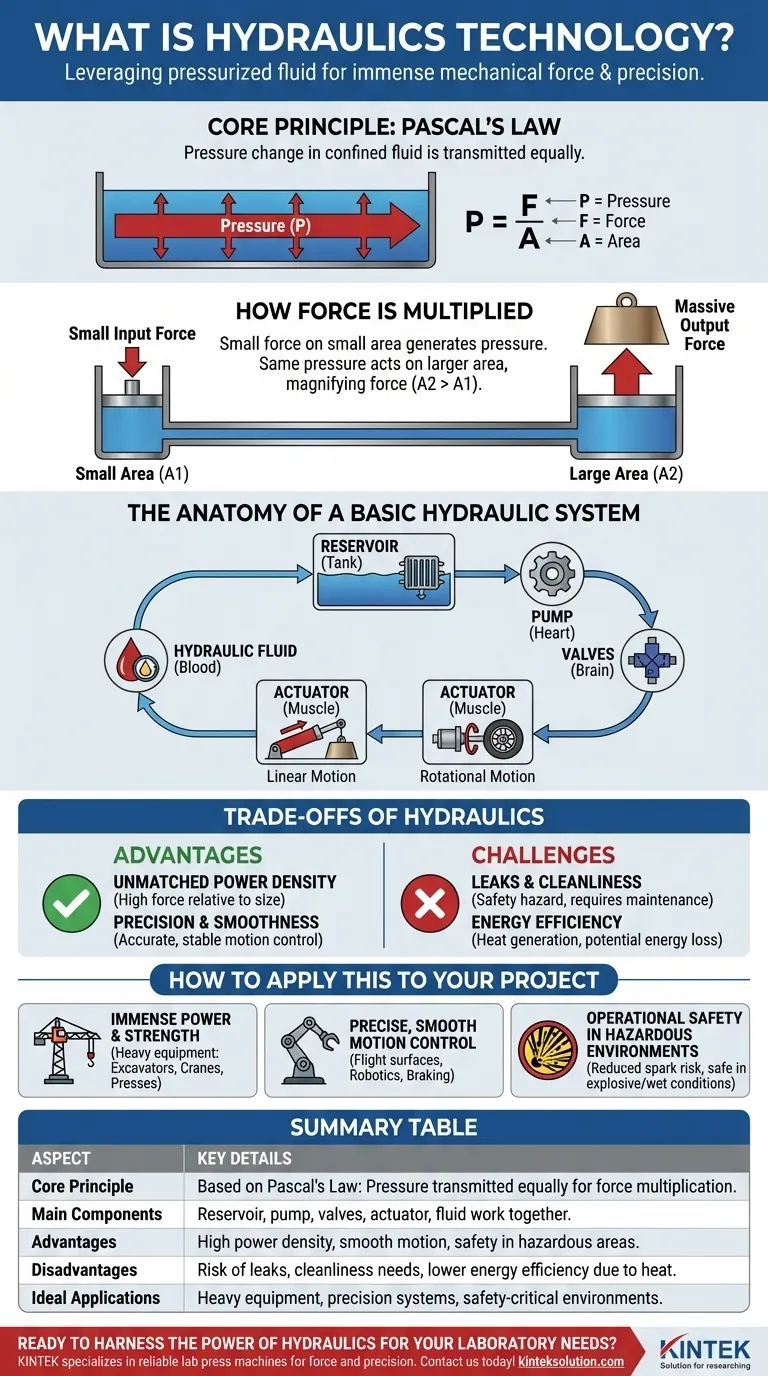

The Core Principle: Pascal's Law Explained
Hydraulics may seem complex, but it operates on a remarkably simple and elegant principle of physics discovered in the 17th century.
What is Pascal's Law?
Pascal's Law states that a pressure change at any point in a confined, incompressible fluid is transmitted equally to every point throughout the fluid.
Pressure is defined as Force divided by Area (P = F/A). Because the pressure remains constant throughout the system, we can manipulate the force by changing the surface area it acts upon.
How Force is Multiplied
Imagine two pistons in two connected, sealed cylinders filled with oil—one small and one large.
If you apply a small force to the small piston, you create pressure in the fluid. This same pressure is transmitted and pushes up on the large piston. Because the large piston has a much greater surface area, the resulting output force is magnified proportionally.
This is how a person pressing a small pedal can generate enough force to stop a multi-ton vehicle or how a single operator can lift tons of earth with an excavator.
The Role of Incompressibility
This entire process relies on the fact that liquids are incompressible. Unlike a gas, a liquid's volume does not significantly decrease under pressure.
This property ensures that the energy you put into the system isn't wasted on squeezing the fluid itself. Instead, it is transferred efficiently from one point to another, resulting in immediate and powerful mechanical work.
The Anatomy of a Basic Hydraulic System
While applications vary, most hydraulic systems contain the same fundamental components working together. Think of it as a circulatory system for a machine.
The Reservoir
The reservoir is a tank that holds the hydraulic fluid. It also helps cool the fluid and allows contaminants to settle out.
The Pump
The pump is the heart of the system. Driven by an engine or electric motor, it creates a continuous flow of hydraulic fluid; it does not create pressure. Pressure is generated only when this flow meets resistance.
The Valves
Valves are the brain of the system. They direct the flow of fluid to different parts of the machine and can be used to control the direction, speed, and force of the actuators with incredible precision.
The Actuator
The actuator is the muscle. It converts the fluid pressure back into mechanical energy. This is typically a hydraulic cylinder (for linear motion, like lifting a boom) or a hydraulic motor (for rotational motion, like turning a wheel or drill).
The Hydraulic Fluid
The fluid is the blood of the system. It is usually a specially formulated oil designed not only to transfer energy but also to lubricate components, dissipate heat, and resist corrosion.
Understanding the Trade-offs of Hydraulics
No technology is perfect. Understanding the advantages and disadvantages of hydraulics is key to appreciating why it is chosen for certain tasks over electric or mechanical systems.
The Advantage: Unmatched Power Density
Hydraulic systems offer an incredible amount of power and force relative to their size and weight. A small hydraulic cylinder can produce a force hundreds of times greater than an electric motor of the same size.
The Advantage: Precision and Smoothness
Because the fluid provides a rigid medium for power transfer, hydraulic systems allow for extremely smooth, stable, and precisely controlled motion. This is critical for applications like aircraft flight controls and CNC machinery.
The Challenge: Leaks and Cleanliness
The most common point of failure is leakage. Leaking hydraulic fluid can be a safety hazard, an environmental concern, and can cause system failure. The system must also be kept exceptionally clean, as tiny contaminants can damage the precision-machined internal components.
The Challenge: Energy Efficiency
Hydraulic systems generate significant heat as the fluid is forced through pumps, pipes, and valves. This heat represents a loss of energy, and many systems require coolers or large reservoirs to manage operating temperatures, reducing overall efficiency.
How to Apply This to Your Project
Understanding these principles helps you recognize where hydraulics excels and where other technologies might be a better fit.
- If your primary focus is immense power and strength: Hydraulics is the default choice for heavy equipment like excavators, cranes, log splitters, and industrial presses where massive force multiplication is the primary goal.
- If your primary focus is precise, smooth motion control: Leverage hydraulics for applications like aircraft flight surfaces, braking systems, and advanced manufacturing robotics where responsiveness and stability are non-negotiable.
- If your primary focus is operational safety in hazardous environments: A hydraulic system is often safer than an electrical one in explosive or extremely wet conditions, as it dramatically reduces the risk of sparks and electrical shock.
By understanding how a simple fluid can be used to multiply force, you can demystify some of the world's most powerful and essential machines.
Summary Table:
| Aspect | Key Details |
|---|---|
| Core Principle | Based on Pascal's Law: pressure in a confined fluid is transmitted equally, allowing force multiplication. |
| Main Components | Reservoir, pump, valves, actuator, and hydraulic fluid work together for power transmission. |
| Advantages | High power density, smooth and precise motion control, safety in hazardous environments. |
| Disadvantages | Risk of leaks, cleanliness requirements, lower energy efficiency due to heat generation. |
| Ideal Applications | Heavy equipment (e.g., excavators, presses), precision systems (e.g., CNC machinery), and safety-critical environments. |
