In material science and research, a hydraulic press serves two fundamental roles: subjecting materials to controlled, high-pressure force to test their physical limits, and preparing homogenous, high-quality samples for precise analytical measurement. By applying quantifiable force, these machines allow researchers to either simulate extreme environments to observe a material's response or create uniform pellets and films required for accurate spectroscopic analysis.
The core function of a hydraulic press in a laboratory is not merely to crush or compact. It is to apply a highly controlled and uniform force, making it an indispensable tool for revealing a material's intrinsic properties and for preparing scientifically valid samples for further investigation.
Revealing Material Properties Through Controlled Stress
A primary use of the hydraulic press is to characterize the mechanical behavior of a material. This is achieved by simulating the intense forces a material might encounter in its intended application or in a natural environment.
Simulating Real-World Conditions
Researchers use hydraulic presses to replicate extreme conditions like the immense pressure found in the deep sea or the geological forces within the Earth's crust.
By observing how a material deforms, compresses, or fails under these simulated loads, engineers can validate its suitability for demanding applications in aerospace, civil engineering, or manufacturing.
Determining Mechanical Limits
Presses are used to conduct destructive and non-destructive testing to find a material's fundamental properties. This includes its compressive strength, elasticity (ability to return to its original shape), and plasticity (permanent deformation).
By precisely measuring the force applied, researchers can determine a material's fracture point, providing critical data for safety and durability standards.
Quantifying Performance Characteristics
Beyond raw strength, presses can test for specific performance failures. For example, in the printing industry, a press is used to test blocking resistance.
This test assesses whether a printed or coated material will improperly adhere to itself when stacked under pressure, a crucial quality control metric.
Preparing Samples for Precise Analysis
Arguably the most common laboratory use of a hydraulic press is for sample preparation. Many advanced analytical techniques require samples that are perfectly uniform, and a press is the ideal tool to create them.
The Need for Homogeneity
Techniques like spectroscopy work by passing a beam of energy (like infrared light or X-rays) through a sample. If the sample is not uniform in density and thickness, the results will be skewed and inaccurate.
A hydraulic press ensures uniform compaction, eliminating voids and creating a homogenous sample medium. This ensures that the analytical measurement is consistent across the entire sample.
Application in Spectroscopy (FTIR & XRF)
For FTIR spectroscopy, a press is used to create thin, transparent KBr (potassium bromide) pellets. A small amount of powdered sample is mixed with KBr powder and pressed into a disc, which is ideal for infrared analysis.
For XRF (X-ray fluorescence) spectroscopy, powdered samples are pressed into dense, solid pellets. This creates a flat, uniform surface that provides highly reliable and reproducible results for elemental analysis.
Understanding the Trade-offs and Limitations
While powerful, a hydraulic press is not the solution for every testing scenario. Understanding its limitations is key to proper application.
Force vs. Finesse
A hydraulic press excels at applying uniform compressive force. It is less suited for complex tests requiring multi-axis force, torsion, or rapid cyclical loading, which demand more specialized machinery.
Sample Integrity
Excessive pressure can fundamentally alter a material. Over-compression can induce phase changes, damage a material's crystalline structure, or even trigger chemical reactions, leading to an analysis of a material state that does not represent the original sample.
The Role of Temperature
A standard hydraulic press only controls pressure. Many material properties are dependent on both pressure and temperature. For this, a heated hydraulic press is required, which adds significant complexity and cost to the experimental setup.
Making the Right Choice for Your Goal
The specific use of a hydraulic press depends entirely on your research objective. Use its capabilities to either test a material's response to force or prepare it for another form of analysis.
- If your primary focus is mechanical characterization: Use the press to determine a material's compressive strength, deformation behavior, and failure points under simulated operational loads.
- If your primary focus is chemical or compositional analysis: Use the press to create homogenous, uniformly compacted pellets (e.g., KBr or XRF discs) to ensure accurate and repeatable spectroscopic results.
- If your primary focus is process simulation: Use the press to mimic manufacturing steps like lamination, bonding, or powder compaction to study material performance during production.
Ultimately, a hydraulic press translates abstract forces into tangible, measurable data, empowering you to make informed decisions about your materials.

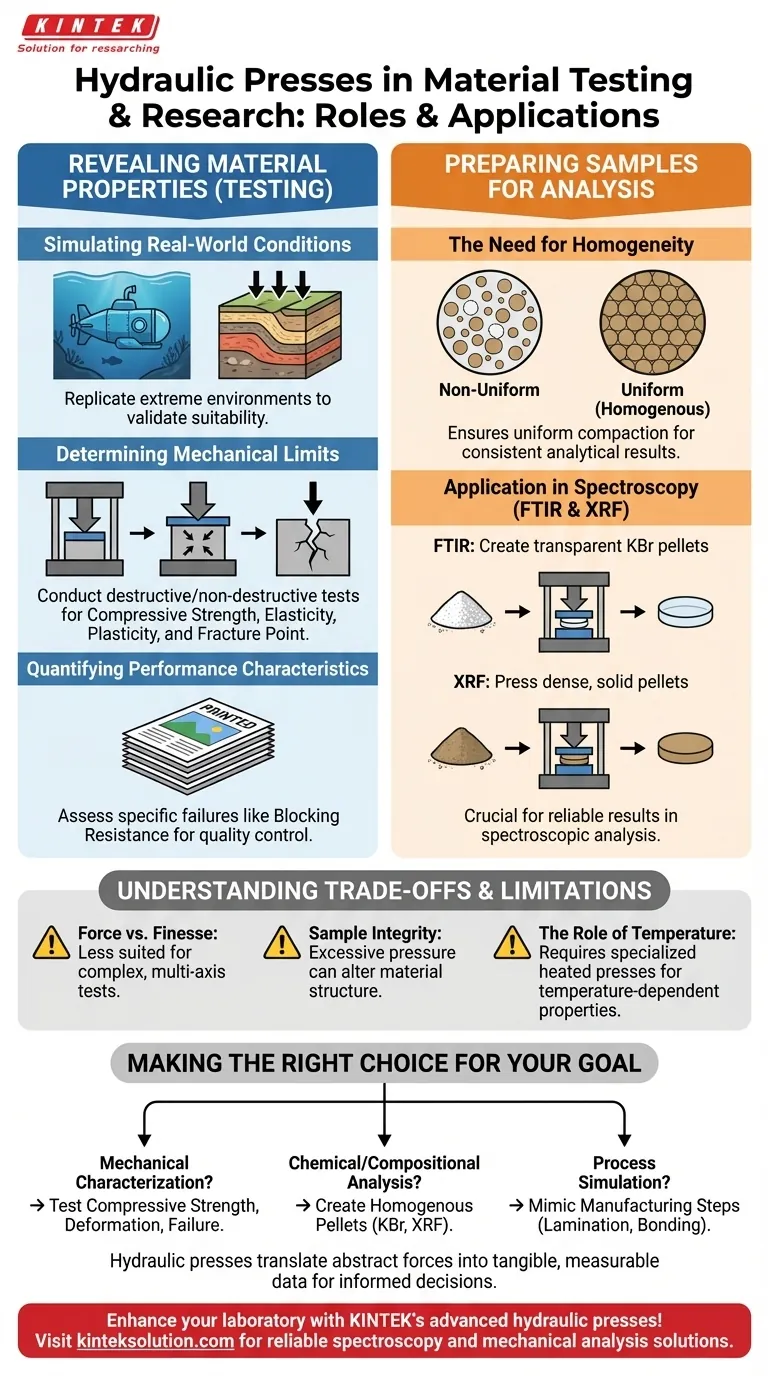

Summary Table:
| Application | Key Function | Examples |
|---|---|---|
| Material Testing | Apply controlled force to simulate extreme conditions and determine mechanical properties | Compressive strength, elasticity, fracture point |
| Sample Preparation | Create homogenous pellets for precise analytical techniques | KBr pellets for FTIR, solid pellets for XRF |
| Limitations | Not suitable for multi-axis forces or temperature-dependent tests without heated presses | Risk of sample alteration, requires specialized setups |
