What role does the power system play in a hydraulic press? Driving Force and Efficiency Explained

The power system in a hydraulic press is the prime mover, converting electrical energy into the mechanical motion needed to operate the machine. Typically an electric motor, its sole function is to drive the hydraulic pump. This pump is what generates the flow of hydraulic fluid, creating the pressure required to produce the press's immense compressive force.

The power system acts as the engine of the hydraulic press. While it does not create the force itself, it provides the essential energy that the hydraulic system then masterfully multiplies, based on a fundamental principle of fluid dynamics.

The Chain of Force: From Electricity to Tons of Pressure

A hydraulic press works by converting a small input force into a massive output force. The power system is the first link in this critical chain of energy conversion.

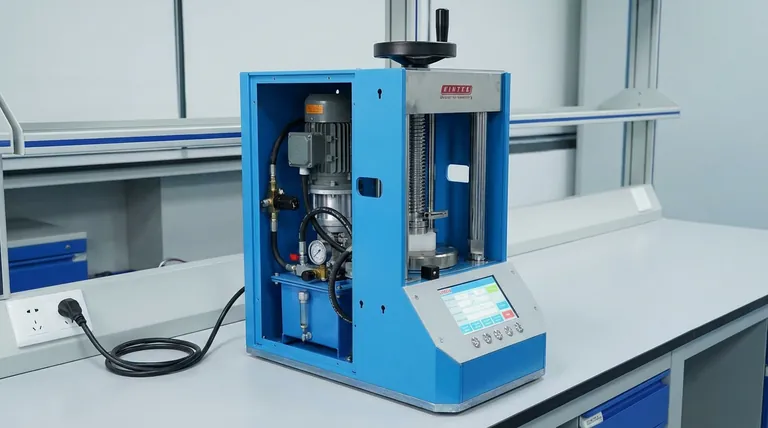

The Role of the Electric Motor

The power system is nearly always an electric motor. Its job is to convert electrical energy from the grid into rotational mechanical energy.

The motor itself doesn't "know" it's part of a press; its only task is to spin a shaft at a consistent speed and with sufficient torque.

Driving the Hydraulic Pump

The motor's rotating shaft is coupled directly to a hydraulic pump. The pump draws hydraulic fluid (usually a specialized oil) from a reservoir.

As the pump's internal gears or pistons rotate, they force this fluid into the hydraulic circuit under pressure. The motor provides the power to make this happen.

How Pressure Is Generated

The power system and pump work together to create fluid flow. When this moving fluid meets resistance—such as the large piston in the press's main cylinder—it can no longer flow freely.

This resistance is what causes pressure to build throughout the confined fluid in the system. The motor must continue to supply power to the pump to sustain this pressure as the press does its work.

Pascal's Principle: The Force Multiplier

The pressure created by the power system and pump is the key, but the "magic" of force multiplication comes from a scientific principle discovered centuries ago.

The Core Concept

A hydraulic press operates on Pascal's Principle. This law states that pressure applied to a confined, incompressible fluid is transmitted equally in all directions throughout the fluid.

This means that a pressure of 2,000 PSI generated by the pump is felt equally at every point within the system's hoses, valves, and cylinders.

Multiplying the Force

The press uses this principle by applying the fluid pressure to a piston with a very large surface area.

Because force equals pressure multiplied by area (Force = Pressure × Area), even a moderate pressure applied over a large piston area results in an enormous output force. The power system's initial energy input is thus multiplied many times over.

Understanding the System's Dynamics

The power system is a critical component, but its effectiveness depends on the entire hydraulic design. Understanding its limitations and benefits is key to proper operation.

Benefit: Energy Efficiency

Because of force multiplication, a relatively small and energy-efficient electric motor can produce forces equivalent to a much larger, more power-hungry mechanical system.

Benefit: Precise Control

The final force of the press can be adjusted with extreme precision by using valves to regulate the fluid pressure generated by the pump. This gives operators total control over the machine's output.

Trade-off: Speed vs. Force

A primary trade-off in hydraulic systems is speed versus force. Generating extremely high pressures takes time. Consequently, many high-tonnage hydraulic presses operate more slowly than their mechanical counterparts. The power system's horsepower rating is a limiting factor in how quickly this pressure can be built.

The Need for a Robust Structure

The forces generated are immense. The power system, pump, and cylinders are all mounted within a heavy-duty mainframe. This structure is engineered to withstand and safely contain the operational forces without deforming.

Making the Right Choice for Your Goal

Understanding the power system's role helps you better operate, maintain, and specify the right machine for your needs.

  • If your primary focus is maintenance: Pay close attention to the health of the electric motor and the coupling to the pump, as any failure here will shut down the entire machine.
  • If your primary focus is operation: Recognize that the force you command is a direct result of the pressure built by the motor-and-pump combination.
  • If your primary focus is purchasing a press: The power system's size (horsepower or kilowatts) is a key indicator of the press's potential speed and duty cycle, not just its raw force.

Ultimately, the power system is the heart of the hydraulic press, providing the consistent energy that the hydraulic circuit transforms into exceptional power.

Summary Table:

Component Role Key Function
Electric Motor Converts electrical energy to mechanical energy Drives the hydraulic pump for fluid flow
Hydraulic Pump Generates hydraulic fluid pressure Creates force based on Pascal's Principle
System Benefits Enables force multiplication and precise control Supports energy-efficient, high-tonnage operations
