At its core, a hydraulic press is designed with several key safety features to protect the operator from the immense forces it generates. The most fundamental of these are mechanical guards to prevent physical access to the pressing area and pressure relief valves to prevent catastrophic failure of the hydraulic system itself. These features work in concert to mitigate the primary risks of crushing and high-pressure fluid release.
A hydraulic press generates extreme force, making safety a primary design concern. True safety is achieved not by a single feature, but through a layered system that combines mechanical guards, hydraulic controls, and mandatory operator procedures.
How a Hydraulic Press Creates Force (And Risk)
To understand its safety features, you must first understand how a hydraulic press works. The design is based on Pascal's principle, allowing it to multiply force significantly.
The Core Components
A pump moves hydraulic fluid from a reservoir into a cylinder. This pressurized fluid acts on a piston or ram.
Because the fluid is incompressible, a small amount of force applied by the pump creates an enormous amount of output force at the ram, which is then applied to the workpiece.
The Inherent Dangers
The primary dangers stem directly from this force-multiplying capability. The point of operation, where the ram meets the workpiece, presents a severe crushing hazard. Additionally, the entire hydraulic system is under extreme pressure, creating a risk of high-pressure fluid injection or component failure if that pressure is not properly controlled.

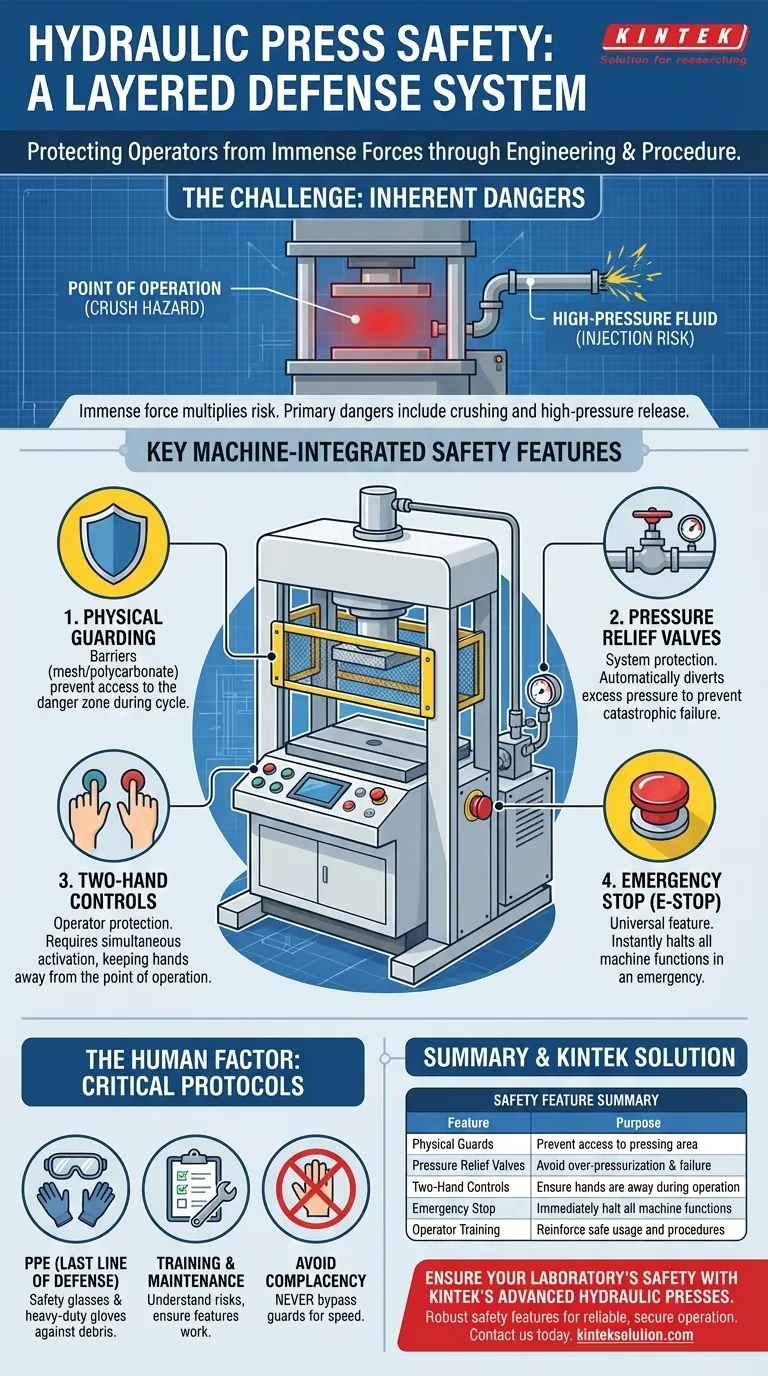

Key Machine-Integrated Safety Features
Modern hydraulic presses incorporate several features designed directly into the machine to address these inherent risks.
Physical Guarding
This is the first line of defense. Guards are physical barriers—often made of steel mesh or polycarbonate—that prevent an operator from placing their hands or any body part in the danger zone during a press cycle. They can be fixed, interlocked, or adjustable depending on the application.
Pressure Relief Valves
This is a critical safety component for the hydraulic system itself. The pressure relief valve is designed to automatically open and divert hydraulic fluid back to the reservoir if the system pressure exceeds a preset maximum. This prevents the over-pressurization that could cause hoses to burst or cylinders to fail catastrophically.
Two-Hand Controls
Many modern presses require the operator to use both hands simultaneously to activate the ram. Buttons are placed far enough apart that a single person cannot trigger the press while having a free hand near the point of operation. If either button is released, the ram immediately stops or retracts.
Emergency Stop (E-Stop)
An E-Stop is a large, conspicuous button (usually red and mushroom-shaped) that, when pressed, immediately halts all machine functions. It is a universal feature on powered machinery designed for an instant, overriding stop in the event of a problem.
Understanding the Trade-offs: The Human Factor
Even the most advanced safety features are only effective when used correctly. Operator behavior and workshop procedures are a critical, and often overlooked, part of the overall safety system.
The Danger of Complacency
The most significant risk is an operator intentionally bypassing a safety feature for convenience or speed. Removing a guard or taping down one of the two-hand control buttons completely negates the machine's built-in protection and dramatically increases the risk of serious injury.
The Role of Personal Protective Equipment (PPE)
Safety glasses and heavy-duty gloves are not optional. While machine guards are the primary protection, PPE serves as a crucial last line of defense against flying debris from a shattering workpiece or unexpected material ejection.
The Importance of Training and Maintenance
A trained operator understands the specific risks of the machine and the purpose of its safety features. Regular maintenance, including checking for hydraulic fluid leaks and ensuring guards are secure, is essential to confirm the safety systems are in good working order.
Making the Right Choice for Safety
Your approach to safety will depend on your specific role and goal. The key is to see safety not as a feature, but as a complete system.
- If your primary focus is operating an existing press: Identify every safety feature on the machine before you begin work and never, under any circumstances, bypass them.
- If your primary focus is purchasing a press: Look for a comprehensive safety package that includes robust physical guarding, two-hand controls, and clear documentation.
- If your primary focus is overall workshop safety: Implement a culture where machine safety is reinforced by mandatory training, strict operating procedures, and regular maintenance schedules.
Ultimately, ensuring safety when using a hydraulic press is a deliberate process that respects the machine's power and accounts for human factors.
Summary Table:
| Safety Feature | Purpose |
|---|---|
| Physical Guards | Prevent access to pressing area |
| Pressure Relief Valves | Avoid over-pressurization and failure |
| Two-Hand Controls | Ensure hands are away during operation |
| Emergency Stop | Immediately halt all machine functions |
| Operator Training | Reinforce safe usage and procedures |
