In short, a laboratory press is a highly versatile tool capable of processing a wide range of materials, primarily by applying immense pressure. The most common forms include powders, polymer beads, and sheet materials, but the technology extends to broader categories like metals, ceramics, and composites, especially when heat is also applied.
A laboratory press transforms materials through the precise application of force, and sometimes heat. The key to success is understanding that the material's form and the chosen pressing method (cold vs. hot) are directly linked to the final desired outcome, whether it's a simple sample pellet or a fully dense, engineered part.
How a Laboratory Press Transforms Materials
A laboratory press works on a simple principle: applying a controlled, high-pressure force to a material contained within a die or between platens. This process can be used for simple compaction or for more complex material transformations.
Compaction via Pressure (Cold Pressing)
The most fundamental application involves using pressure alone at ambient temperature. This is ideal for consolidating loose materials.
The primary goal is to press a powder into a solid, cohesive shape, such as a pellet or disc. This is a standard procedure for preparing samples for analytical techniques like X-ray fluorescence (XRF) or Fourier-transform infrared spectroscopy (FTIR).
Transformation via Heat and Pressure (Hot Pressing)
Many laboratory presses are equipped with heated platens. The combination of heat and pressure unlocks a much wider range of applications and materials.
Heat softens the material, allowing particles to deform and fuse together more effectively. This process, known as sintering or hot pressing, results in a much denser, stronger, and less porous final part compared to cold pressing.
Key Material Categories and Their Applications
The suitability of a material depends on your goal and whether you are using cold or hot pressing.
Powders (Ceramics, Metals, Polymers)
Powders are the most common starting form. This includes ceramic powders, metal powders, and powdered polymers.
Cold pressing is used to create fragile "green" parts or analytical pellets. Hot pressing is used to melt or sinter the powder particles into a solid, fully dense component.
Polymers (Beads, Films, and Sheets)
Polymeric materials are exceptionally well-suited for press processing, often with heat.
Using polymer beads or pellets, a hot press can melt the material and mold it into a new shape or a thin film. Existing polymer sheets can also be laminated or embossed.
Composites
A laboratory press is an excellent tool for fabricating composite materials.
This involves layering different materials, such as polymer films and fiber reinforcements, and using heat and pressure to bond them into a single, integrated structure.
Understanding the Trade-offs
The choice of material is inseparable from the processing method. Each approach has distinct advantages and limitations.
Cold Pressing: Simplicity vs. Density
Cold pressing is fast, simple, and avoids any thermal degradation of the material.
However, the resulting parts (like analytical pellets) are often mechanically weak and porous, held together by friction and particle interlocking rather than true atomic bonds.
Hot Pressing: Versatility vs. Complexity
Hot pressing is far more versatile, enabling the creation of dense, high-strength parts from metals, ceramics, and polymers.
This process is more complex, requiring precise control over temperature, pressure, and cycle time. The heat can also alter the material's microstructure and properties, which must be carefully managed.
Isostatic Pressing: Uniformity vs. Equipment
While less common in standard labs, isostatic pressing applies pressure uniformly from all directions. It is compatible with metals, ceramics, and composites.
This method produces parts with extremely consistent density, but it requires specialized and more expensive equipment than a typical uniaxial laboratory press.
Making the Right Choice for Your Goal
Select your material and process based on your specific objective.
- If your primary focus is preparing analytical samples (e.g., KBr pellets): You should use a fine, dry powder and a simple cold pressing process.
- If your primary focus is creating dense, functional parts: You will need to use a hot press with appropriate metal, ceramic, or composite powders.
- If your primary focus is fabricating thin films or molded shapes: Start with polymer beads, powders, or sheets and use a hot press to melt and form the material.
Ultimately, the laboratory press is a powerful tool when you match the material's properties to the capabilities of the pressing method.
Summary Table:
| Material Type | Common Forms | Key Applications |
|---|---|---|
| Powders | Ceramics, Metals, Polymers | Analytical pellets, dense parts via sintering |
| Polymers | Beads, Films, Sheets | Molding, lamination, embossing |
| Composites | Layered materials | Bonding into integrated structures |
| Metals | Powders, Sheets | High-strength parts with hot pressing |
| Ceramics | Powders | Dense components through sintering |
Unlock the full potential of your laboratory with KINTEK's advanced lab press machines, including automatic, isostatic, and heated presses. Whether you're processing powders, polymers, metals, or composites, our solutions deliver precise control for superior sample preparation and material transformation. Contact us today to discuss how we can enhance your lab's efficiency and achieve your specific goals!

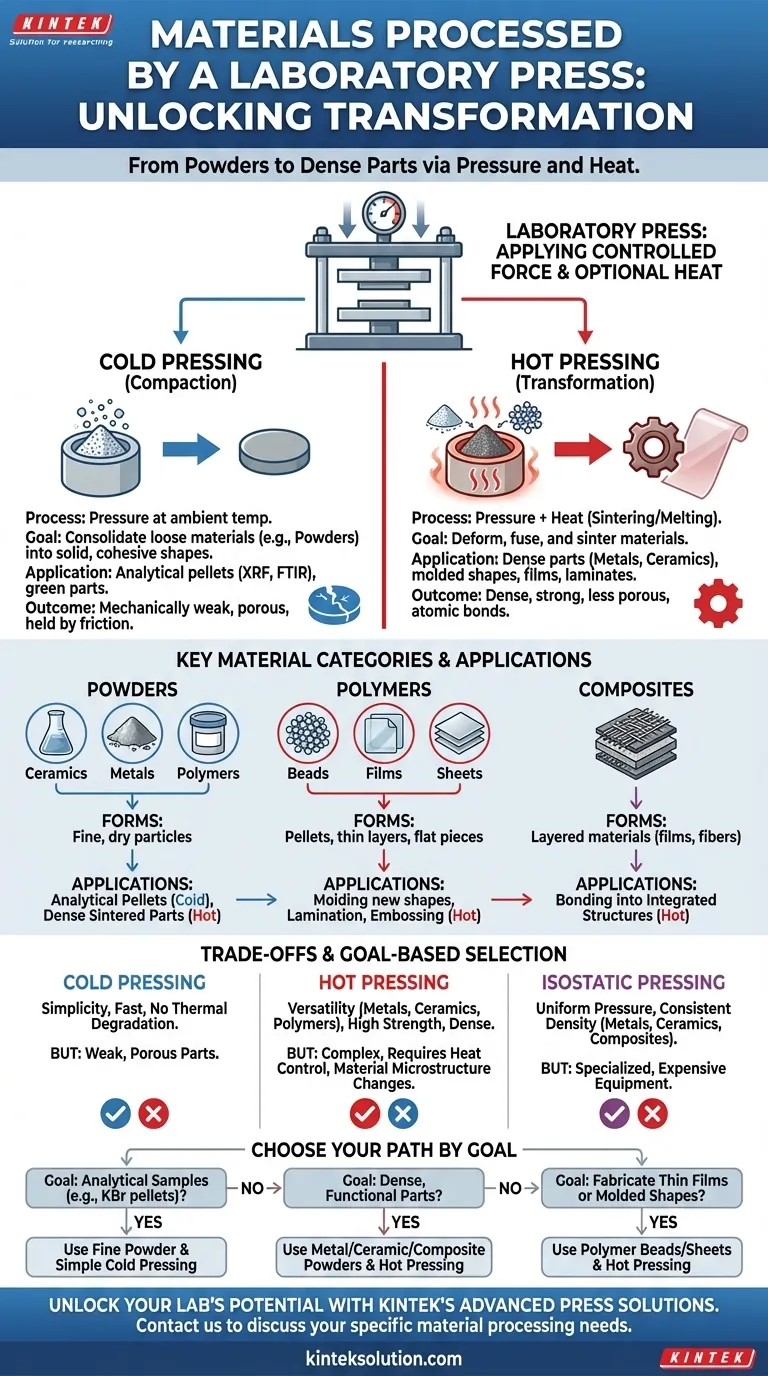

Visual Guide
