At its core, isostatic pressing is a critical advanced manufacturing technology because it solves a fundamental limitation of traditional pressing methods. By applying pressure uniformly in all directions using a fluid, it creates parts with near-perfect density and superior structural integrity, enabling the production of complex, high-performance components that would otherwise be impossible to make.
The central problem with conventional manufacturing is that pressing in one direction creates weak spots and limits geometric complexity. Isostatic pressing eliminates this by using an all-encompassing, fluid-based pressure, resulting in uniformly strong materials and unlocking new frontiers in component design.

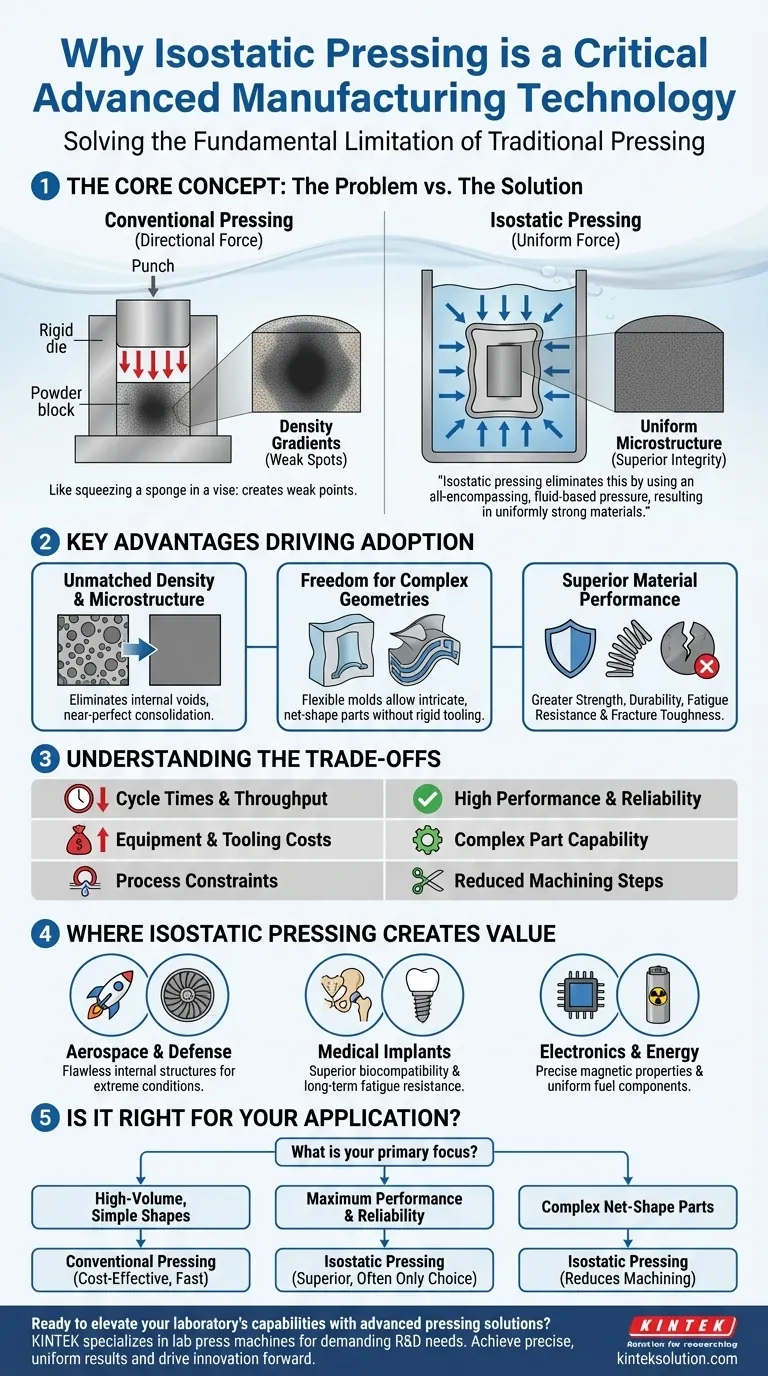

The Fundamental Principle: Overcoming Directional Force
To understand why isostatic pressing is so impactful, we must first recognize the inherent weakness of conventional methods.
The Problem with Conventional Pressing
Traditional powder compaction uses a rigid die and punches to press material from one or two directions (uniaxially or biaxially). This is like squeezing a sponge in a vise.
The material directly under the punch becomes highly compacted, but the material at the sides is less dense. This creates density gradients throughout the part—internal variations that become weak points, prone to failure under stress.
The Isostatic Solution: Uniformity is Strength
Isostatic pressing submerges a component, typically sealed in a flexible mold, into a fluid-filled high-pressure chamber. The pressure is then increased, acting on the component equally from all directions.
This isostatic (uniform direction) pressure eliminates density gradients. Every particle is pushed toward the center with the same force, resulting in a completely uniform microstructure, minimal internal voids, and predictable, reliable material properties.
Key Advantages Driving Adoption
The shift from directional to uniform pressure provides three transformative advantages that are driving demand across high-stakes industries.
Unmatched Density and Microstructure
By eliminating internal voids, isostatic pressing achieves densities that are close to 100% of the theoretical maximum for a material. This near-perfect consolidation creates a superior microstructure, which is the foundation for enhanced performance.
Freedom to Create Complex Geometries
Because the "die" is a flexible mold and the pressure is uniform, designers are no longer constrained by the limitations of rigid tooling. This allows for the creation of components with intricate shapes, undercuts, and internal cavities, often producing a net-shape or near-net-shape part that requires little to no final machining.
Superior Material Performance
The direct result of uniform, high density is a dramatic improvement in mechanical properties. Components made via isostatic pressing exhibit greater strength, durability, fatigue resistance, and fracture toughness compared to those made by casting or conventional pressing.
Understanding the Trade-offs
While powerful, isostatic pressing is not a universal solution. Understanding its limitations is key to applying it correctly.
Cycle Times and Throughput
The process of pressurizing and depressurizing a large vessel can be time-consuming, especially for Hot Isostatic Pressing (HIP) which also involves heating and cooling cycles. This generally results in lower throughput compared to high-speed conventional pressing.
Equipment and Tooling Costs
The high-pressure vessels and sophisticated control systems represent a significant capital investment. Furthermore, designing and fabricating the flexible molds for complex parts requires specialized expertise.
Process Constraints
The component must be sealed in a leak-proof membrane to protect it from the pressure medium. This step adds complexity and is a potential point of failure. The part and its tooling must also be designed to compact predictably under uniform pressure.
Where Isostatic Pressing Creates Value
Isostatic pressing is the enabling technology behind advancements in fields where performance and reliability are non-negotiable.
Aerospace and Defense
In jet engines and rockets, components like turbine disks and blades must withstand extreme temperatures and forces. Isostatic pressing is used to produce superalloy and ceramic parts with the flawless internal structure required for safe and efficient operation.
Medical Implants
The human body is an unforgiving environment. Hip joints and dental implants made via isostatic pressing offer superior biocompatibility and fatigue resistance, ensuring they last for decades without failure.
Electronics and Energy
In the nuclear sector, it is used to produce uniform nuclear fuel components. In electronics, it creates high-purity ceramic targets and ferrites with the precise magnetic properties needed for high-frequency applications.
Is Isostatic Pressing Right for Your Application?
Choosing the right manufacturing process depends entirely on your end goal.
- If your primary focus is high-volume production of simple shapes: Conventional pressing is likely more cost-effective and faster.
- If your primary focus is maximum performance and reliability in a critical component: Isostatic pressing is the superior, and often the only, viable choice.
- If your primary focus is creating complex net-shape parts to reduce machining costs: Isostatic pressing excels at this, turning what would be an expensive, multi-step machining process into a single forming step.
By mastering the principle of uniform pressure, isostatic pressing empowers engineers to build stronger, more complex, and more reliable components than ever before.
Summary Table:
| Aspect | Details |
|---|---|
| Key Principle | Applies uniform pressure in all directions using fluid to eliminate density gradients and weak spots. |
| Main Advantages | Near-perfect density, superior structural integrity, ability to create complex geometries, and enhanced material performance (strength, durability, fatigue resistance). |
| Common Applications | Aerospace (turbine disks, blades), medical (hip joints, dental implants), electronics (ferrites, nuclear fuel components). |
| Limitations | Longer cycle times, higher equipment and tooling costs, requires leak-proof sealing and specialized mold design. |
