Coulometric Karl Fischer Moisture Titrator with Integrated Headspace Oven for Battery Materials

Product Overview

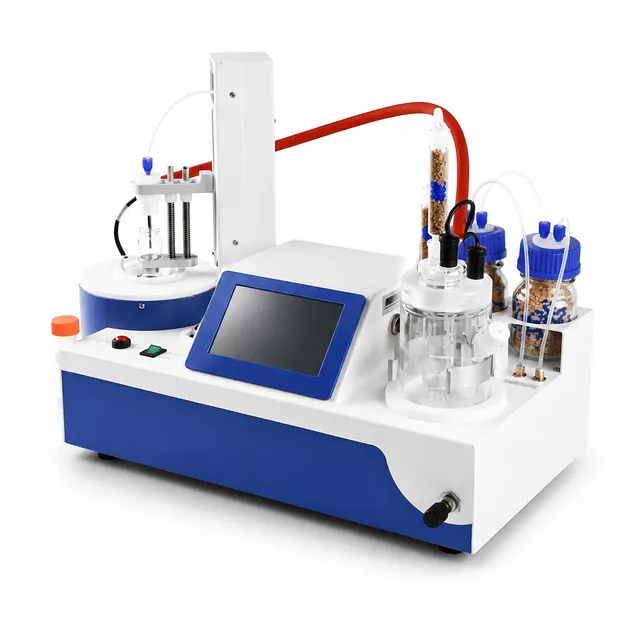

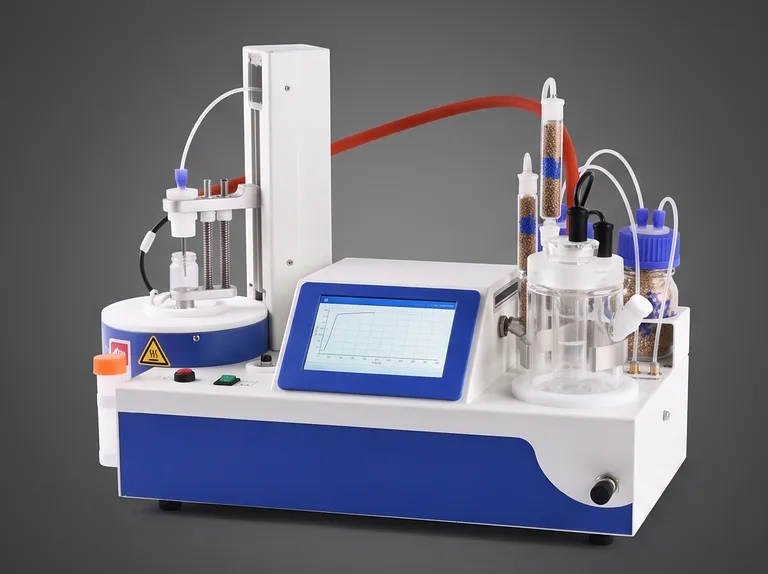

This high-performance coulometric Karl Fischer moisture titrator integrates an advanced coulometric titration module with a precision thermal headspace extraction oven into a unified, space-saving architecture. Specifically developed to meet the rigorous quality control and research standards of the modern battery industry, the equipment provides comprehensive trace moisture detection across liquid, solid, and gaseous samples. Capable of analyzing moisture contents ranging from 1 ppm to 100% (absolute water mass from 3 μg to 199 mg with 0.01 μg resolution), this system eliminates sample matrix interferences by thermally releasing moisture and transferring it directly into the titration cell via a sealed, dry inert carrier gas stream.

Engineered for streamlined deployment across battery manufacturing workflows, the unit is widely utilized for moisture determination in positive and negative electrode active materials, coated electrode sheets, polymeric and ceramic-coated separator films, and non-aqueous liquid electrolytes. Its compact footprint makes it exceptionally well suited for integration into dry rooms or standard glovebox environments, where space optimization and inert atmosphere handling are critical. By preventing direct contact between complex sample matrices and the Karl Fischer reagent, this system ensures extended reagent life, minimizes baseline contamination, and delivers uncompromised analytical throughput.

Built for demanding research and round-the-clock industrial quality assurance, the instrument features intelligent drift adaptation, automated vial piercing, and programmable multi-stage temperature profiles. Operators can rely on stable baseline balances and exceptional measurement repeatability (≥99.7% at 1000 μg H₂O), ensuring that trace water levels—which are critically detrimental to battery cycle life, solid electrolyte interphase (SEI) formation, and cell safety—are quantified with absolute certainty.

Key Features

• Integrated Oven and Coulometric Architecture: Combines a high-efficiency Karl Fischer headspace furnace and an electrochemical titration cell within a single, unified chassis, significantly reducing benchtop footprint and enabling effortless placement inside glovebox containment systems.
• Sub-Microgram Electrolytic Resolution: Advanced electrolysis current control circuitry achieves detection sensitivity down to 0.01 μg H₂O, enabling stable, ultra-trace moisture quantification even in difficult low-moisture electrolyte and separator samples.
• Intelligent Environmental Drift Compensation: Incorporates proprietary smart detection technology that automatically balances background signals, calculates drift shifts in real time, and dynamically optimizes titration end-point accuracy without operator intervention.
• Programmable Multi-Stage Temperature Heating: Features isothermal heating and three-stage temperature ramping from ambient to 285°C with 0.1°C resolution, protecting heat-sensitive samples from thermal decomposition while ensuring complete moisture liberation.
• Automated Pneumatic Needle Piercing Mechanism: Equipped with an automated motorized lifting and vial-piercing assembly alongside alternative screw-cap purge injection modes, streamlining workflow, minimizing human error, and safeguarding operator safety.
• Real-Time Dynamic Process Monitoring: A high-definition color touchscreen interface provides full-process curve visualization, showing moisture release rates, electrolysis progress, and electronic carrier gas flow diagnostics in real time.
• Extensive Method and Recipe Storage: Allows laboratory technicians to edit, save, and recall multiple parameter methods for distinct materials, standardizing testing protocols across cathode powders, raw salts, separators, and liquid electrolytes.
• Comprehensive Hardware Protection and Access Governance: Features intelligent over-temperature cutoffs, automatic electrolysis cutoff upon abnormal termination, hardware diagnostics, and multi-tier user permission management to uphold strict laboratory data integrity.

Applications

Technical Specifications

Why Choose This Product

• Integrated Engineering for Glovebox Deployments: By merging the Karl Fischer furnace and the titration module into a single, compact body, this system eliminates cumbersome external transfer lines, reduces dead volume, and fits effortlessly inside inert atmosphere gloveboxes without consuming valuable working space.
• Uncompromising Trace Precision: Equipped with sub-microgram current control and smart baseline drift algorithms, the instrument delivers exact analytical results (down to 0.01 μg H₂O) even in the presence of complex additives and fluctuating ambient humidity.
• Enhanced Operator Efficiency and Safety: The automated motorized piercing mechanism eliminates manual needle insertion, reducing operator exposure to volatile solvents and hot furnace zones while maximizing repeatability across multi-operator shifts.
• Robust Data Governance and Multi-Sample Adaptability: Built-in multi-method memory, user privilege controls, and direct USB/RS-232 reporting satisfy modern laboratory compliance demands, making the instrument an essential asset for both high-throughput production lines and cutting-edge battery research.

Contact our technical sales team today to request a customized quotation, schedule a technical consultation, or discuss application-specific testing protocols for your battery materials.
