To properly prepare a geologic sample for XRF pellet pressing, you must convert the raw, often heterogeneous material into a perfectly uniform analytical surface. The standard procedure involves grinding the sample into a very fine powder, mixing it thoroughly with a binding agent like cellulose, and then compressing this mixture under high pressure (typically 10-20 tonnes) within a die set to form a durable, flat pellet.

The ultimate goal of sample preparation is not merely to create a solid disc, but to eliminate physical variations within the sample. A homogeneous, finely-ground, and smoothly-pressed pellet ensures that the X-ray beam interacts with a representative surface, which is the absolute foundation for accurate and repeatable elemental analysis.

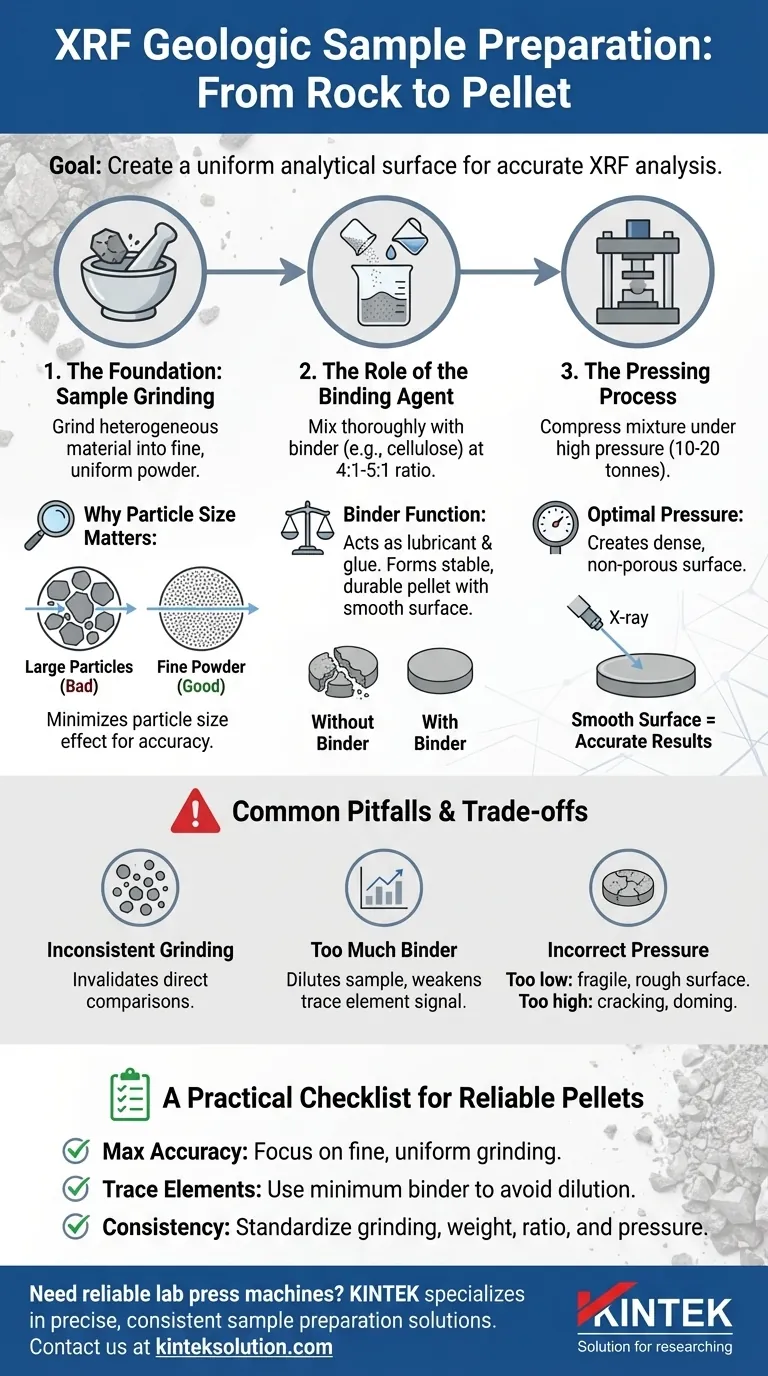

How should geologic samples be prepared for XRF pellet pressing? Ensure Accurate Elemental Analysis with Proper Techniques

The Foundation: Sample Grinding

The first step is arguably the most critical for accurate analysis. Geologic samples are mixtures of different minerals with varying hardness and density, which must be completely homogenized.

Why Particle Size is Critical

The accuracy of XRF is highly sensitive to what is known as the particle size effect. If particles are too large or inconsistent in size, larger grains of one mineral can absorb or "shadow" the fluorescence from smaller grains of another, leading to a distorted and inaccurate reading of the sample's true composition.

Grinding the sample to a fine, uniform powder minimizes these micro-absorption effects. This ensures the X-ray beam interrogates a surface that is a true average of the entire sample, dramatically improving both the accuracy and repeatability of your results.

Achieving Analytical Fineness

While "fine" is a relative term, the goal is to produce a powder that feels like flour, with no perceptible grit. The key is consistency; all samples for a given analysis should be ground for the same duration using the same equipment to ensure particle size distribution is comparable across the entire batch.

The Role of the Binding Agent

A binding agent acts as a lubricant and a glue, helping the fine powder form a mechanically stable and durable pellet that can be handled and placed in the spectrometer without crumbling.

What Binders Do

The binder coats the individual sample particles, reducing friction during pressing and helping them adhere to one another. This process helps eliminate air voids within the pellet, leading to a denser, more robust final product with a perfectly flat analytical surface.

Common Binders and Ratios

For geologic materials, common choices include cellulose or boric acid. The correct amount is a balance; you need enough to form a solid pellet but not so much that you significantly dilute the sample. A typical starting point is a sample-to-binder ratio between 4:1 and 5:1 by weight.

The Pressing Process: From Powder to Pellet

This final step transforms the loose, binder-mixed powder into a dense, solid disc suitable for analysis.

Applying the Right Force

The applied force compacts the powder, expels trapped air, and forces the particles into intimate contact. For most geologic samples in a standard 40 mm die, a load between 10 and 20 tonnes is sufficient. This pressure creates the smooth, non-porous surface required for high-quality XRF analysis.

The Importance of the Die Set

The die set, which contains the powder during compression, must be clean and in good condition. Any scratches or residue on the die surface will be transferred to the pellet, creating surface imperfections that can scatter the X-ray beam and compromise results.

Understanding the Trade-offs and Common Pitfalls

Achieving a perfect pellet requires balancing several competing factors. Missteps in preparation are the most common source of error in XRF analysis.

Inconsistent Grinding

This is the most frequent error. If one sample is ground finer than another, the particle size effects will differ, making a direct comparison of their results invalid.

Using Too Much Binder

While binder is necessary, it is typically composed of light elements (C, H, O) that do not fluoresce strongly. Adding too much binder dilutes your sample, weakening the signal from the elements you want to measure. This is especially problematic when analyzing for trace elements, where every count matters.

Insufficient Pressing Force

Using too little pressure will result in a fragile pellet that can easily crack or crumble. It also leads to a porous, rough surface that is unsuitable for analysis and will produce unreliable data.

Excessive Pressing Force

More is not always better. Exceeding the optimal pressure can cause the pellet to "dome" or develop internal stress, sometimes leading to cracking upon pressure release. Furthermore, every press and die set has a maximum load capacity that should never be exceeded for safety reasons.

A Practical Checklist for Reliable Pellets

Use these guidelines to tailor your preparation method to your analytical goals.

If your primary focus is maximum accuracy: Invest the most time in the grinding step to achieve the finest and most uniform particle size possible.
If your primary focus is analyzing trace elements: Be meticulous about using the absolute minimum amount of binder required to form a stable pellet to avoid signal dilution.
If your primary focus is high-throughput and consistency: Standardize every variable—grinding time, sample weight, binder ratio, and pressing force—and document it as a non-negotiable protocol.

Ultimately, mastering the art of sample preparation is the single most important factor in generating trustworthy and defensible XRF data.

Summary Table:

Step	Key Action	Purpose
Grinding	Grind sample to fine, uniform powder	Minimize particle size effects for accuracy
Binding	Mix with binder (e.g., cellulose) at 4:1-5:1 ratio	Form stable pellet and reduce dilution
Pressing	Compress under 10-20 tonnes in clean die	Create dense, flat surface for XRF analysis
