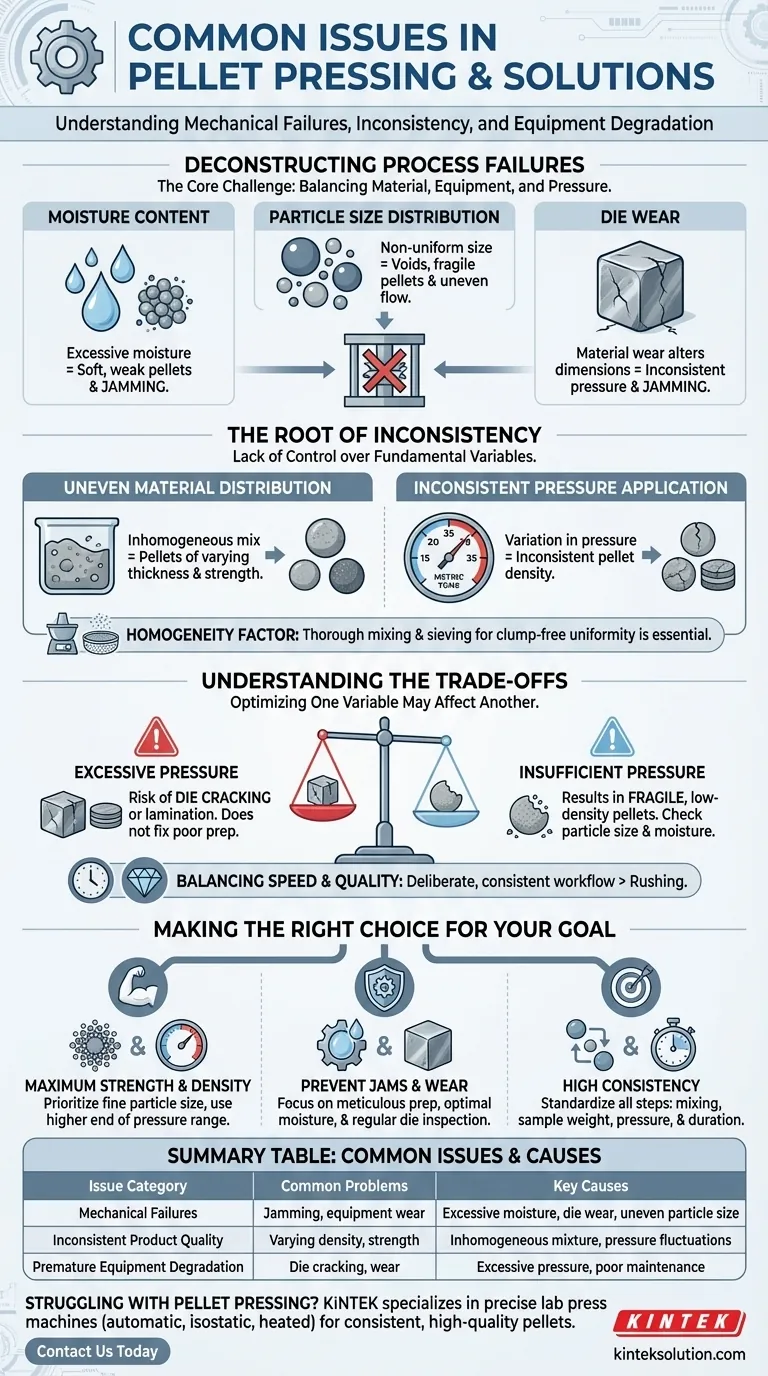

In pellet pressing, most common issues fall into three categories: mechanical failures like jamming, inconsistent product quality, and premature equipment degradation. These problems almost always trace back to a lack of control over the material preparation or the pressing parameters themselves.
The core challenge in pellet pressing is not simply applying force. It is about achieving a delicate equilibrium between your material's properties (particle size, moisture), the condition of your equipment (the die), and the precise application of pressure.
Deconstructing Process Failures
The most visible failures, like jamming, often have multiple underlying causes that must be diagnosed correctly to be solved.
The Role of Moisture Content
Excessive moisture in your mixture can prevent particles from properly locking together under pressure. This can lead to a soft, weak pellet that crumbles or causes the material to extrude improperly, resulting in a jam.
The Impact of Particle Size
A non-uniform particle size distribution is a primary source of failure. Particles that are too large create voids, leading to low-density, fragile pellets. An improperly sieved mix can also cause material to flow unevenly into the die, leading to jams.
The Effect of Die Wear
Over time, the inner surface of the pressing die will wear down. This material wear changes the friction and dimensions of the die chamber, altering the pressure required and often leading to jamming or pellets with inconsistent surface finishes.
The Root of Inconsistency
When pellets vary in size, density, or strength, it indicates a lack of control over the fundamental variables of the process.
Uneven Material Distribution
If your starting mixture is not perfectly homogeneous, different parts of the material will have different densities and compression characteristics. This directly results in pellets of varying thickness and strength.
Inconsistent Pressure Application
The pressure applied, typically between 15 to 35 metric tons, is the single most critical factor for pellet density and strength. Any variation in the applied pressure from one cycle to the next will produce inconsistent pellets.
The Homogeneity Factor
Achieving a clump-free, uniform sample through thorough mixing and sieving is non-negotiable. This step ensures that every pellet is formed from material with identical properties, which is the foundation of consistency.
Understanding the Trade-offs
Optimizing one variable often comes at the expense of another. Understanding these compromises is key to mastering the process.
The Risk of Excessive Pressure
While high pressure can increase pellet density, it also raises the risk of cracking the die or causing lamination, where the pellet separates into layers. It may not compensate for poor material preparation.
The Problem with Insufficient Pressure
Using too little pressure will result in a fragile, low-density pellet that may not withstand handling or its intended application. It is often a sign that particle size or moisture content is not optimized.
Balancing Process Speed and Quality
Rushing the process by loading the die too quickly or applying pressure unevenly can ruin an otherwise perfect sample. A deliberate, consistent workflow is more important than raw speed for achieving high-quality results.
Making the Right Choice for Your Goal
To improve your results, align your preparation and pressing strategy with your specific objective.
- If your primary focus is maximum strength and density: Prioritize a fine, uniform particle size through meticulous sieving and apply pressure toward the higher end of your tested range.
- If your primary focus is preventing jams and equipment wear: Concentrate on meticulous material preparation, ensuring optimal moisture and homogeneity, and implement a schedule for die inspection.
- If your primary focus is achieving high consistency: Standardize your entire workflow, from the mixing protocol and sample weight to the exact pressure and duration of the press cycle.
Ultimately, mastering these variables transforms pellet pressing from a source of frustration into a reliable and repeatable scientific process.
Summary Table:
| Issue Category | Common Problems | Key Causes |
|---|---|---|
| Mechanical Failures | Jamming, equipment wear | Excessive moisture, die wear, uneven particle size |
| Inconsistent Product Quality | Varying density, strength | Inhomogeneous mixture, pressure fluctuations |
| Premature Equipment Degradation | Die cracking, wear | Excessive pressure, poor maintenance |
