For X-Ray Fluorescence (XRF) analysis, the most common pressed pellet diameters are 32 mm and 40 mm. These dimensions are standard across the industry because they provide a sufficiently large and uniform surface area to ensure the instrument's X-ray beam fully interrogates the sample, which is critical for generating accurate and repeatable data.
While knowing the standard diameters is a starting point, achieving reliable XRF results depends less on the specific size and more on the consistency of the entire sample preparation process. The ultimate goal is to transform a potentially non-uniform raw material into a perfectly homogeneous disc for analysis.
Why Pellets are Essential for XRF Accuracy
Preparing a sample as a pressed pellet is a foundational technique designed to eliminate common sources of analytical error. It is far more than just a convenient way to handle a sample; it is a method of control.
Overcoming Sample Inhomogeneity
Raw powdered samples can have an uneven distribution of elements. Compressing the powder under high pressure forces the particles together into a dense, solid form, creating a much more uniform sample matrix for the X-ray beam to analyze.
Reducing Particle Size Effects
XRF is a surface-sensitive technique. If a sample contains a mix of large and small particles, the X-rays may interact with them differently, skewing the results. Grinding the sample to a fine, consistent powder before pressing minimizes this effect, ensuring the analysis is representative of the bulk material.
Improving Precision and Durability
Loose powders can settle or shift, and they require a thin film for support that can interfere with the analysis. A solid, durable pellet is stable, easy to handle, and can be archived and re-analyzed later with high precision.
The Anatomy of an XRF Pellet
Creating a high-quality pellet is a multi-step process where each stage plays a critical role in the final analytical quality.
The Starting Material
The process begins by grinding or milling the raw sample (such as rock, ore, or cement) into a very fine powder. Achieving a suitable and consistent fineness is the first step toward a reliable measurement.
The Role of the Binder
This fine powder is then thoroughly mixed with a binding agent. The binder, often a wax-based powder, helps the sample particles adhere to one another during compression, resulting in a durable, crack-free pellet.
The Importance of Pressure
The mixture is placed into a pellet die and compressed using a press, typically at pressures between 15 and 40 tons. This high pressure creates the compact, dense structure that is ideal for XRF analysis.
The Final Diameter: 32mm vs. 40mm
The choice between 32mm and 40mm simply ensures the sample surface is larger than the instrument's X-ray beam mask. This prevents the beam from hitting the edge of the pellet or the sample holder, which would introduce significant analytical error. Both sizes accomplish this goal effectively for most standard XRF spectrometers.
Understanding the Trade-offs: The Pressing Method
The equipment used to create the pellet directly impacts workflow efficiency and the ultimate consistency of your results.
Manual Presses
These are the most affordable option, making them ideal for academic labs or low-throughput environments. However, the pressure applied is dependent on the operator, which can introduce variability between pellets and require more time and effort to achieve consistency.
Hydraulic Presses
Hydraulic presses are the industry workhorse, offering excellent efficiency and high throughput. They allow for precise and repeatable pressure application, leading to highly consistent pellets with less operator dependency than a manual press.
Automated Presses
For high-throughput industrial quality control, automated presses provide the highest level of consistency with minimal operator intervention. They integrate the dosing, pressing, and labeling of pellets into a single workflow, maximizing repeatability and sample throughput at a higher initial cost.
Making the Right Choice for Your Goal
Your choice of equipment and process depends on your specific analytical needs, from sample volume to required precision.
- If your primary focus is research with varied samples: A manual or small hydraulic press provides the necessary flexibility and cost-effectiveness for a non-routine workload.
- If your primary focus is routine industrial quality control: A hydraulic or automated press is essential for achieving the high throughput and exceptional consistency required for reliable process monitoring.
- If your primary focus is achieving maximum precision: Your priority should be a strictly controlled protocol for grinding time, binder ratio, and applied pressure, regardless of the press type you use.
Ultimately, consistent sample preparation is the foundation of trustworthy XRF data.
Summary Table:
| Aspect | Details |
|---|---|
| Common Pellet Diameters | 32 mm, 40 mm |
| Key Benefits | Homogeneous sample, reduced particle effects, improved precision |
| Preparation Steps | Grinding, binding, pressing (15-40 tons) |
| Press Types | Manual, Hydraulic, Automated |
Upgrade your XRF analysis with KINTEK's reliable lab press machines! Whether you need an automatic lab press, isostatic press, or heated lab press, our equipment ensures consistent pellet preparation for accurate results. Serving laboratories in research and quality control, we help you achieve superior data precision and efficiency. Contact us today to discuss your needs and boost your lab's performance!

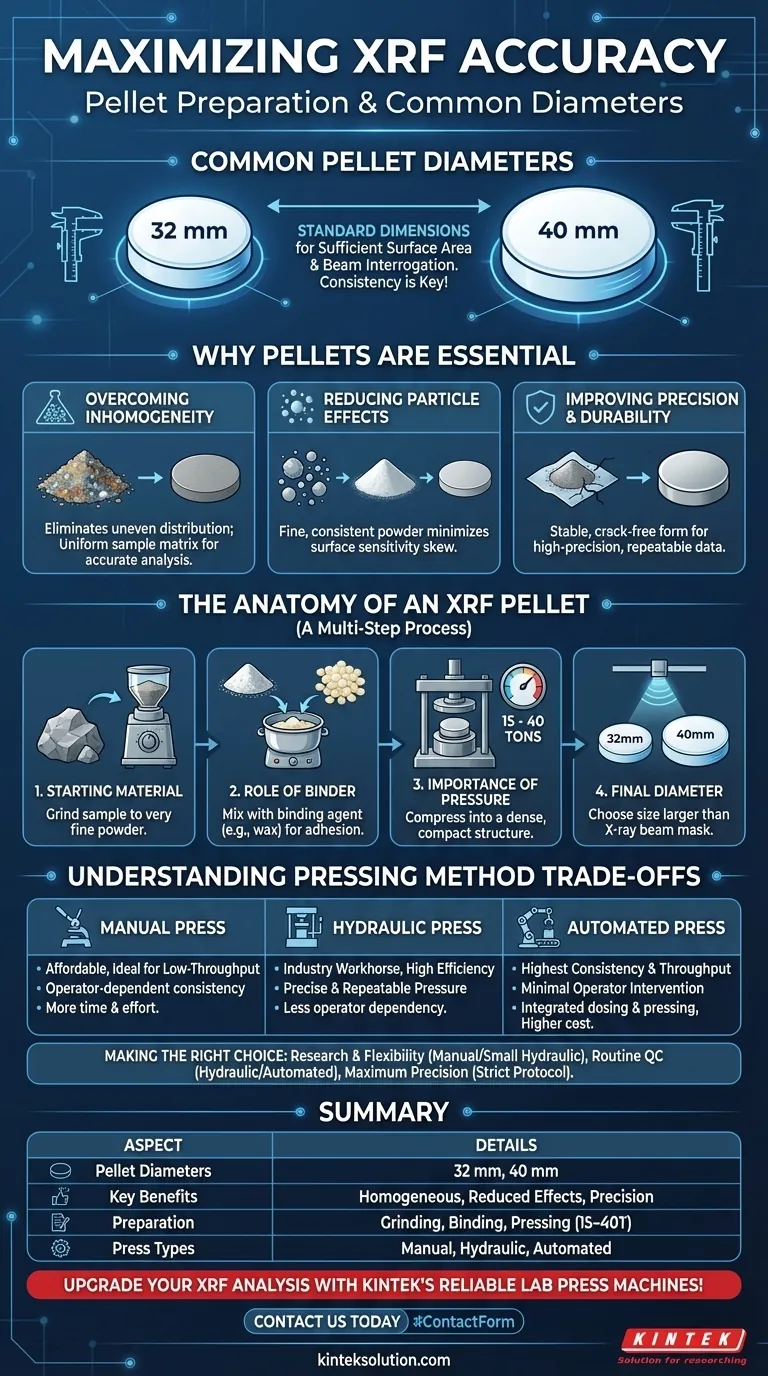

Visual Guide
