In the electronics industry, a hot press is a foundational tool used for three primary functions: laminating multilayer circuit boards, encapsulating sensitive components for protection, and forming thermal interface materials to manage heat. It works by applying precise, uniform heat and pressure to bond, mold, or cure materials, which is essential for the structural integrity and reliability of modern electronic assemblies.
The core challenge in electronics isn't just placing components, but ensuring they are physically bonded, environmentally protected, and thermally managed. A hot press is the definitive solution, providing the controlled high-pressure, high-temperature environment needed to create durable, multilayered, and reliable electronic devices.
Core Applications in Electronics Production
The precision of a hot press makes it indispensable for creating the dense, complex electronics that power our world. Its applications go beyond simple assembly, directly contributing to the device's performance and lifespan.
Lamination of Multilayer PCBs
A modern Printed Circuit Board (PCB) is rarely a single layer. It is often a complex sandwich of multiple layers of conductive copper traces and insulating substrates.
A hot press is used to laminate these layers together. It heats and compresses the stack, causing the resin in the "prepreg" insulating material to flow, cure, and permanently bond the layers into a single, solid, and highly reliable board.
Component Encapsulation
Sensitive integrated circuits (ICs) and other electronic components must be protected from moisture, vibration, physical shock, and other environmental hazards.
Using a process called transfer molding, a hot press melts and injects a thermosetting polymer (like an epoxy compound) into a mold containing the component. The heat and pressure cure the polymer, creating a hard, protective shell—or encapsulation—around the sensitive electronics.
Creating Thermal Interface Materials (TIMs)
High-performance components like CPUs and power transistors generate immense heat. This heat must be efficiently transferred to a heat sink to prevent overheating and failure.
A hot press is used to manufacture and bond thermal interface materials—such as thermal pads or phase-change materials—that fill the microscopic air gaps between the component and its heat sink. This creates a highly efficient pathway for heat to escape.
The Role in Research and Material Science
Beyond the production line, the hot press is a critical instrument for innovation and quality control in electronics research and development (R&D).
Prototyping and Small-Scale Production
Laboratory-scale hot presses are perfect for R&D. They allow engineers to test new circuit board stack-ups, experiment with novel encapsulation compounds, or develop unique thermal solutions without committing to expensive, large-scale production tooling.
This capability is fundamental to lean manufacturing and rapid prototyping, enabling faster innovation cycles.
Material Characterization and Testing
Before any new substrate, adhesive, or polymer can be approved for production, its behavior under stress must be understood.
Researchers use hot presses to test the mechanical and thermal properties of these materials. By subjecting samples to the same heat and pressure they will face in manufacturing, engineers can validate their strength, durability, and reliability.
Developing Advanced Electronic Materials
The hot press is also used at the frontier of material science. This includes sintering advanced ceramics like silicon nitride or boron carbide, which serve as high-performance substrates for power electronics and RF devices.
It is also used in powder metallurgy to consolidate novel metals and alloys for specialized components in aerospace and other high-reliability sectors.
Understanding the Trade-offs
While powerful, the hot press process comes with specific considerations that every team must weigh.
Precision vs. Throughput
Hot pressing is typically a batch process, offering exceptional control over pressure, temperature, and time. However, this can be slower than continuous processes like roll-to-roll lamination. The primary trade-off is often between the highest level of precision and the highest manufacturing speed.
Material Compatibility
The process is inherently limited to materials that can withstand and are designed for high-temperature and high-pressure processing. Component and substrate selection must be done carefully to ensure compatibility with the required lamination or molding cycles.
Tooling and Capital Costs
Industrial hot presses and the custom molds or platens required for specific applications represent a significant capital investment. The design and fabrication of this tooling require expertise and add to the upfront cost, especially for complex or non-standard parts.
Making the Right Choice for Your Goal
To apply this technology effectively, align its capabilities with your primary objective.
- If your primary focus is mass-producing standard PCBs: Your main application will be the lamination of multilayer boards, focusing on achieving consistency and high yield.
- If your primary focus is developing ruggedized or high-power electronics: You will leverage hot pressing for robust component encapsulation and for creating highly efficient thermal interface solutions.
- If your primary focus is R&D or material science: A laboratory hot press is your essential tool for testing new materials, prototyping designs, and validating performance under thermal and mechanical stress.
Ultimately, understanding these applications empowers you to use the hot press not just as a tool, but as a strategic asset for creating more reliable and innovative electronic devices.

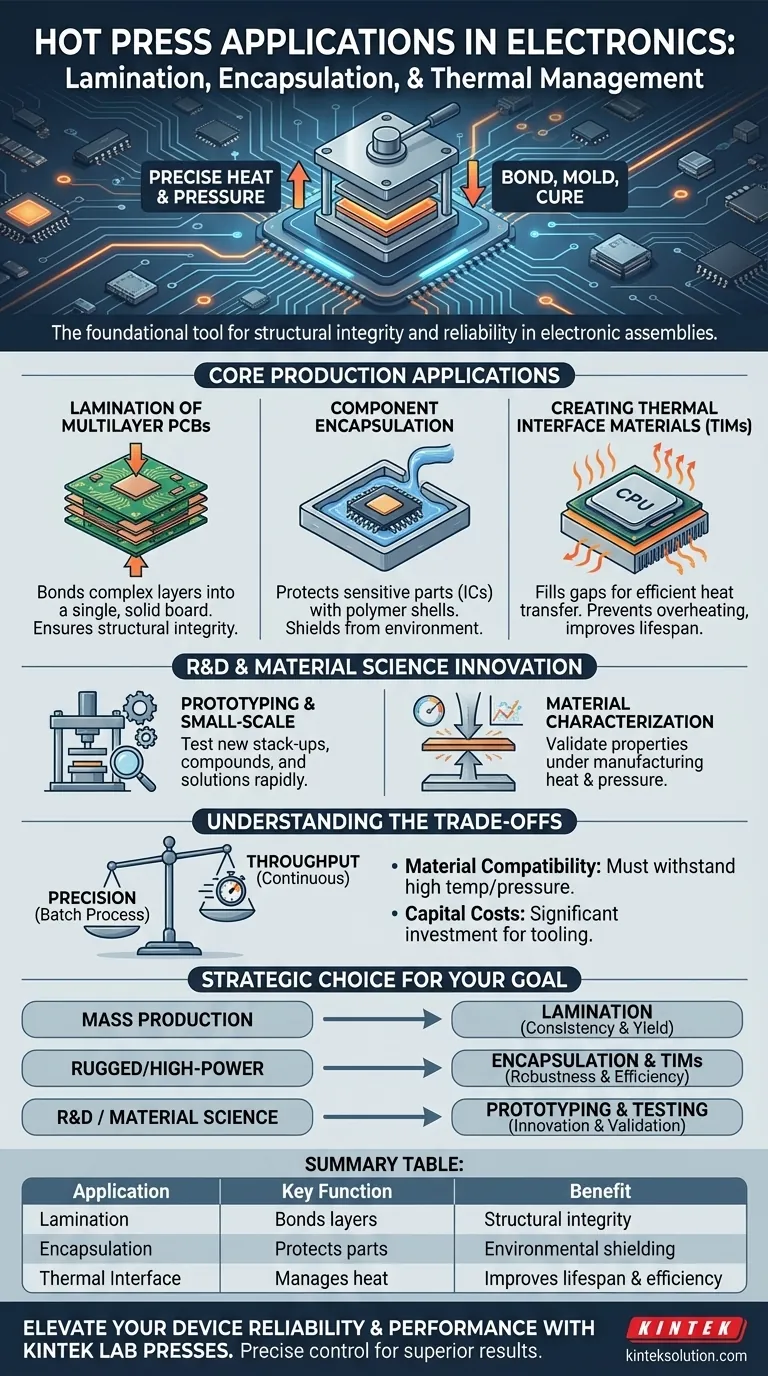

Summary Table:
| Application | Key Function | Benefit |
|---|---|---|
| Lamination of Multilayer PCBs | Bonds layers with heat and pressure | Ensures structural integrity and reliability |
| Component Encapsulation | Protects sensitive parts with polymer shells | Shields from environmental hazards |
| Creating Thermal Interface Materials | Manages heat transfer to prevent overheating | Improves device lifespan and efficiency |
