At its core, a frame structure laboratory press offers superior rigidity and stability compared to a column structure design. This fundamental difference leads directly to more reliable operation, lower maintenance needs, and the ability to produce higher quality, more uniform samples under high pressure.

The choice between a frame and column press is a decision about managing mechanical stress. A frame structure contains and distributes force within a solid, monolithic frame, minimizing deflection and ensuring platen parallelism, which is critical for precision applications.

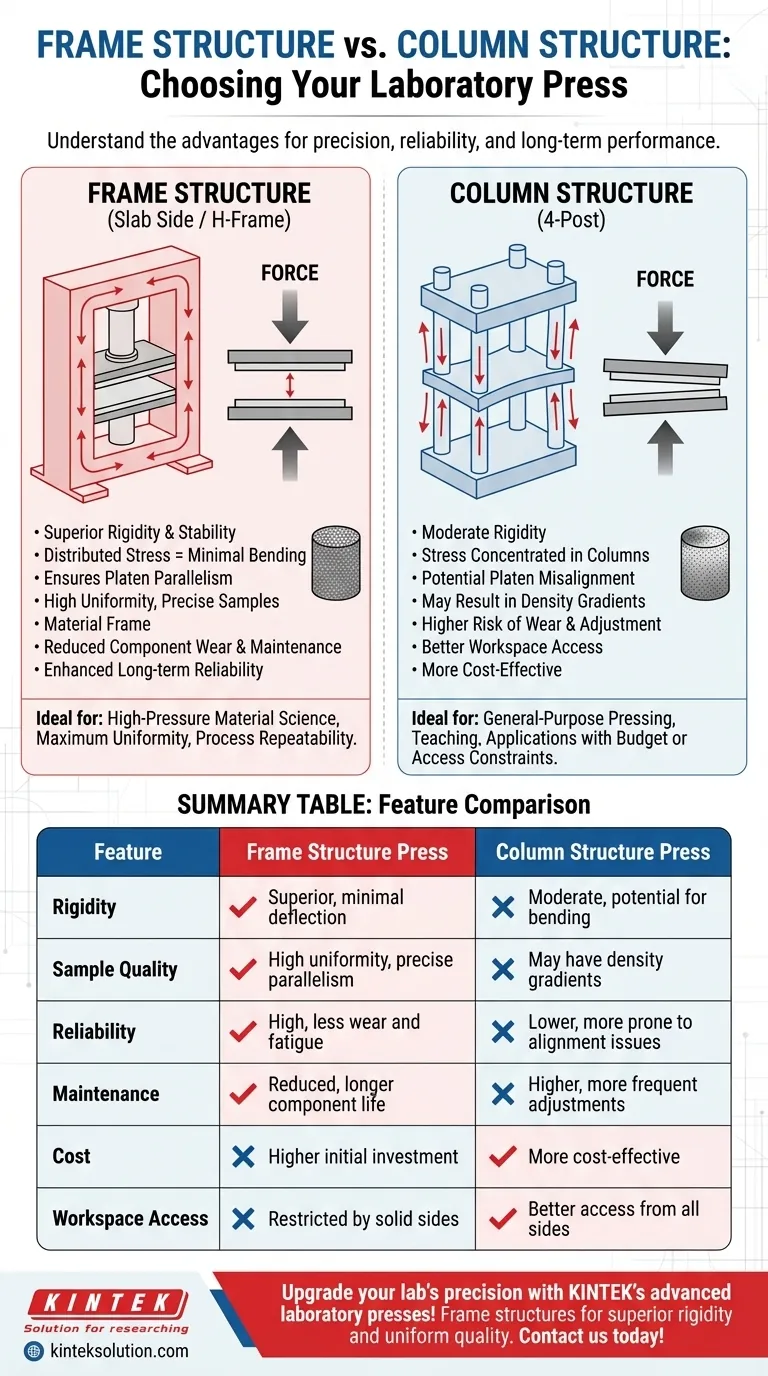

The Fundamental Difference: Stress Distribution and Rigidity

To understand the advantages, you must first understand how each design handles the immense forces involved in pressing. The entire purpose of a press structure is to resist bending and maintain alignment under load.

How a Frame Structure Works

A frame press, often called a "slab side" or "H-frame" press, is constructed from thick, solid plates of steel welded or bolted into a single, rigid rectangular unit.

When force is applied, the stress is distributed throughout this entire monolithic structure. This design is inherently more resistant to deflection, or bending, ensuring the top and bottom platens remain perfectly parallel.

How a Column Structure Works

A column press, also known as a "4-post press," uses two or four cylindrical steel posts to connect the top and bottom crossheads (the "crown" and "bed"). The hydraulic cylinder pushes the moving platen, which is guided by bushings along these posts.

In this design, the tension forces are concentrated entirely in the columns. This can lead to slight stretching of the columns and potential bending of the crossheads under extreme load, which can compromise platen parallelism.

Translating Structure into Performance

The superior rigidity of the frame design directly translates into tangible performance benefits in a laboratory setting.

Superior Precision and Sample Quality

The primary benefit of maintaining platen parallelism is sample uniformity. When pressing powders or creating composite materials, any slight tilting of the platens creates uneven pressure distribution.

This unevenness results in density gradients and internal stresses within your sample. A rigid frame structure minimizes this risk, leading to the "fine and close organizational structures" mentioned, which is critical for materials research, spectroscopy (like KBr pellets), and quality control.

Enhanced Reliability and Uptime

Mechanical stress causes wear and fatigue. Because a frame structure distributes this stress more effectively, its components are subjected to less concentrated strain.

This robust design leads to greater long-term reliability. There is a lower risk of fatigue-related failures in the structural members, and the system's alignment remains true over countless cycles.

Reduced Maintenance Demands

The stability of a frame press has a cascading effect on its components. When the platens and guides are held in precise alignment, there is less eccentric loading on hydraulic seals, guide bushings, and other moving parts.

This reduction in side-loading and uneven wear means components last longer and require less frequent adjustment or replacement, directly lowering the maintenance burden and total cost of ownership.

Understanding the Trade-offs

While a frame press offers significant performance advantages, the column press remains a viable and common choice for valid reasons. Acknowledging these trade-offs is key to making an informed decision.

The Case for a Column Press

Column presses are often more cost-effective to manufacture. They also typically offer better access to the work area from all four sides, which can be a significant ergonomic advantage for certain workflows, such as loading large or awkward samples.

Cost and Manufacturing Complexity

The solid, heavy-plate construction of a frame press requires more raw material and extensive machining to ensure flatness and squareness. This makes them inherently more expensive than a column press of a similar tonnage.

Workspace Access

The solid side walls of a frame press can restrict access to the die space. For applications requiring side-loading or automation, a column press's open design can be a decisive advantage.

Making the Right Choice for Your Application

Ultimately, the best design depends entirely on the demands of your specific work.

  • If your primary focus is high-pressure material science, maximum sample uniformity, or process repeatability: The superior rigidity and precision of a frame structure press is the clear choice.
  • If your primary focus is general-purpose pressing, teaching, or applications where budget and side access are more critical than absolute precision: A well-constructed column press is a highly effective and economical solution.

Choosing the right press is about matching the tool's structural integrity to the precision your scientific goals demand.

Summary Table:

Feature Frame Structure Press Column Structure Press
Rigidity Superior, minimal deflection Moderate, potential for bending
Sample Quality High uniformity, precise parallelism May have density gradients
Reliability High, less wear and fatigue Lower, more prone to alignment issues
Maintenance Reduced, longer component life Higher, more frequent adjustments
Cost Higher initial investment More cost-effective
Workspace Access Restricted by solid sides Better access from all sides
