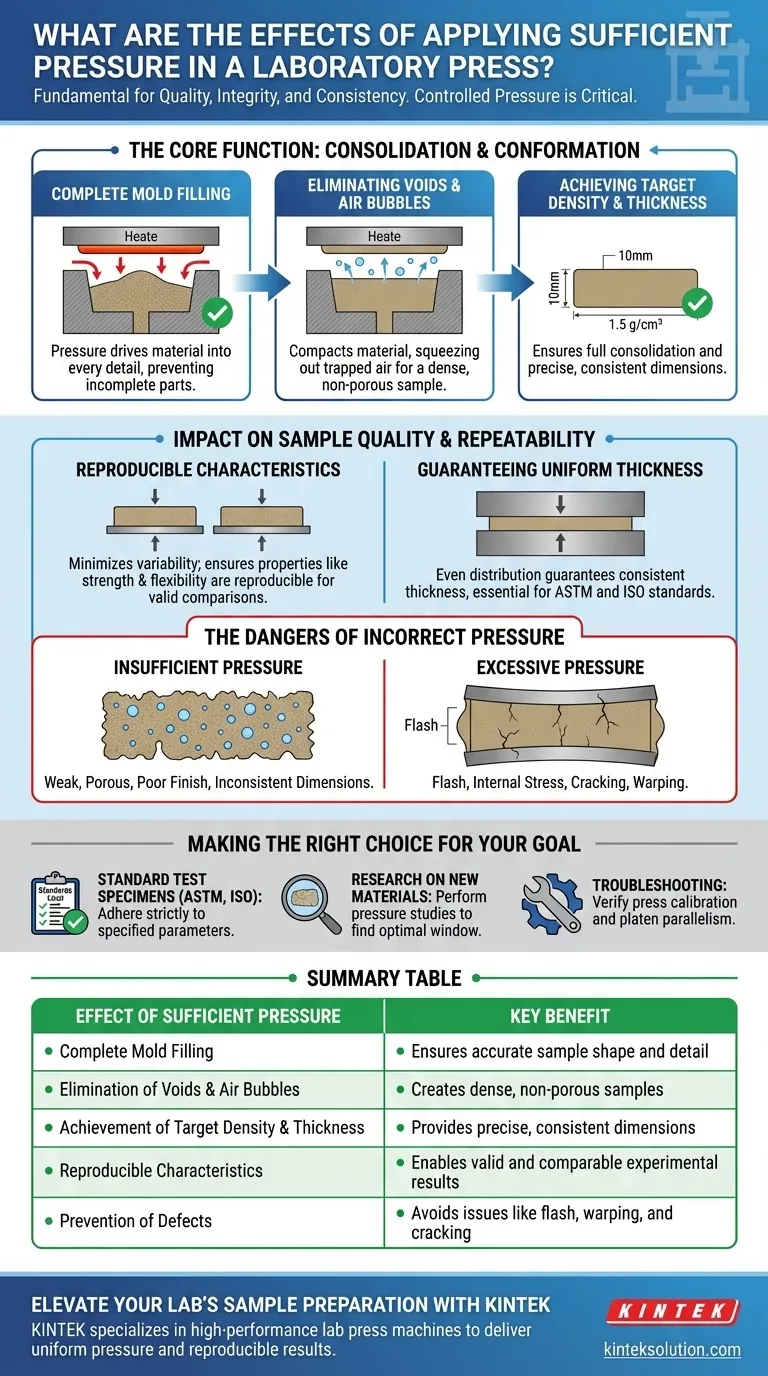

In laboratory press applications, pressure is the fundamental force that dictates the quality and integrity of your final sample. Applying sufficient, controlled pressure is critical for ensuring the material properly conforms to the mold, eliminating internal defects like air bubbles, and preventing material overflow. This control directly leads to samples with reproducible characteristics and a consistent, uniform thickness, which are essential for reliable testing and analysis.
The core challenge is not simply applying force, but applying the correct amount of force. Sufficient pressure achieves full material consolidation and a perfect mold impression, while avoiding the negative consequences of both under-pressurization and over-pressurization.
The Core Function of Pressure: Consolidation and Conformation
The primary role of pressure in a laboratory press is to transform a loose material, like a powder or pellets, into a solid, cohesive sample. This is a process of consolidation and conformation.
Ensuring Complete Mold Filling
Pressure provides the motive force required for the heated, softened material to flow into every detail of the mold cavity. Without adequate pressure, the material may not reach the far corners, resulting in an incomplete or misshapen part.
Eliminating Voids and Air Bubbles
As the material flows, pressure works to compact it, squeezing out trapped air and eliminating voids between particles. This process is essential for creating a dense, non-porous sample with superior mechanical and electrical properties.
Achieving Target Density and Thickness
The final density of the sample is a direct function of the applied pressure. Sufficient pressure ensures the material is fully consolidated, achieving the target density and, consequently, the specified thickness with high precision.
The Impact on Sample Quality and Repeatability
Consistent sample quality is the ultimate goal of using a laboratory press. Pressure control is the single most important variable in achieving this outcome.
Driving Reproducible Characteristics
When you apply the exact same pressure profile to every sample, you minimize variability. This ensures that critical properties—such as tensile strength, flexibility, color, and density—are reproducible from one sample to the next, making your experimental results valid and comparable.
Guaranteeing Uniform Thickness
Even pressure distribution across the entire surface of the mold is crucial. This guarantees that the final sample has a consistent thickness, free from thin spots or warpage, which is a mandatory requirement for most ASTM and ISO testing standards.
Understanding the Trade-offs: The Dangers of Incorrect Pressure
Achieving the "sufficient" pressure level is a balancing act. Deviating in either direction introduces distinct and predictable problems.
The Problem of Insufficient Pressure
Applying too little pressure is a common cause of failure. The results are samples that are porous, weak, have a poor surface finish, and suffer from inconsistent dimensions. These defects render the sample useless for any meaningful analysis.
The Risk of Excessive Pressure
More pressure is not always better. Over-pressurization can force material to squeeze out between the mold halves, a defect known as "flash," which requires tedious cleanup and wastes material. It can also induce internal stress in the sample, leading to cracking or warping over time, and in extreme cases, can damage the mold or the press itself.
Making the Right Choice for Your Goal
Calibrating the correct pressure is specific to your material, mold design, and objective. Use the following guidelines to inform your process.
- If your primary focus is creating standard test specimens (e.g., ASTM, ISO): Adhere strictly to the pressure, temperature, and time parameters specified in the test method to ensure your results are valid and comparable to others.
- If your primary focus is research on new materials: Perform a pressure study by creating samples at varying pressures to identify the optimal window that yields the desired characteristics without introducing defects.
- If your primary focus is troubleshooting inconsistent results: Your first step should be to verify the press's pressure gauge calibration and ensure the platens are perfectly parallel to rule out equipment-related inconsistencies.
Mastering pressure control is the key to transitioning from inconsistent attempts to reliable, expert-level sample preparation.
Summary Table:
| Effect of Sufficient Pressure | Key Benefit |
|---|---|
| Complete Mold Filling | Ensures accurate sample shape and detail |
| Elimination of Voids and Air Bubbles | Creates dense, non-porous samples |
| Achievement of Target Density and Thickness | Provides precise, consistent dimensions |
| Reproducible Characteristics | Enables valid and comparable experimental results |
| Prevention of Defects | Avoids issues like flash, warping, and cracking |
