What Are The Limitations Of The Kbr Pellet Method And How Can They Be Mitigated? Master Ftir Analysis With Expert Tips

The primary limitations of the KBr pellet method for FTIR analysis are its extreme sensitivity to moisture, the critical need for proper particle size, and the precise control of pressure during pellet formation. Each of these factors can introduce significant artifacts into your spectrum, but they can be systematically controlled with proper technique.

The quality of a KBr pellet spectrum is a direct reflection of physical, not chemical, preparation. Mastering this technique requires controlling three variables: eliminating moisture, ensuring uniform particle size to prevent light scattering, and applying the correct pressure to create a transparent matrix.

What are the limitations of the KBr pellet method and how can they be mitigated? Master FTIR Analysis with Expert Tips

The Principle of the KBr Pellet

Creating an Infrared "Window"

The KBr pellet method is effective because potassium bromide (KBr), an alkali halide, is transparent to infrared radiation and becomes plastic under high pressure.

When finely ground with a sample and compressed in a die, the KBr powder flows and fuses. This process forms a solid, glass-like disc that encases the sample particles in a transparent matrix, allowing IR light to pass through for analysis.

The Importance of Concentration

The sample must be diluted significantly within the KBr. A typical ratio is 1 part sample to 100-200 parts KBr, resulting in a final concentration of 0.5% to 1.0%.

Too much sample will create an opaque pellet, causing most IR peaks to be completely absorbed and appear "flat-topped," rendering the spectrum useless.

Deconstructing the Common Failure Points

Successfully creating a KBr pellet means avoiding the common pitfalls that degrade spectral quality. Each failure point has a clear physical cause and a corresponding solution.

Failure Point 1: Moisture Contamination

KBr is hygroscopic, meaning it readily absorbs moisture from the atmosphere. This is the most common source of error.

Water has very strong IR absorption bands (a very broad peak around 3400 cm⁻¹ and a sharp peak around 1640 cm⁻¹). These can easily obscure important sample peaks in the same regions, particularly O-H and N-H stretching vibrations.

To mitigate this, always store KBr powder in a desiccator or drying oven. If possible, prepare the pellet in a low-humidity environment, such as under a heat lamp or inside a glove box.

Failure Point 2: Poor Particle Size

If sample particles are larger than the wavelength of the IR radiation, the light will scatter instead of passing through. This phenomenon, known as the Christiansen effect, is a major source of poor-quality spectra.

Light scattering results in a severely sloping baseline and distorted, asymmetric peak shapes, making accurate identification and analysis impossible.

The solution is to grind the sample and KBr thoroughly. Use a clean agate mortar and pestle to grind the mixture until it has a fine, consistent, flour-like texture. The goal is to reduce particle size to a few micrometers.

Failure Point 3: Incorrect Pressing Technique

The pressure applied to form the pellet is critical. The goal is a perfectly transparent, solid disc.

Too little pressure results in a cloudy, soft, or crumbly pellet that will scatter light and fall apart easily.
Too much pressure or applying it too quickly can cause the pellet to crack or become opaque due to stress fractures.

For best results, use a hydraulic press with a pressure gauge. Apply pressure slowly and evenly, holding it for a few minutes to allow the KBr to fully flow and fuse before slowly releasing. Manual presses are cheaper but make it difficult to achieve consistent pressure between samples.

Understanding the Trade-offs

No technique is perfect. Understanding the pros and cons of the KBr method helps you decide when to use it and when to choose an alternative.

Advantage: High Sensitivity and Versatility

When prepared correctly, KBr pellets offer excellent sensitivity, allowing for the analysis of very small amounts of material. The technique is versatile and suitable for a wide range of solid organic and inorganic compounds.

Disadvantage: High Dependence on Operator Skill

The primary drawback is that the quality of the result is highly dependent on the operator's technique. A small mistake in grinding, weighing, or pressing can ruin the analysis, leading to poor reproducibility if not performed with care.

The Alternative: Attenuated Total Reflectance (ATR)

For many applications, Attenuated Total Reflectance (ATR) has become a more popular choice. ATR-FTIR requires almost no sample preparation—the solid is simply pressed against a crystal. It is faster and far more reproducible, but may be less sensitive for detecting trace components.

How to Apply This to Your Project

If your primary focus is high-quality quantitative analysis: You must prioritize consistency. Use a calibrated hydraulic press, precisely weigh your sample and KBr for every pellet, and standardize your grinding time and technique.
If your primary focus is rapid qualitative identification: The KBr method is effective, but you must remain vigilant for artifacts. Always question if a broad peak around 3400 cm⁻¹ is from your sample or from water contamination.
If you consistently struggle with reproducibility or sloping baselines: Consider switching to an ATR accessory. It eliminates the variables of pellet preparation and provides more consistent results with less effort.

Mastering these physical preparation steps transforms the KBr method from a frustrating exercise into a powerful and sensitive analytical tool.

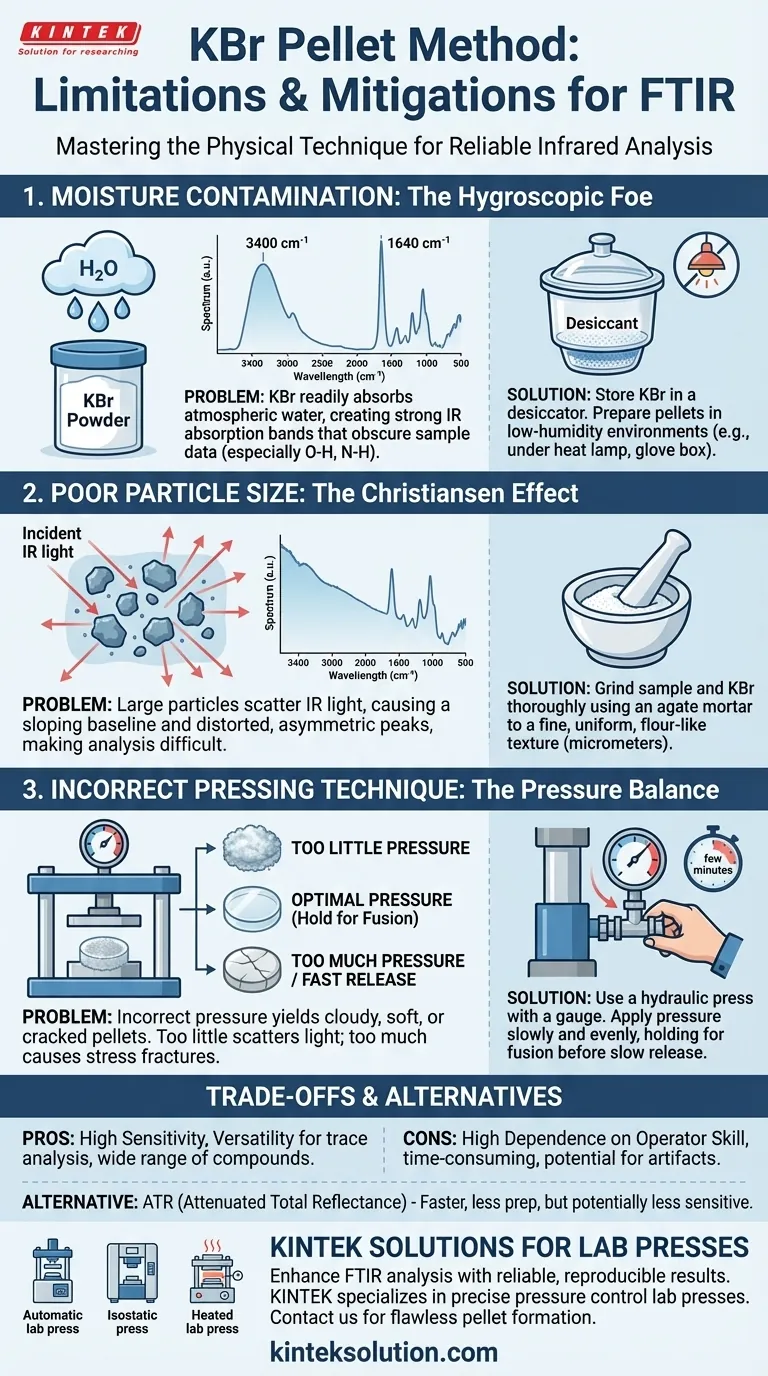

Summary Table:

Limitation	Cause	Mitigation Strategy
Moisture Contamination	KBr is hygroscopic, absorbing water that obscures IR peaks	Store KBr in a desiccator; prepare pellets in low-humidity environments
Poor Particle Size	Large particles cause light scattering, leading to sloping baselines	Grind sample and KBr thoroughly to a fine, uniform texture
Incorrect Pressing Technique	Improper pressure results in cloudy or cracked pellets	Use a hydraulic press for even pressure application and hold for fusion
