In a heated lab press, the platens are far more than just heated surfaces; they are the core components responsible for transferring both precise thermal energy and mechanical force to your sample. Key specifications like their material (e.g., chrome-plated steel), thickness, and the sophistication of their temperature control system directly dictate the uniformity, consistency, and ultimate success of your experimental work.
The performance of a heated lab press is fundamentally defined by its platens. Understanding their specifications is not a minor detail—it is the primary factor in achieving the consistent, high-quality sample preparation necessary for reliable experimental data.
The Core Function: Delivering Uniform Heat and Force
The entire purpose of a heated press is to create a controlled, repeatable environment. The platens are the point of contact where this control is executed.
Why Uniformity is Non-Negotiable
In applications from polymer science to spectroscopy, even minor temperature variations across the sample can compromise results. Inconsistent heating can lead to incomplete curing, uneven film thickness, or flawed pellets for X-Ray Fluorescence (XRF) analysis.
High-quality platens are engineered to eliminate these thermal gradients, ensuring that every part of your sample experiences the exact same conditions.
The Role of Thickness
Platen thickness is a critical factor in achieving thermal stability. A thicker platen acts as a better heat reservoir, distributing energy more evenly and resisting temperature fluctuations when a cooler sample is introduced.
While thinner platens may heat faster, thicker ones provide a more stable and uniform temperature profile, which is essential for process consistency.
Key Platen Specifications Explained
The specifications of your platens determine their performance characteristics and suitability for different applications.
Material Composition
Platens are typically made from durable, thermally conductive materials. Chrome-plated steel is a common choice, offering excellent durability and corrosion resistance.
For specialized applications, presses may feature interchangeable platens made of stainless steel, aluminum for rapid heating, or even ceramic for unique thermal or electrical insulation properties.
Size and Configuration
Platen size dictates the maximum dimensions of your sample. Larger platens can accommodate bigger workpieces or allow for the simultaneous processing of multiple smaller samples, increasing throughput.
Some systems also offer different working modes, such as rotary or mobile platforms, which leverage specialized platen configurations for specific workflows.
Advanced Temperature Control
Modern presses use sophisticated technology for precise thermal regulation. Pulse heating technology allows for rapid adjustments with sampling frequencies as low as 0.1 seconds.
Features like multi-stage temperature rise enable you to program complex heating profiles specific to your material, while real-time temperature curve displays provide critical feedback for process monitoring and validation.
Understanding the Trade-offs and Safety
Selecting the right platen involves balancing competing factors and understanding the integrated system.
Speed vs. Stability
There is a direct trade-off between heating speed and temperature uniformity. An aluminum platen will reach its setpoint quickly but may be more susceptible to temperature drops when a sample is loaded. A thick steel platen will heat more slowly but provides superior thermal stability during the pressing cycle.
Versatility vs. Specialization
A press with interchangeable platens offers maximum versatility for a multi-purpose lab. However, a system with fixed, highly-specialized platens may offer superior performance for a single, repetitive application.
Integrated Safety Systems
The platen area is central to the press's safety design. Features like closed molding areas contain potentially harmful fumes released from the heated sample. Interlocked protection doors prevent operator access to the hot, high-pressure platens during operation, ensuring a safe working environment.
Making the Right Choice for Your Application
Your choice of platen specifications should be driven directly by your primary experimental goals.
- If your primary focus is high-throughput analytical prep (e.g., XRF): Prioritize a system with robust automation and platens optimized for rapid, consistent heating and cooling cycles.
- If your primary focus is polymer research or materials development: Select a press with thick steel platens and advanced multi-stage temperature programming for maximum process control and thermal uniformity.
- If your primary focus is versatility for diverse projects: Opt for a model with interchangeable platens (steel, aluminum, etc.) to ensure you can adapt to a wide range of material requirements.
Ultimately, understanding your platen specifications empowers you to control your experimental variables and produce consistently reliable results.
Summary Table:
| Specification | Importance | Common Options |
|---|---|---|
| Material | Determines durability, conductivity, and corrosion resistance | Chrome-plated steel, stainless steel, aluminum, ceramic |
| Thickness | Affects thermal stability and heating uniformity | Thicker for stability, thinner for speed |
| Temperature Control | Ensures precise heat application and repeatability | Pulse heating, multi-stage programming, real-time displays |
| Size and Configuration | Dictates sample capacity and workflow efficiency | Various sizes, interchangeable or fixed platens |
Ready to enhance your lab's precision and efficiency? KINTEK specializes in lab press machines, including automatic lab presses, isostatic presses, and heated lab presses, designed to deliver uniform heat and force for reliable sample preparation. Whether you're in polymer research, XRF analysis, or need versatile solutions, our advanced platens ensure consistent results. Contact us today to discuss your specific needs and discover how KINTEK can support your laboratory's success!

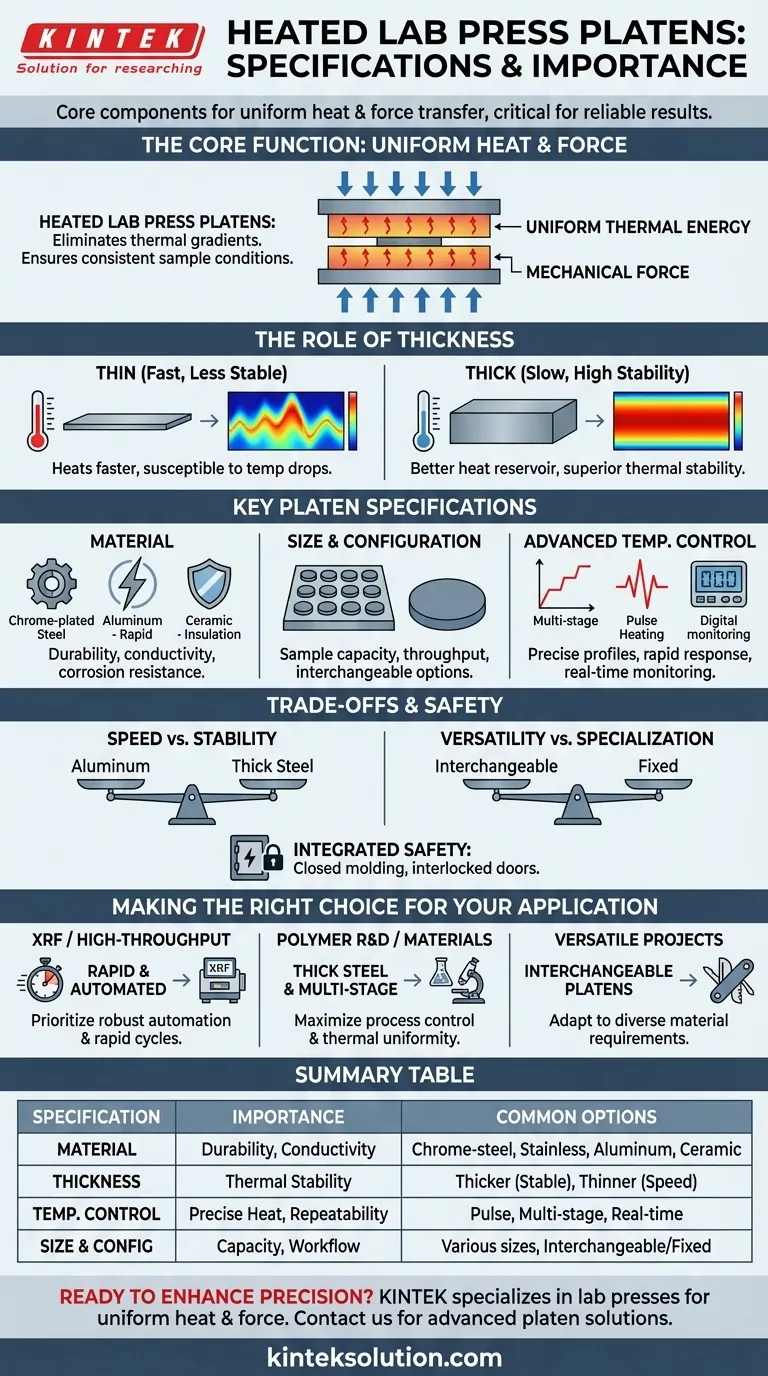

Visual Guide
