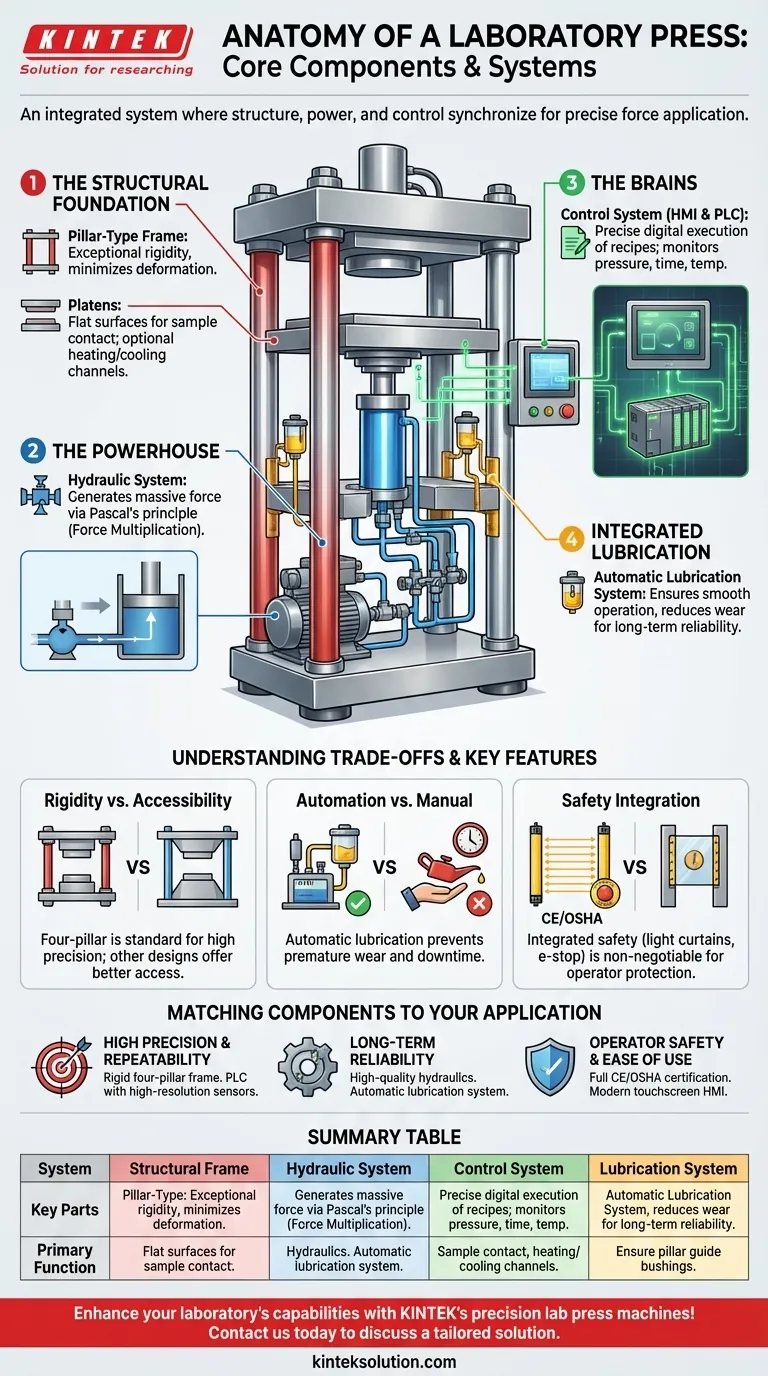

At its core, a laboratory press is constructed from four primary systems working in concert: a rigid structural frame, a high-force hydraulic system, a precise control system, and an integrated lubrication system. These components are engineered not just to exist, but to deliver the accuracy, durability, and safety required for demanding research and quality control applications.
A laboratory press is more than just a collection of parts. It is an integrated system where the structural frame, hydraulic power, and electronic controls must be perfectly synchronized to achieve precise, repeatable, and safe force application.
The Structural Foundation: Frame and Platens
The physical structure of the press is responsible for withstanding immense forces without deforming. Its quality is the bedrock of the machine's accuracy.
The Pillar-Type Frame
Most modern laboratory presses use a pillar-type structure. This design consists of thick, solid steel columns that connect the top and bottom sections of the press.
This construction provides exceptional rigidity, minimizing any stretching or bending under load. This rigidity is critical for ensuring the pressing surfaces remain parallel, a key factor for sample uniformity.
Platens: The Point of Application
Platens are the flat, heavy steel plates that make direct contact with the mold or sample. They are guided along the pillars as the press closes.
Their surfaces must be perfectly flat and parallel. For applications involving polymers or composites, platens are often equipped with internal heating and cooling channels for precise temperature control.
The Powerhouse: The Hydraulic System
The hydraulic system is the muscle of the press, responsible for generating and controlling the massive forces required for compaction, molding, and testing.
The Core Principle: Force Multiplication
Hydraulic systems operate on Pascal's principle. A pump applies pressure to hydraulic fluid, which then acts on a large piston (the main ram).
This allows a relatively small motor to generate immense compressive force, often measured in tens or hundreds of tons, with a high degree of control.
Key Hydraulic Components
A typical system includes a hydraulic pump, a main cylinder/ram, and a network of proportional valves. The quality of these components directly impacts the press's ability to apply and hold pressure accurately.
The Brains: Control and Automation
The control system acts as the nervous system of the press, translating operator commands into precise mechanical action.
The User Interface (HMI)
Modern presses utilize a touchscreen control panel, also known as a Human-Machine Interface (HMI). This allows the operator to easily set and monitor critical parameters.
These parameters include target pressure, pressing time, temperature ramps, and decompression rates.
The PLC (Programmable Logic Controller)
Behind the HMI is the PLC, the true brain of the machine. This industrial computer executes the pressing "recipe" with digital precision.
The PLC receives commands from the HMI and data from sensors, then precisely manipulates the hydraulic valves and heaters to ensure the process is repeatable every single time.
Understanding the Trade-offs and Key Features
While the core components are similar, their implementation determines the press's capabilities, reliability, and cost.
Frame Rigidity vs. Accessibility
A four-pillar design offers excellent rigidity and is the standard for high-precision work. However, other designs might offer better access to the pressing area from the sides, which can be a trade-off for certain automated workflows.
Automation and Lubrication
An automatic lubrication system, as mentioned in manufacturing standards, is a critical feature for reliability. It consistently lubricates the guide bushings on the pillars, preventing premature wear and ensuring smooth travel.
Presses without this feature require frequent manual maintenance, increasing the risk of downtime and inconsistent performance due to human error.
Safety System Integration
Compliance with CE or OSHA safety standards is non-negotiable. This involves more than just a physical guard. It means the control system is integrated with safety components like light curtains, two-hand controls, and emergency stop circuits. These features ensure the press operates safely and protects the user from harm.
Matching Components to Your Application
Choosing a press means matching its components to your primary goal.
- If your primary focus is high precision and repeatability: Prioritize a press with a highly rigid four-pillar frame and a sophisticated PLC-based control system with high-resolution pressure and position sensors.
- If your primary focus is long-term reliability: Look for high-quality hydraulic components from reputable brands and ensure the press includes an automatic lubrication system.
- If your primary focus is operator safety and ease of use: Insist on full CE/OSHA certification and a modern touchscreen HMI that simplifies complex pressing cycles.
Understanding how these core components contribute to performance empowers you to select a machine that is a true asset to your laboratory work.
Summary Table:
| Component System | Key Parts | Primary Function |
|---|---|---|
| Structural Frame | Pillars, Platens | Provides rigidity and parallel surfaces for uniform force application |
| Hydraulic System | Pump, Cylinder, Valves | Generates and controls high compressive force using Pascal's principle |
| Control System | HMI, PLC, Sensors | Enables precise setting and monitoring of pressure, time, and temperature |
| Lubrication System | Automatic Lubricators | Ensures smooth operation and reduces wear for long-term reliability |
