In industrial manufacturing, hydraulic presses are the go-to tool for producing components where failure is not an option. They are used to create mission-critical parts for aerospace, automotive, and medical applications, including high-performance turbine blades, durable engine components, and biocompatible medical implants.
The immense power of a hydraulic press is secondary to its true value: the ability to deliver precisely controlled force throughout its entire stroke. This control is what allows for the shaping of complex, high-strength materials into flawless components that demand ultimate reliability.
Why Controlled Force is the Deciding Factor
A hydraulic press operates on a simple principle known as Pascal's Law, where a small force applied to a confined fluid generates a much larger force. However, its industrial advantage comes from the precise control this system allows.
Full Tonnage at Any Point
Unlike mechanical presses that deliver maximum force only at the bottom of their stroke, a hydraulic press can apply full, sustained pressure at any point. This is critical for processes that require slow, deliberate forming of the material.
Unmatched Versatility
The stroke length, speed, and pressure are all fully programmable. This adaptability allows a single press to perform a wide range of operations, from deep drawing of complex shapes to coining surfaces for a perfect finish.
Key Manufacturing Processes Enabled by Hydraulic Presses
The combination of power and control makes hydraulic presses uniquely suited for a variety of demanding forming and shaping processes.
Forging High-Strength Alloys
Components like turbine blades or engine crankshafts are often forged from exotic alloys. These materials become stronger when shaped but can crack if deformed too quickly. A hydraulic press applies slow, consistent pressure, allowing the material's grain structure to flow and align without creating internal defects.
Deep Drawing and Stretching
This process forms flat sheets of metal into deep, three-dimensional shapes, like an automotive oil pan. The sustained pressure from a hydraulic press prevents the material from tearing or wrinkling as it is stretched over a die.
Stamping and Coining
For parts like medical implants, absolute precision and a flawless surface finish are paramount. Stamping and coining operations use immense pressure to precisely shape a part and impart fine details, ensuring every piece is identical and meets strict specifications.
Blanking and Piercing
These are cutting operations where the press punches specific shapes out of a sheet of material or pierces holes in it. The smooth, controlled action of a hydraulic press results in cleaner cuts with less stress on the surrounding material compared to a high-impact mechanical punch.
Understanding the Trade-offs
While incredibly capable, hydraulic presses are not the universal solution for every metal forming task. Understanding their limitations is key to appreciating their specific strengths.
Speed is the Primary Compromise
Hydraulic presses are generally slower than their mechanical counterparts. The time it takes for the hydraulic fluid to flow and build pressure means cycle times are longer, making them less suitable for high-speed, high-volume production of simple stamped parts.
System Complexity and Maintenance
A hydraulic system involves pumps, valves, hoses, seals, and hydraulic fluid. This system requires regular, diligent maintenance to prevent leaks, contamination, and performance degradation.
The Critical Role of Safety Systems
The immense forces involved necessitate robust safety features. All modern hydraulic presses are equipped with pressure relief valves to prevent overloading and interlocking guards that stop the machine if an operator enters a dangerous area.
Making the Right Choice for Your Goal
The decision to use a hydraulic press is driven by the demands of the final component, not just the need for force.
- If your primary focus is high-volume production of simple parts: A faster mechanical press is often a more cost-effective solution.
- If your primary focus is forming complex shapes or difficult materials: The controlled, sustained pressure of a hydraulic press is essential to prevent material failure and achieve the desired geometry.
- If your primary focus is safety-critical components with zero margin for error: A hydraulic press is the definitive choice for the precision, repeatability, and control required in aerospace, medical, and defense applications.
Ultimately, a hydraulic press is chosen when the integrity and precision of the component cannot be compromised.
Summary Table:
| Component Type | Material Used | Key Process | Benefit |
|---|---|---|---|
| Turbine Blades | High-strength alloys | Forging | Aligns grain structure, prevents defects |
| Engine Crankshafts | Exotic alloys | Forging | Enhances strength, ensures durability |
| Medical Implants | Biocompatible materials | Stamping/Coining | Achieves precision and flawless finish |
| Automotive Oil Pans | Sheet metal | Deep Drawing | Prevents tearing and wrinkling |
| Custom Parts | Various metals | Blanking/Piercing | Provides clean cuts with minimal stress |
Ready to elevate your lab's capabilities with precision hydraulic presses? KINTEK specializes in lab press machines, including automatic, isostatic, and heated presses, designed to meet the demanding needs of laboratories in aerospace, automotive, and medical fields. Our equipment ensures controlled force for flawless component production, enhancing reliability and efficiency. Don't compromise on quality—contact us today to discuss how KINTEK can support your critical manufacturing goals!

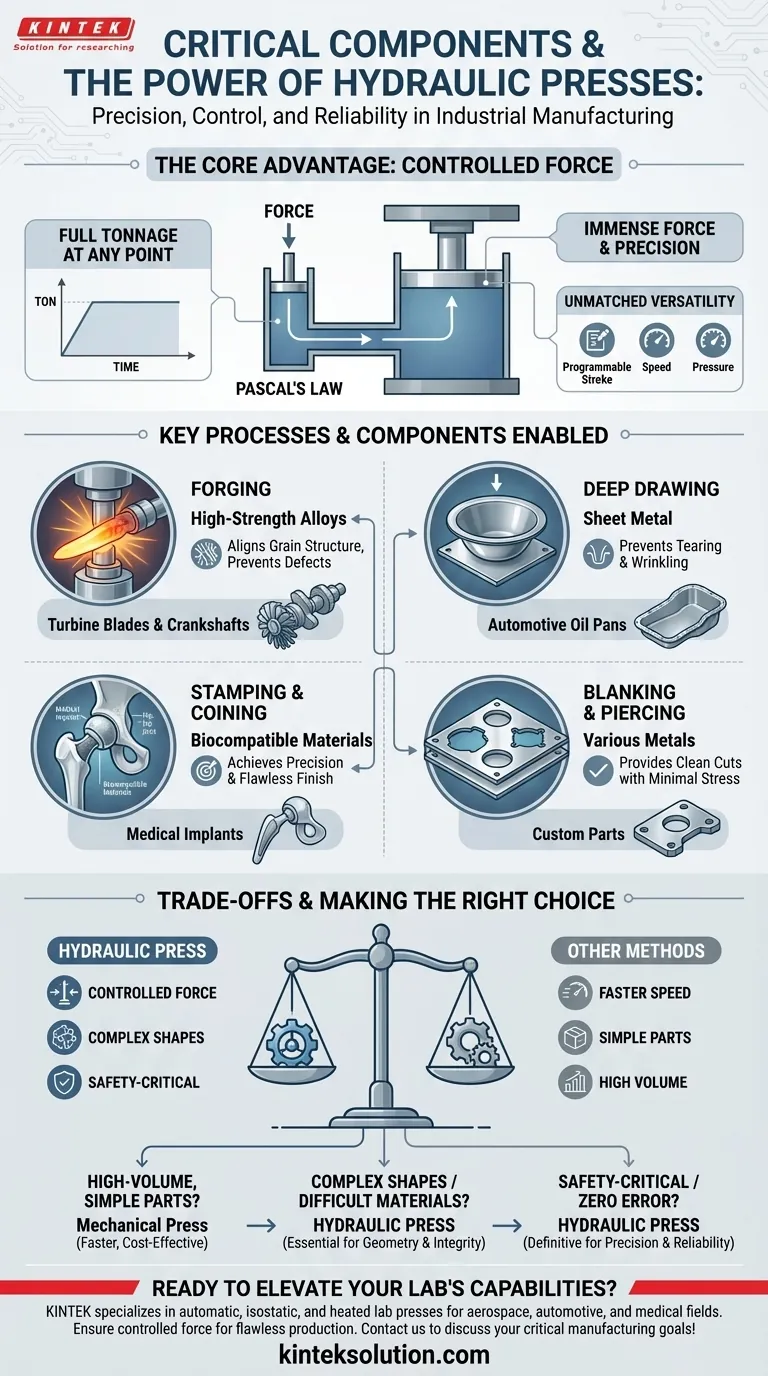

Visual Guide
